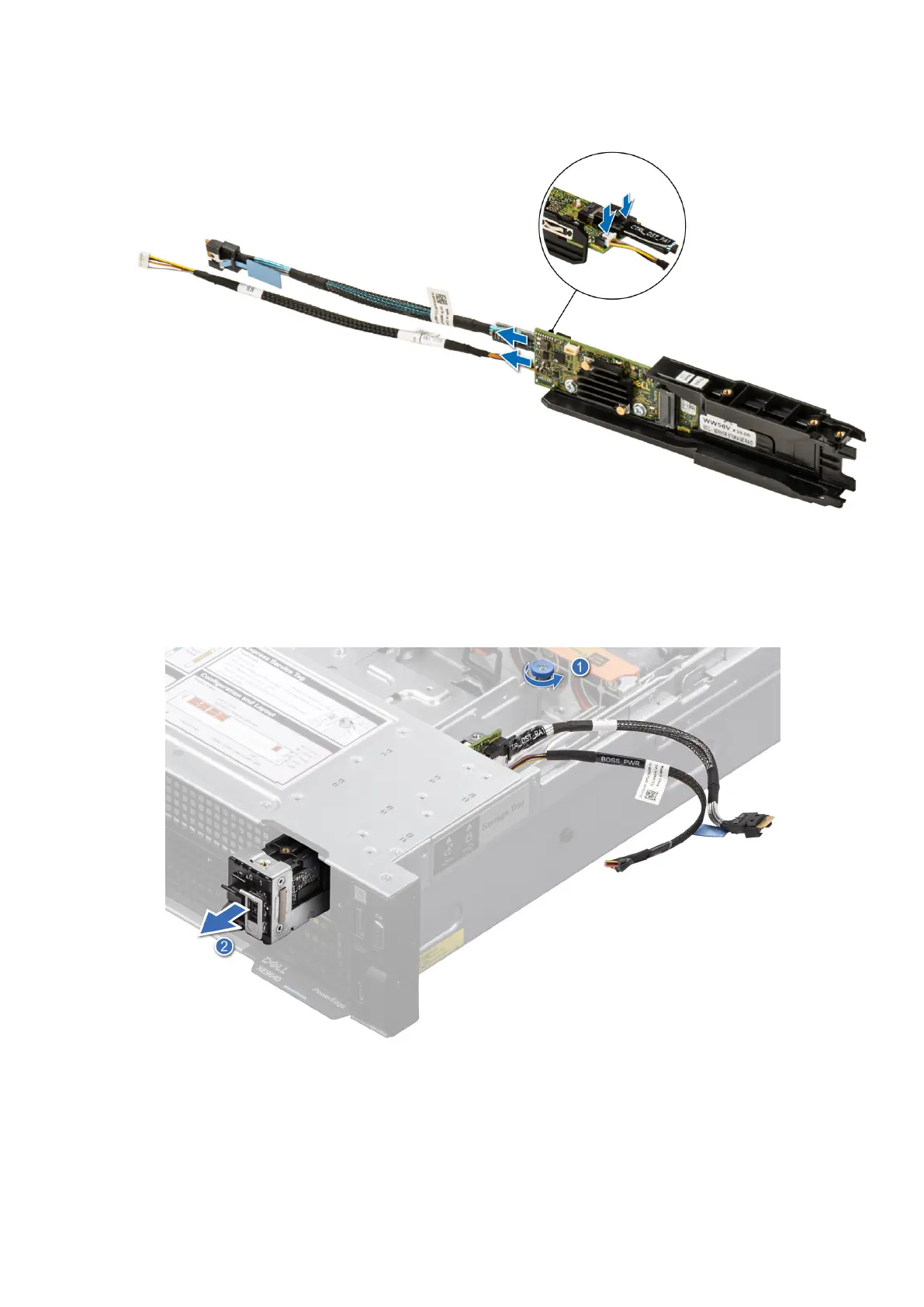

Figure 54. Removing the BOSS-N1 power and signal cable from the BOSS-N1 module
7. Using the Phillips 1 screwdriver remove the M3 x 0.5 x 4.5 mm screw that secures the BOSS-N1 module.
8. Slide the BOSS-N1 module toward the front of the chassis and lift the module.
Figure 55. Removing the BOSS-N1 module
Next steps
Replace the BOSS-N1 module.
