Delta Electronics VFD-EL series User Manual

Chapter 1 Introduction|
||
|
1-6 Revision 2016/03, 6ELE, V1.14

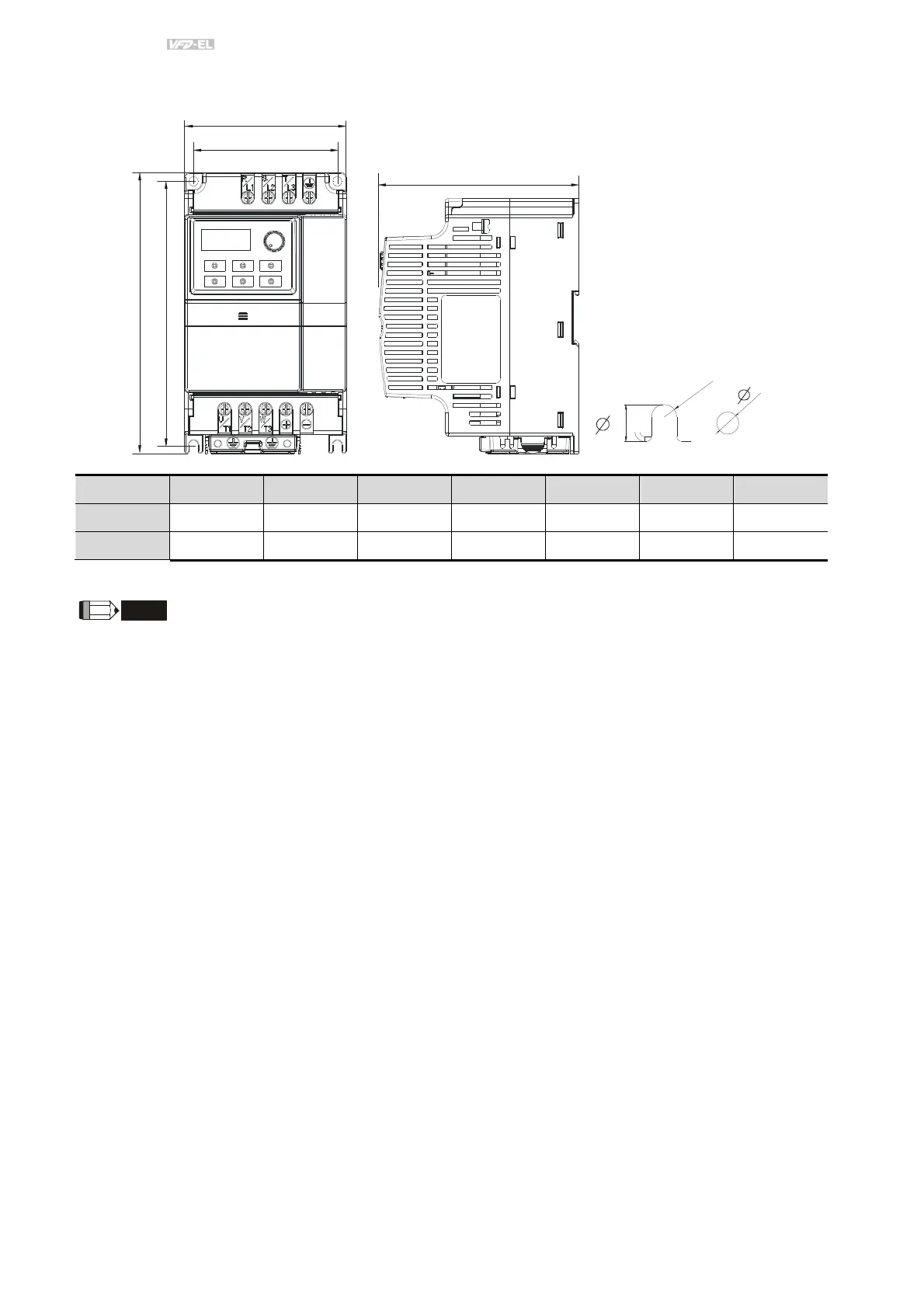

1.3 Dimensions
(Dimensions are in millimeter and [inch])
D
D
W
H H1
W1
Frame W W1 H H1 D Ø ØD
A
72.0[2.83] 59.0[2.32] 174.0[6.86] 151.6[5.97] 136.0[5.36] 5.4[0.21] 2.7[0.11]
B
100.0[3.94] 89.0[3.50] 174.0[6.86] 162.9[6.42] 136.0[5.36] 5.4[0.21] 2.7[0.11]
NOTE
Frame A: VFD002EL11A/21A/23A, VFD004EL11A/21A/23A/43A, VFD007EL21A/23A/43A, VFD015EL23A/43A
Frame B: VFD007EL11A, VFD015EL21A, VFD022EL21A/23A/43A, VFD037EL23A/43A
