Delta Electronics VFD-EL series User Manual

Chapter 1 Introduction|
||
|
1-2 Revision 2016/03, 6ELE, V1.14

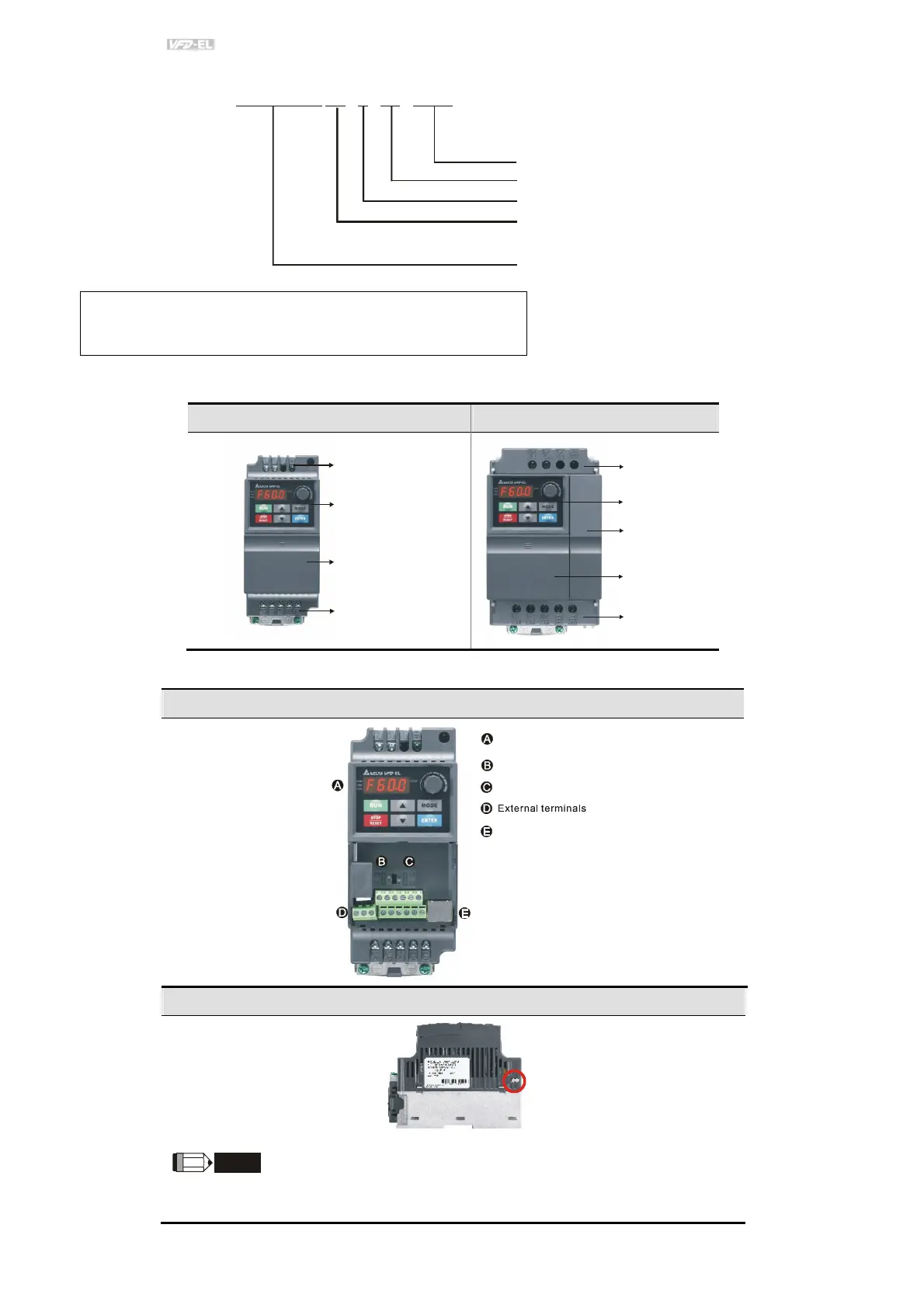

1.1.3 Series Number Explanation
01
07
0T
007EL23A
Production number
Production year 2007
Production factory
Production week
T: Taoyuan, W: Wujiang
Model
230V 3-phase 1HP(0.75kW)
1230
If the nameplate information does not correspond to your
purchase order or if there are any problems, please contact
your distributor.
1.1.4 Drive Frames and Appearances
0.25-2HP/0.2-1.5kW (Frame A) 1-5HP/0.75-3.7kW (Frame B)
Input terminals
(R/L1, S/L2, T/L3)
Digital keypad
Output terminals
(U/T1, V/T2, W/T3)
Control board cover
Input terminals cover
(R/L1, S/L2, T/L3)
Case body
Digital keypad
Output terminals cover
(U/T1, V/T2, W/T3)
Control board cover
Internal Structure
Digital keypad
ACI/AVI
RS485 port (RJ-45)
NPN/PNP
RFI Jumper Location
at the right side
NOTE
RFI jumper is near the input terminals as shown in the above figure and can be
removed by taking off screws.
