Chapter 4 Parameters|
||
|
4-26 Revision 2016/03, 6ELE, V1.14

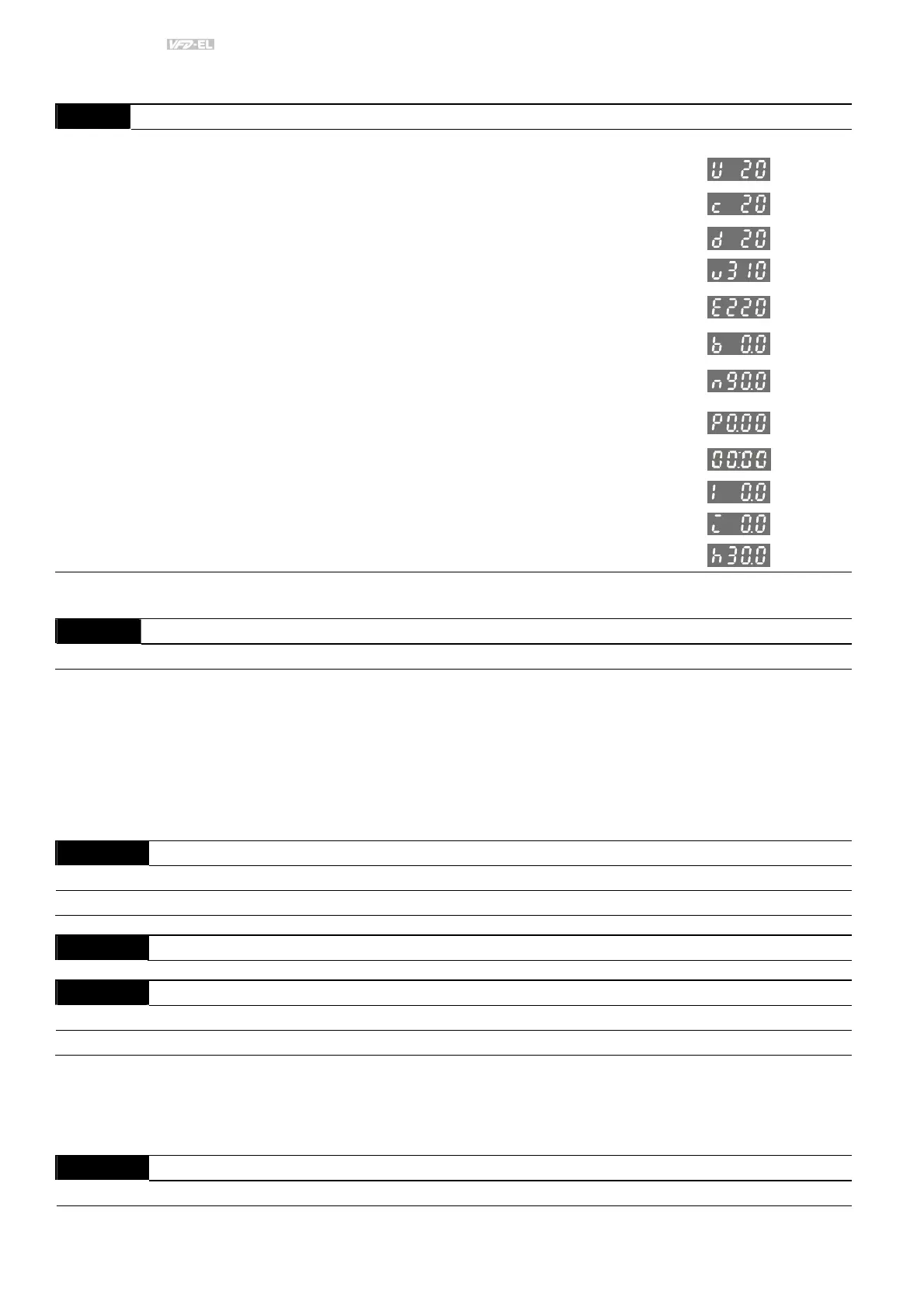

00.04
Content of Multi-function Display
Factory Setting: 0
Settings 0 Display the content of user-defined unit (Uxxx)
1
Display the counter value which counts the number of pulses on
TRG terminal
2 Display status of multi-input terminals (d)
3 Display the actual DC BUS voltage in VDC of the AC motor drive
4
Display the output voltage in VAC of terminals U/T1, V/T2, W/T3
to the motor.
5 Display PID analog feedback signal value in %
6
Display the power factor angle in º of terminals U/T1, V/T2, W/T3
to the motor
7
Display the output power in kW of terminals U, V and W to the
motor.
8 Display PID setting and feedback signal.
9 Display the signal of AVI analog input terminal (V).
10 Display the signal of ACI analog input terminal (mA).
11 Display the temperature of IGBT (h) in °C
When Pr00.03 is set to 03, the display is according to the setting of Pr00.04.
00.05
User Defined Coefficient K Unit: 0.1
Settings 0.1 to d 160.0 Factory Setting: 1.0
The coefficient K determines the multiplying factor for the user-defined unit.
The display value is calculated as follows:
U (User-defined unit) = Actual output frequency * K (Pr.00.05)
Example:
A conveyor belt runs at 13.6m/s at motor speed 60Hz.
K = 13.6/60 = 0.22 (0.226667 rounded to 1 decimal), therefore Pr.00.05=0.2
With Frequency command 35Hz, display shows U and 35*0.2=7.0m/s.
(To increase accuracy, use K=2.2 or K=22.7 and disregard decimal point.)
00.06
Software Version
Settings Read Only
Display #.##
00.07
Reserved
00.08
Password Input
Unit: 1
Settings 0 to 9999 Factory Setting: 0
Display 0~2 (times of wrong password)
The function of this parameter is to input the password that is set in Pr.00.09. Input the correct password here
to enable changing parameters. You are limited to a maximum of 3 attempts. After 3 consecutive failed
attempts, a blinking “codE” will show up to force the user to restart the AC motor drive in order to try again to
input the correct password.
00.09
Password Set Unit: 1
Settings 0 to 9999 Factory Setting: 0
Display 0 No password set or successful input in Pr. 00.08
