The specification for the control terminals

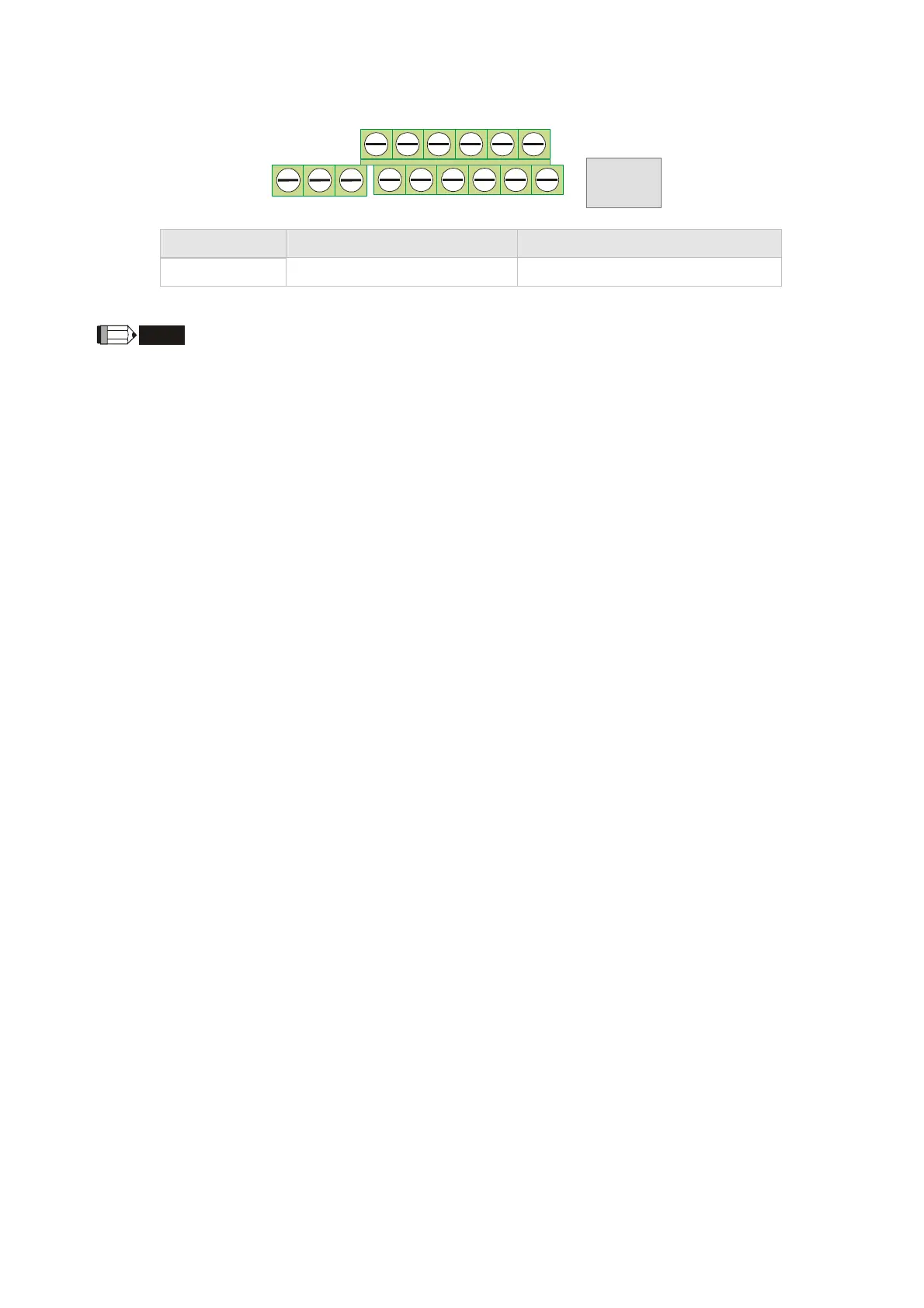

The position of the control terminals

RS-485

10V

MI1 MI3 MI524V AVI

MI2

MI4

MI6

DCM

ACM

AFM

Frame Torque Wire

A, B 5.1-8.1kgf-cm (4.4-7in-lbf) 16-24 AWG. (1.3-0.2mm

)

NOTE

Frame A: VFD002EL11A/21A/23A, VFD004EL11A/21A/23A/43A, VFD007EL21A/23A/43A, VFD015EL23A/43A

Frame B: VFD007EL11A, VFD015EL21A, VFD022EL21A/23A/43A, VFD037EL23A/43A
