Chapter 4 Parameters|
||
|
4-40 Revision 2016/03, 6ELE, V1.14

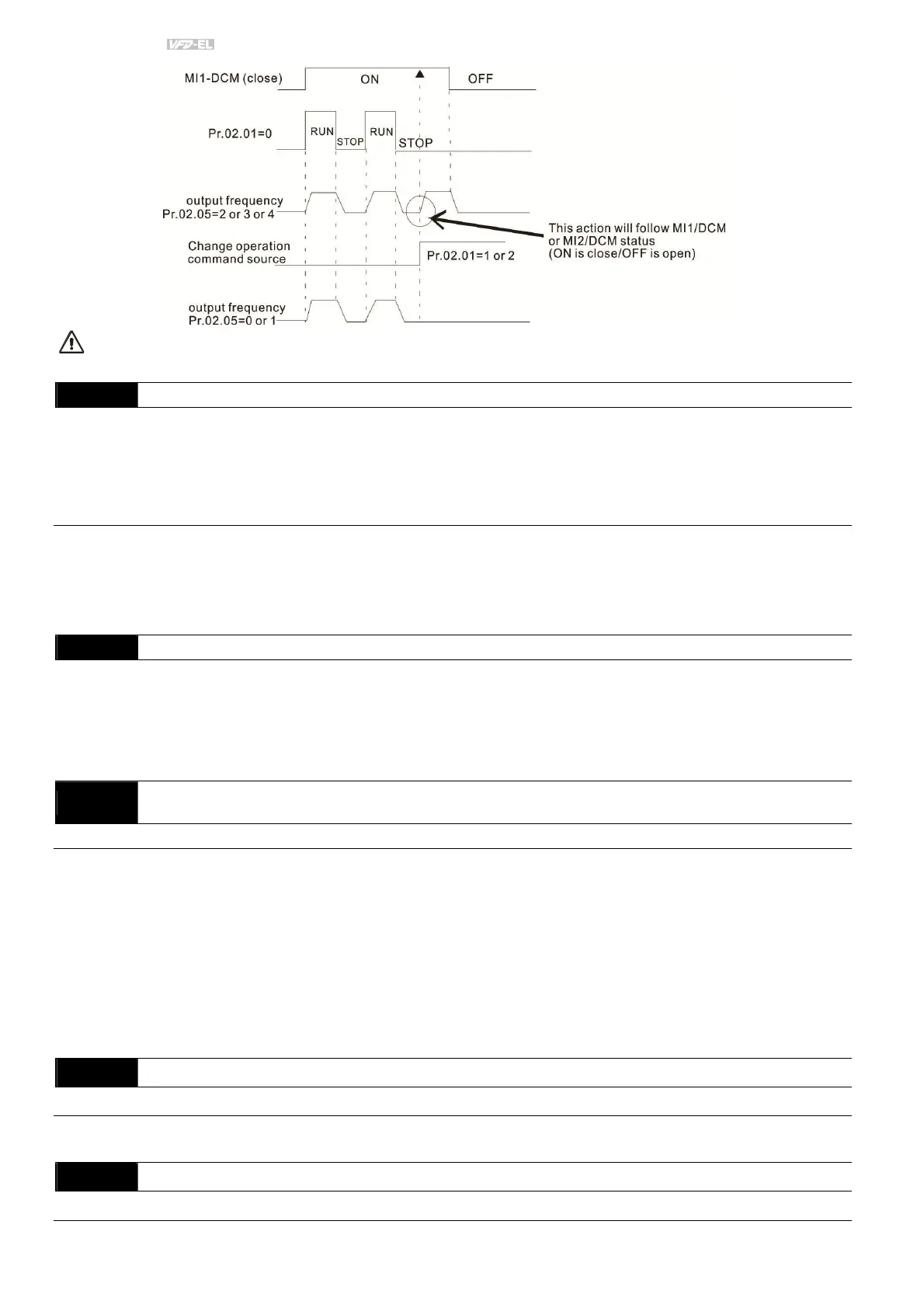

The Line Start Lockout feature does not guarantee that the motor will never start under this condition. It is
possible the motor may be set in motion by a malfunctioning switch.
02.06
Loss of ACI Signal (4-20mA)
Factory Setting: 0
Settings 0 Decelerate to 0Hz
1 Coast to stop and display “AErr”
2
3
Continue the operation by the last frequency command
Continue the operation by following the setting at Pr02.11.
This parameter determines the behavior when ACI is lost.
When set to 1, it will display warning message “AErr” on the keypad in case of loss of ACI signal and execute
the setting. When ACI signal is recovered, the warning message will stop blinking. Please press “RESET” key
to clear it.
02.07
Up/Down Mode
Factory Setting: 0
Settings 0 By digital keypad up/down keys mode
1 Based on Accel/Decel Time acc. to Pr.01.09 to 01.12
2 Constant speed (acc. to Pr. 02.08)
3 Pulse input unit (acc. to Pr. 02.08)
02.08
Accel/Decel Rate of Change of UP/DOWN Operation with Constant
Speed
Unit: 0.01
Settings 0.01~10.00 Hz/2ms Factory Setting: 0.01
These parameters determine the increase/decrease of the master frequency when operated via the Multi-
function Inputs when Pr.04.05~Pr.04.08 are set to 10 (Up command) or 11 (Down command).
When Pr.02.07 is set to 0: increase/decrease the frequency by using UP/DOWN key. It is valid only when the
AC motor drive is running.
When Pr.02.07 is set to 1: increase/decrease the frequency by acceleration/deceleration settings. It is valid
only when the AC motor drive is running.
When Pr.02.07 is set to 2: increase/decrease the frequency by Pr.02.08.
When Pr.02.07 is set to 3: increase/decrease the frequency by Pr.02.08 (unit: pulse input).
02.11 Keypad Frequency Command Unit: 0.01
Settings 0.00 to 599.00Hz Factory Setting: 60.00
This parameter can be used to set frequency command or read keypad frequency command.
02.12 Communication Frequency Command Unit: 0.01
Settings 0.00 to 599.00Hz Factory Setting: 60.00
This parameter can be used to set frequency command or read communication frequency command.
