Note 1: The table above gives approximate wire size for the zero phase reactors but the selection is ultimately
governed by the type and diameter of cable fitted i.e. the cable must fit through the center hole of zero phase
reactors.
Note 2: Only the phase conductors should pass through, not the earth core or screen.
Note 3: When long motor output cables are used an output zero phase reactor may be required to reduce radiated
emissions from the cable.
B.6 Remote Controller RC-01

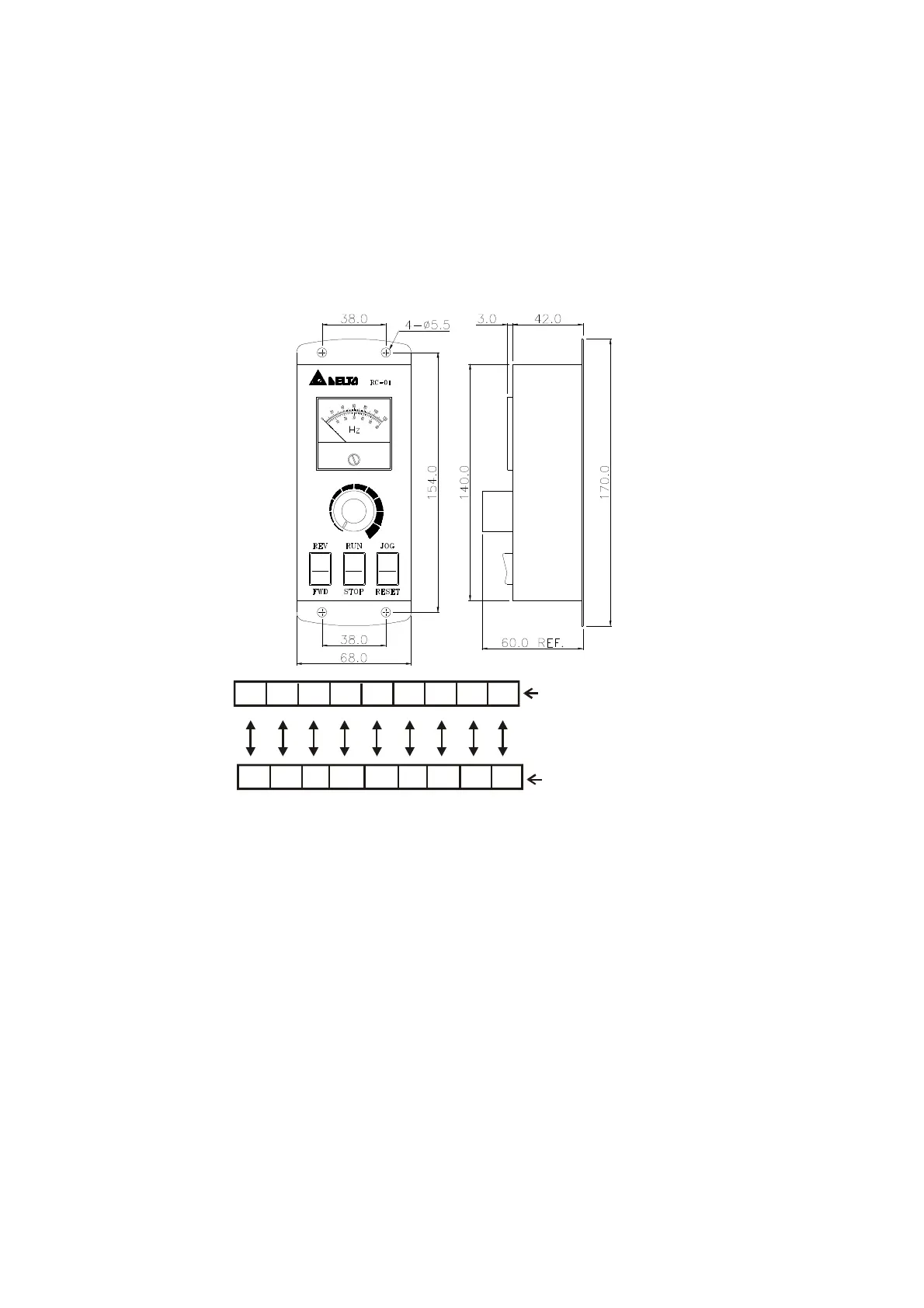

Dimensions are in millimeter
AFM ACM +10VAVI DCM MI5
8 6
5
4 16 15 14 13 11
VFD-EL I/O block
VFD-EL Programming:
Pr.02.00 set to 2
Pr.02.01 set to 1 (external controls)
Pr.04.04 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.04.07 (MI5) set to 5 (External reset)
Pr.04.08 (MI6) set to 8 (JOG operation)
