Chapter 4 Parameters|
||
|
4-46 Revision 2016/03, 6ELE, V1.14

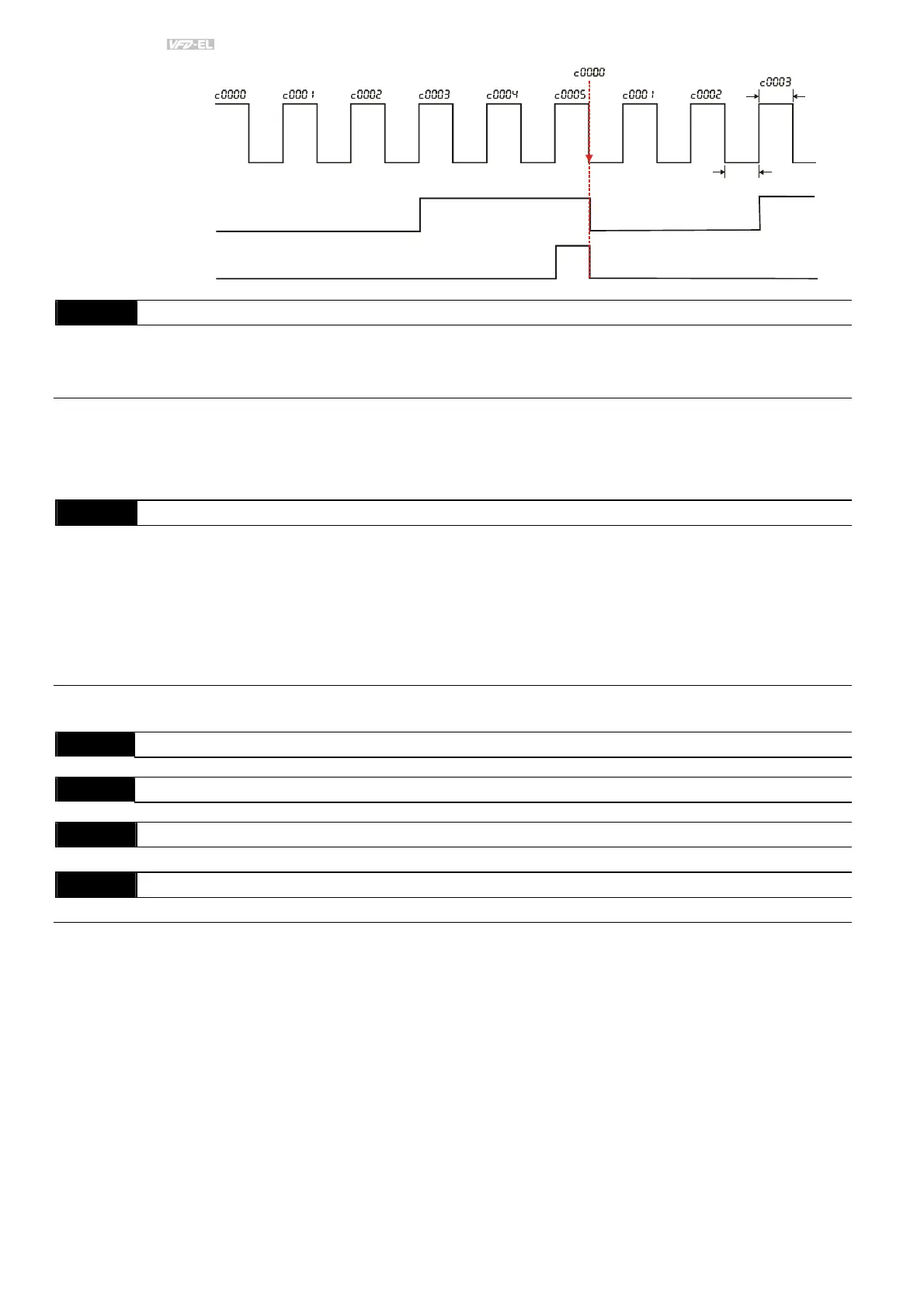

Terminal Count Value
(Pr. 03.00=10)
Preliminary Count Value
(Pr. 03.00=11)
Display
(Pr.00.04=1)
TRG
Counter Trigger
The width of trigger signal
should not be less than
2ms(<250 Hz)
Ex:03.05=5,03.06=3
03.07
EF Active when Terminal Count Value Attained
Factory Setting: 0
Settings 0 Terminal count value attained, no EF display
1 Terminal count value attained, EF active
If this parameter is set to 1 and the desired value of counter is attained, the AC drive will treat it as a fault. The
drive will stop and show the “EF” message on the display.
03.08
Fan Control
Factory Setting: 0
Settings 0 Fan always ON
1 1 minute after AC motor drive stops, fan will be OFF
2 Fan ON when AC motor drive runs, fan OFF when AC motor drive stops
3
4
Fan ON when preliminary heatsink temperature attained
Fan ON when AC motor drive runs, fan OFF when AC motor drive stops and
fan will be at standby mode at 0Hz.
This parameter determines the operation mode of the cooling fan.
03.09
Reserved
03.10
Reserved
03.11
Brake Release Frequency Unit: 0.01
Settings 0.00 to 599.0Hz Factory Setting: 0.00
03.12
Brake Engage Frequency Unit: 0.01
Settings 0.00 to 599.0Hz Factory Setting: 0.00
These two parameters are used to set control of mechanical brake via the output terminals (Relay) when
Pr.03.00is set to 21. Refer to the following example for details.
Example:
1. Case 1: Pr.03.12 ≥ Pr.03.11
2. Case 2: Pr.03.12 ≤ Pr.03.11
