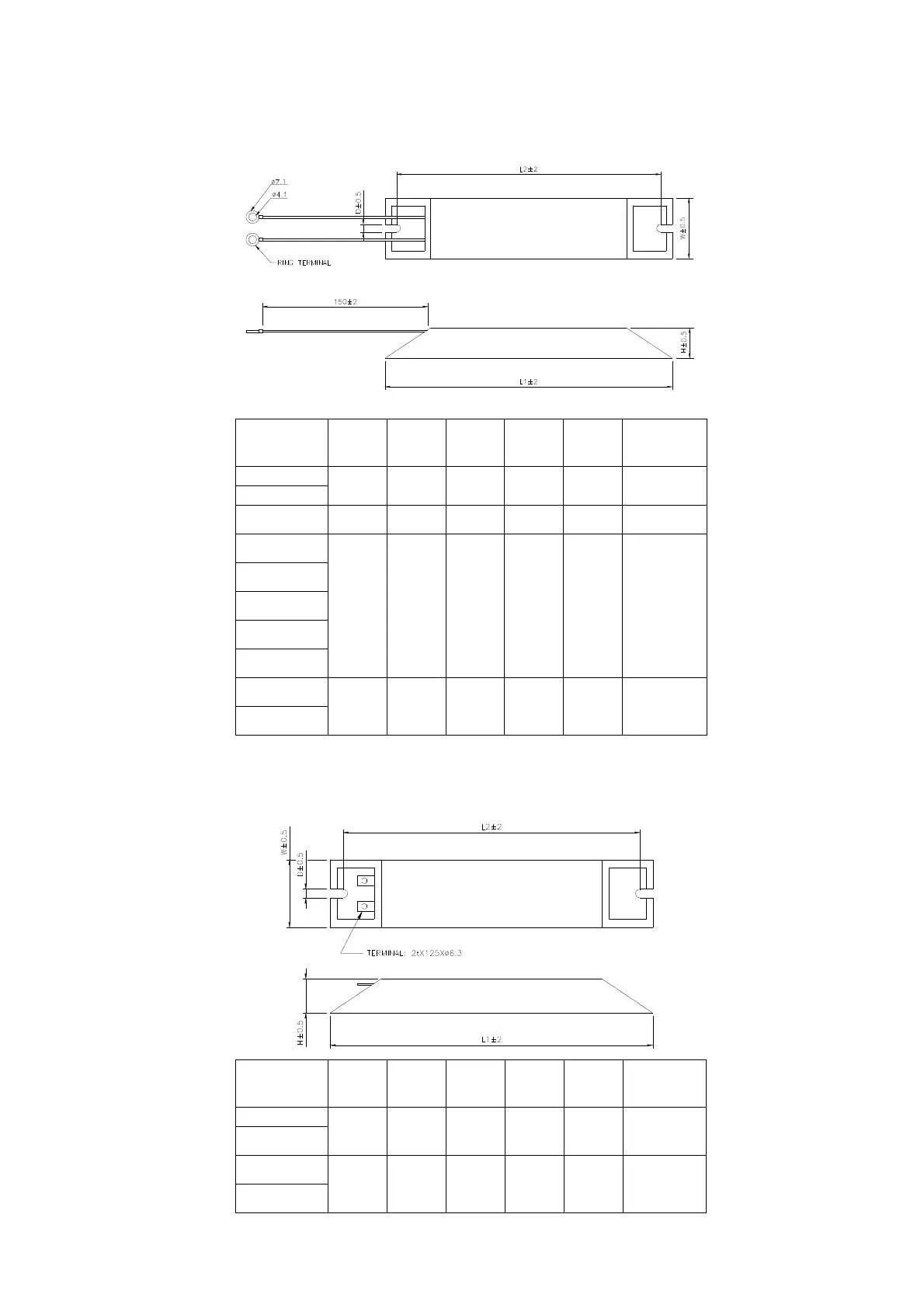

B.1.1 Dimensions and Weights for Brake Resistors (Dimensions are in millimeter)
Order P/N: BR080W200, BR080W750, BR300W100, BR300W250, BR300W400, BR400W150, BR400W040
Model no. L1 L2 H D W
Max.
Weight (g)
BR080W200
140 125 20 5.3 60 160
BR080W750
BR200W150 165 150 40 5.3 60 460
BR300W025
215 200 30 5.3 60 750
BR300W100
BR300W110
BR300W250
BR300W400
BR400W150
265 250 30 5.3 60 930
BR400W040
Order P/N: BR500W030, BR500W100, BR1KW020, BR1KW075
Model no. L1 L2 H D W
Max.
Weight (g)
BR500W030
335 320 30 5.3 60 1100
BR500W100
BR1KW020
400 385 50 5.3 100 2800
BR1KW075
