Factory Setting: 1
Settings 0 Disable
1 Speed search starts with last frequency command
2 Speed search starts with minimum output frequency (Pr.01.05)
This parameter determines the AC motor drive restart method after External Base Block is enabled.
Output frequency
(H)
Output voltage(V)
08.08 Current Limit
for Speed SearchSpeed
FWD Run
Time
B.B.

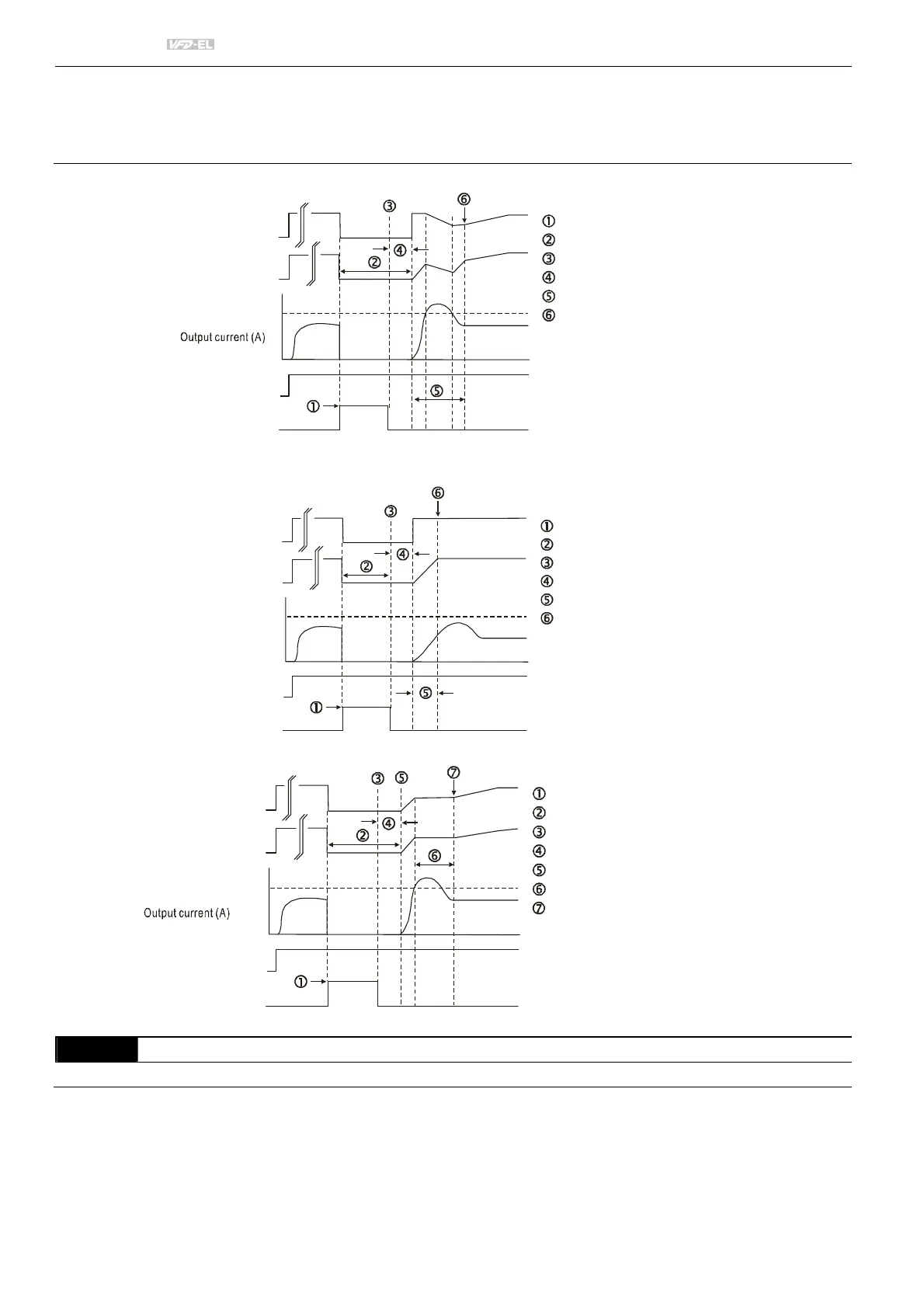

Fig 1:B.B. Speed Search with Last Output Frequency Downward Timing Chart
(Speed Search Current Attains Speed Search Level)
A
Disable B.B. signal
Waiting time 08.07
Speed Search
Synchronization speed detection
Time
B.B.
Fig 2: B.B. Speed Search with Last Output Frequency Downward Timing Chart
(Speed Search Current doesn't Attain Speed Search Level)
A
Stop output voltage
Disable B.B. signal
Waiting time 08.07
Speed Search
Synchronization speed detection
Output frequency
(H)
08.08 Current Limit
for Speed SearchSpeed
FWD Run
Time
B.B.
Fig3: B.B. Speed Search with Minimum Output Frequency Upward Timing Chart
A
Stop output voltage
Disable B.B. signal
Waiting time 08.07
Restart
Synchronization speed detection
Keep accelerating
A
Output frequency
(H)
06.01
Over current
stall prevention
during acceleration
FWD Run
08.07
Baseblock Time for Speed Search (BB) Unit: 0.1
Settings 0.1 to 5.0 sec Factory Setting: 0.5
When momentary power loss is detected, the AC motor drive will block its output and then wait for a specified
period of time (determined by Pr.08.07, called Base-Block Time) before resuming operation. This parameter
should be set at a value to ensure that any residual regeneration voltage from the motor on the output has
disappeared before the drive is activated again.
This parameter also determines the waiting time before resuming operation after External Baseblock and Auto
Restart after Fault (Pr.08.15).
