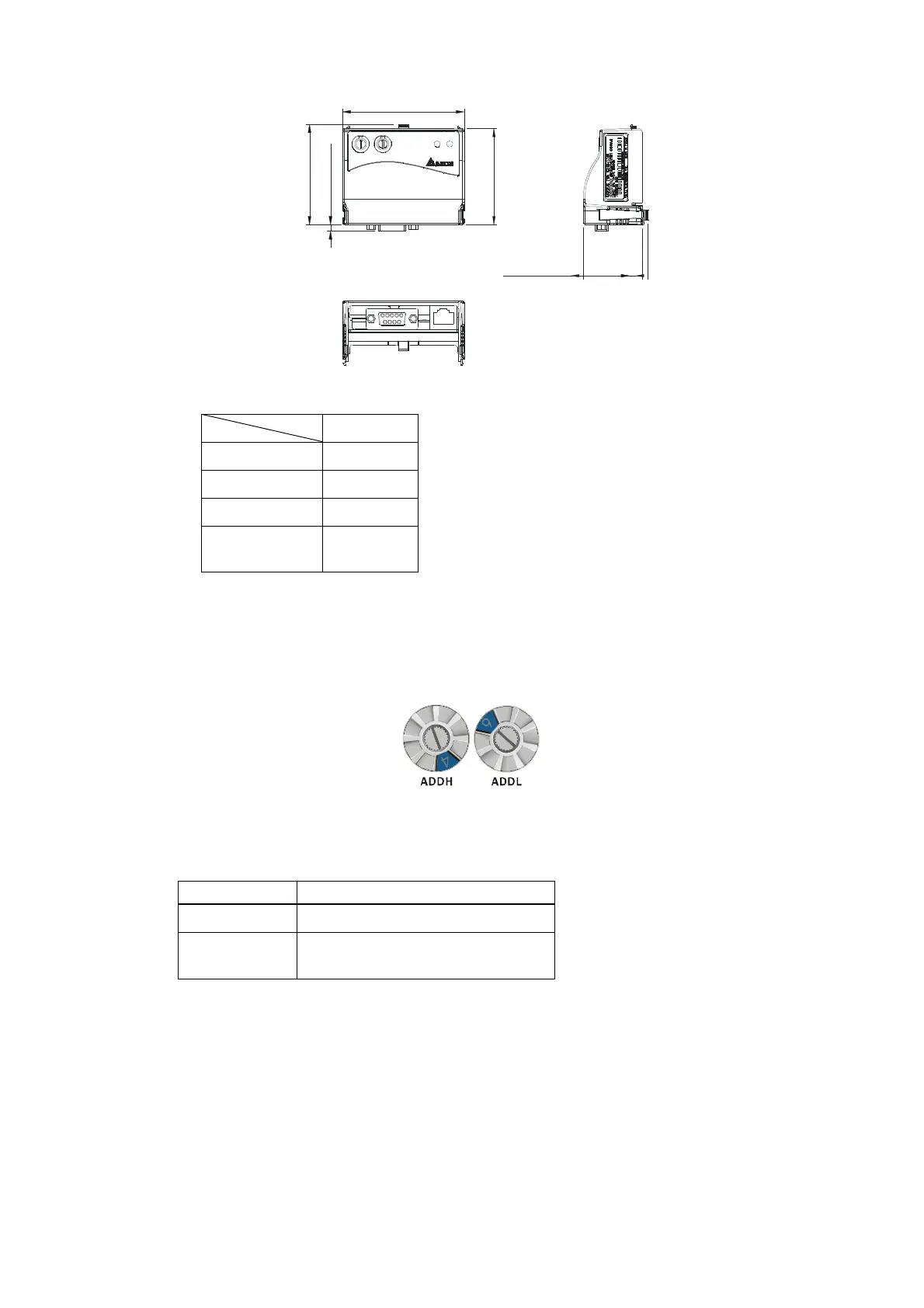

B.8.3.2 Dimensions
5
7
.
3
[
2
.
2
6
]
5
9
.
7
[
2
.
3
5
]
3.6 [0.14]
72.2 [2.84]
34.8 [1.37]
ADDH A D DL
SPNET
CME-P B0 1
UNIT: mm(inch)
B.8.3.3 Parameters Settings in VFD-EL
VFD-EL
Baud Rate 9600 Pr.09.01=1
RTU 8, N, 2 Pr.09.03=3
Freq. Source Pr.02.00=4
Command
Source
Pr.02.01=3
B.8.3.4 Power Supply
The power of CME-PD01 is supplied from VFD-EL. Please connect VFD-EL to CME-PD01 by using 8 pins
RJ-45 cable, which is packed together with CME-PD01. After connection is completed, CME-PD01 is
powered whenever power is applied to VFD-EL.
B.8.3.5 PROFIBUS Address
CME-PD01 has two rotary switches for the user to select the PROFIBUS address. The set value via 2
address switches, ADDH and ADDL, is in HEX format. ADDH sets the upper 4 bits, and ADDL sets the lower
4 bits of the PROFIBUS address.
Address
Meaning
1..0x7D Valid PROFIBUS address
0 or
0x7E..0xFE
Invalid PROFIBUS address
