Delta Electronics VFD-EL series - Desired Frequency Attained; MO 23 Description

Chapter 4 Parameters|
||
|
4-44 Revision 2016/03, 6ELE, V1.14

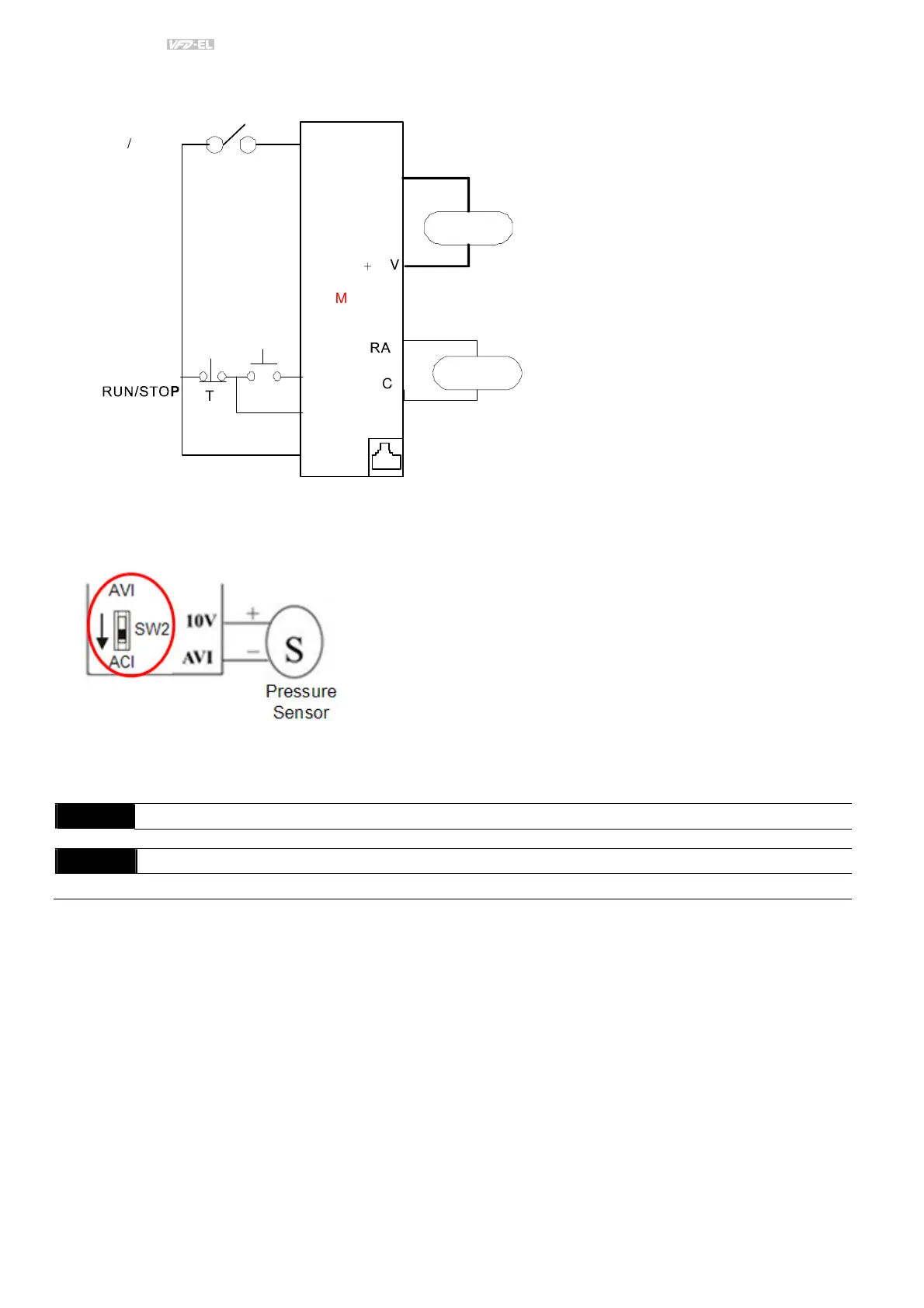

 MO 23 description:
MI4
DCM
Hand Auto
Switch
/
Master
MI1
MI3
Hand mode
STOP
RUN
RS485
+ 10V
ACI
Pressure
Sensor
Auto mode
RB
RC
Indicator
Light
If any error occurred on the inverter of the multi-pump system, the RLY will be turned on
 Wiring of the pressure sensor:
 Connect pressure sensor to +10V and AVI, then switch the SW2 switch to ACI
03.01
Reserved
03.02
Desired Frequency Attained Unit: 0.01
Settings 0.00 to 599.0 Hz Factory Setting: 0.00
 If a multi-function output terminal is set to function as Desired Frequency Attained (Pr.03.00 =09), then the
output will be activated when the programmed frequency is attained.
