Chapter 2 Installation and Wiring|
||
|
2-4 Revision 2016/03, 6ELE, V1.14

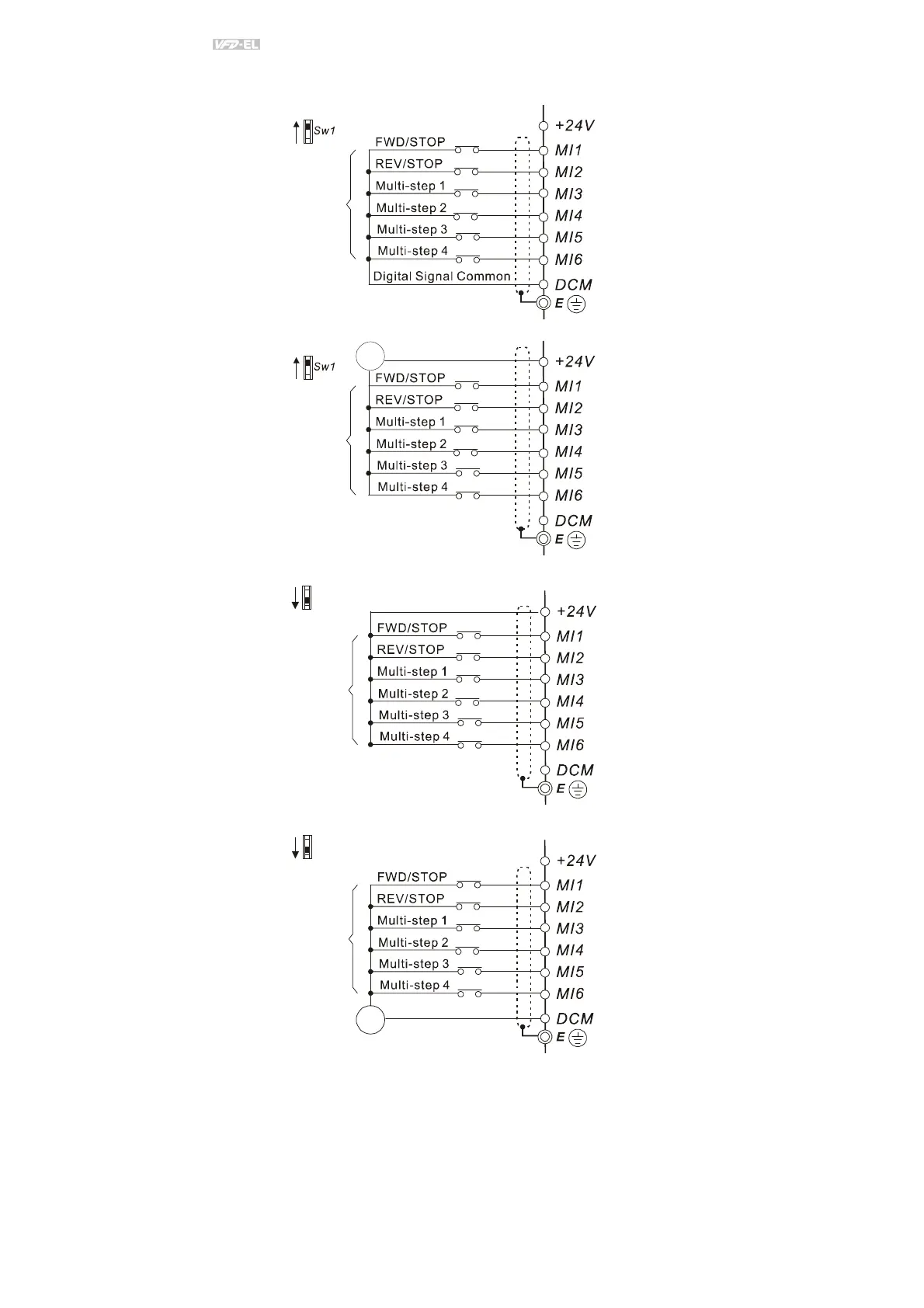

Figure 3 Wiring for NPN mode and PNP mode
A. NPN mode without external power
Factory
setting
NP N
PN P
B. NPN mode with external power
Factory
setting
NP N
PN P
24
Vdc
-
+
C. PNP mode without external power
Sw1
Factory
setting
NPN
PNP
D. PNP mode with external power
Sw1
Factory
setting
NPN
PNP
24
Vdc
-
+
