Delta AS Series User Manual

 AS64AN02T-A
8
9
92
75
8
2
Y0
40
3
7
6
5
4
13
11
12
10
8
9
Y3
14
15
2
64AN
40
Y1
0
1
2
1
0
Y2
PWR
OUT
1
0
10
88
98.3
1
4
5
2
3
6
7
38.2
35

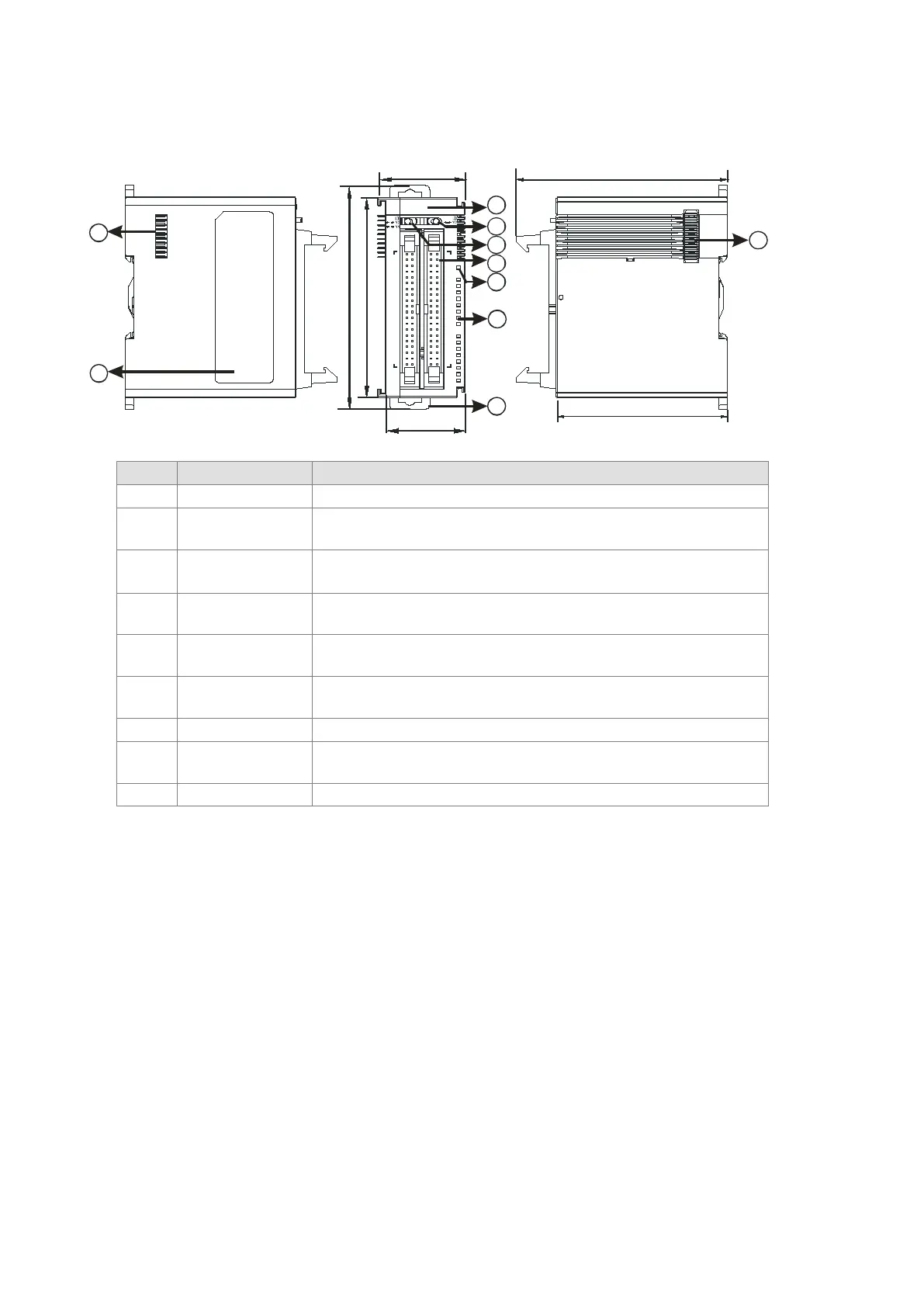

Unit: mm
Number
Name
Description
1
Model name
Model name of the module
2
LED indicator
switch 1
Switches the LED indicators to their represented outputs.
3
LED indicator
switch 2
Switches the LED indicators to their represented outputs.
4 ML connector
For the external I/O connecting cables UC-ET010-24D, UC-ET020-
24D,
UC-ET030-24D
5
Power LED
indicator
Indicates the power status of the module
6
Output LED
indicator
If there is an output signal, the output LED indicator is ON.
7
DIN rail clip
Secures the DIN rail
8
External module
port
Connects the modules
9
Label
Nameplate
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
