Delta AS Series User Manual

 ML connector, extension cable, and wiring modules

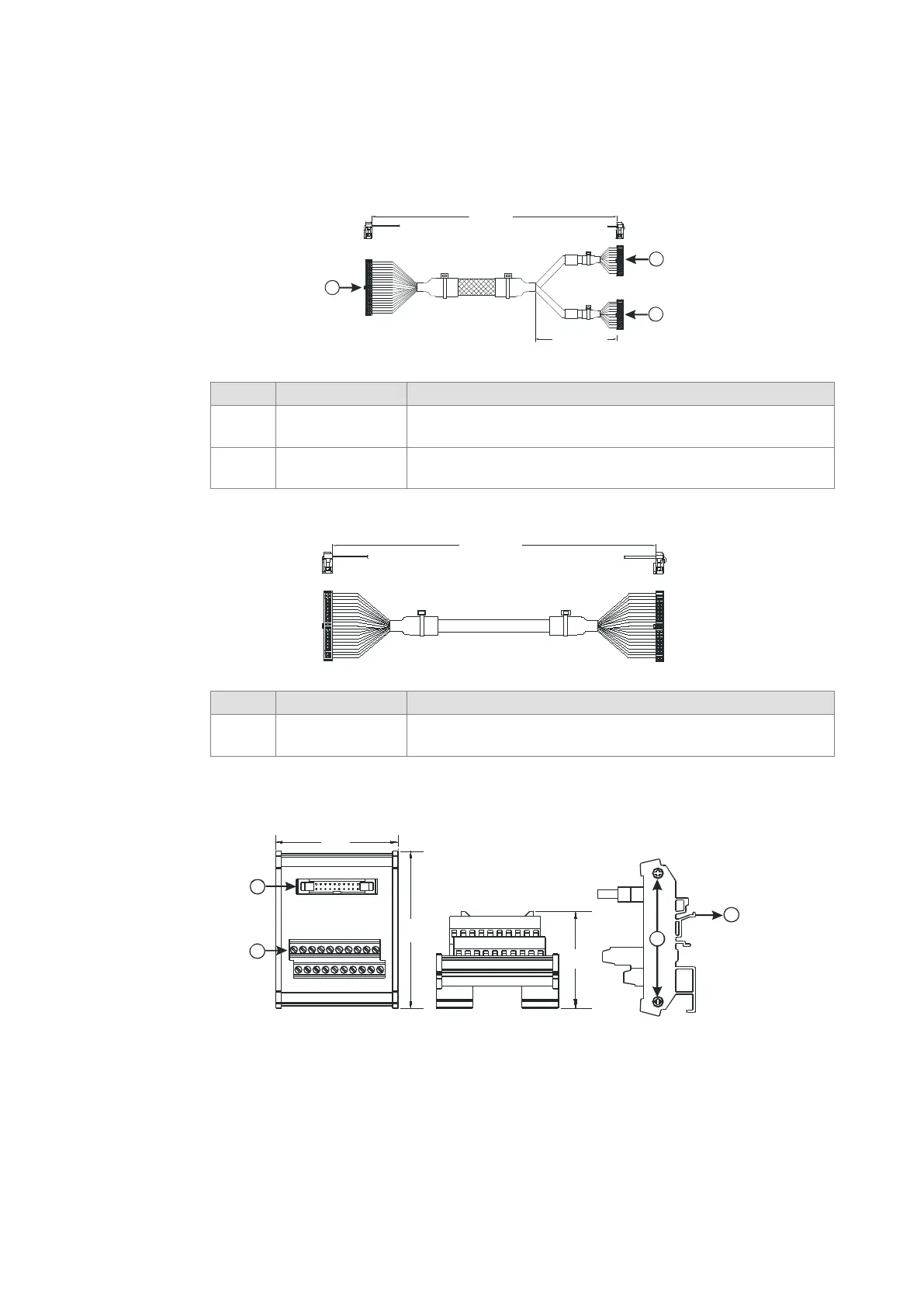

1. Extension Cable UC-ET010-24D (1M) / UC-ET020-24D (2M) / UC-ET030-24D (3M)
Length
3 9 40
1 2
500 +10m m
-
39 40
21 2 2
19 2 0
1 2
#1
#2
1
2
2
Unit: mm
Number
Name
Description
1 IDC 40-pin terminal
Connects a digital input/output module and an external terminal
module.
2 IDC 20-pin terminal
Connects the external terminal modules UB-10-ID16A/UB-10-
OR16A/UB-10-OR16B
2. I/O connecting cables UC-ET010-24B (1M) / UC-ET020-24B (2M) / UC-ET030-24B (3M)
Length
39 40
39 40
1 2
1 2
Number
Name
Description
1 IDC 40-
pin terminal
Connects an external terminal module and a wiring module UB-10-
ID32A, and UB-10-OT32A
3. AS32AM10N-A/AS64AM10N-A and the external terminal modules UB-10-ID16A, UB-10-ID32A
 UB-10-ID16A
67.0
87.0
53.6
2
1
3
4
Unit: mm
