AX-Series Motion Controller Instructions Manual Chapter 2
246

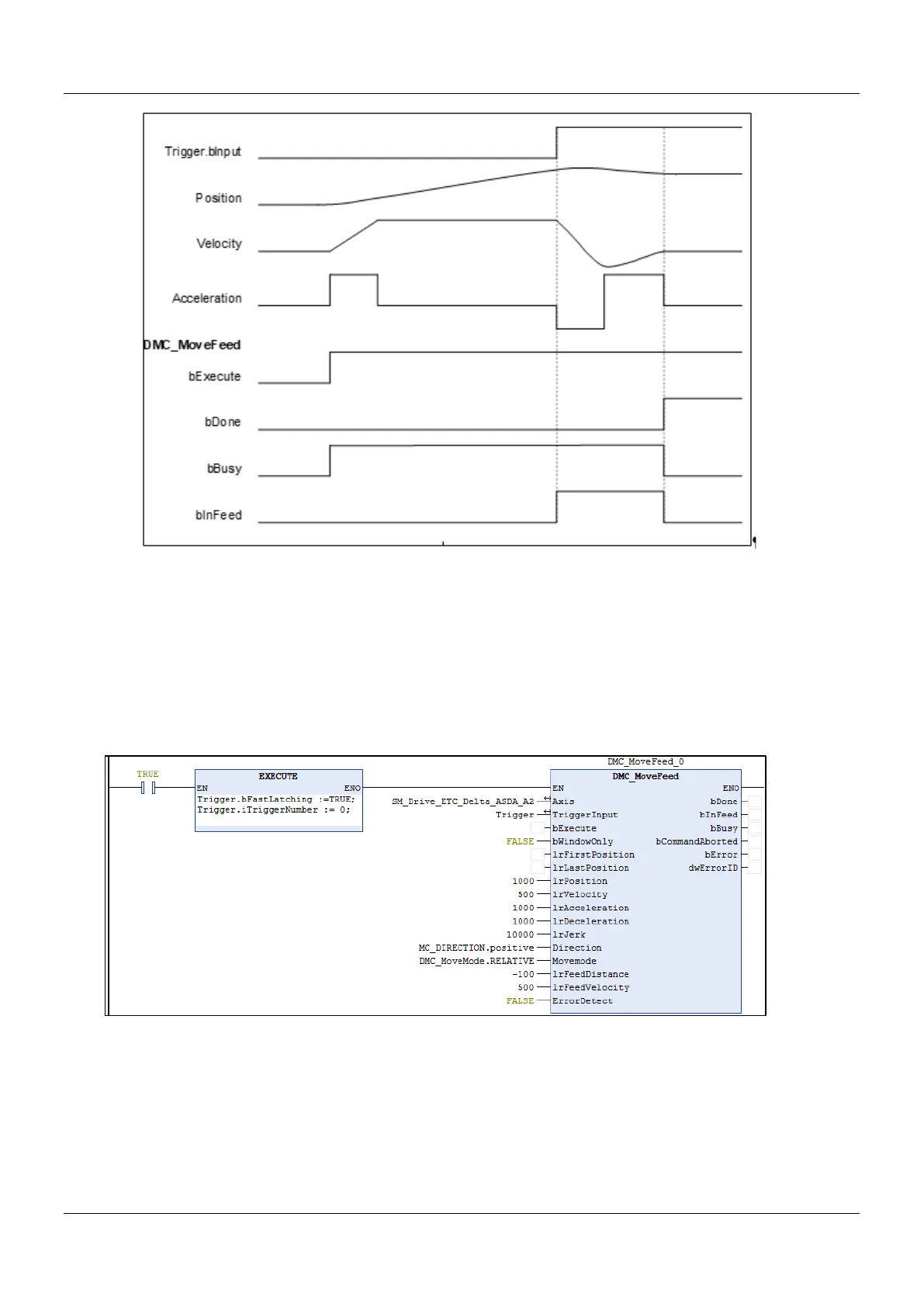

1. After DMC_MoveFeed has started, the axis starts to run with parameters such as target position, velocity,
acceleration and motion mode input by the Function block, and waits for the Trigger signal of the controller
mode.
2. After the trigger signal of the controller mode is triggered, the axis will move according to the position and
speed of the second standard movement.
3. Since the standard distance (lrFeedDistance) is a positive value, the axis maintains the original movement
direction and performs standard movement after triggering.
Sample Program 2:
Example to illustrate the execution result of using DMC_MoveFeed in drive mode.
Wiring Diagram
