Starting Milling
31
2. Milling
B

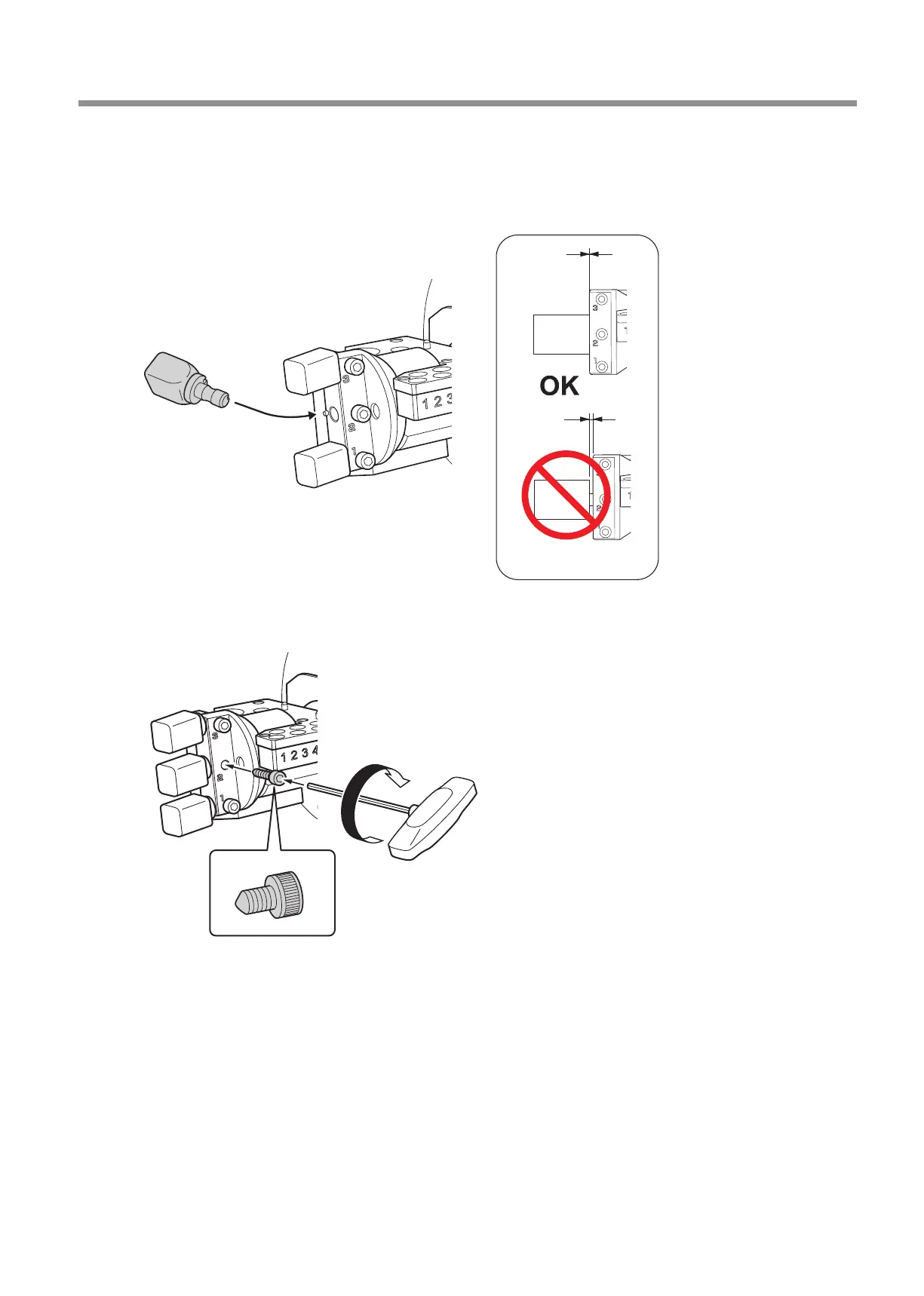

Insert the pin portion of the workpiece into the hole on the rotary axis.
Align the notch on the root of the workpiece's pin with the protrusion on the rotary axis so as to eliminate the gap
between the attaching surfaces.
You can install a maximum of three workpieces.
Not OK
C
Use a mounting screw to secure the workpiece in place.
Tighten with a hexagonal screwdriver.
D
Close the front cover.
