Following Daily Operations
45
2. Milling
G

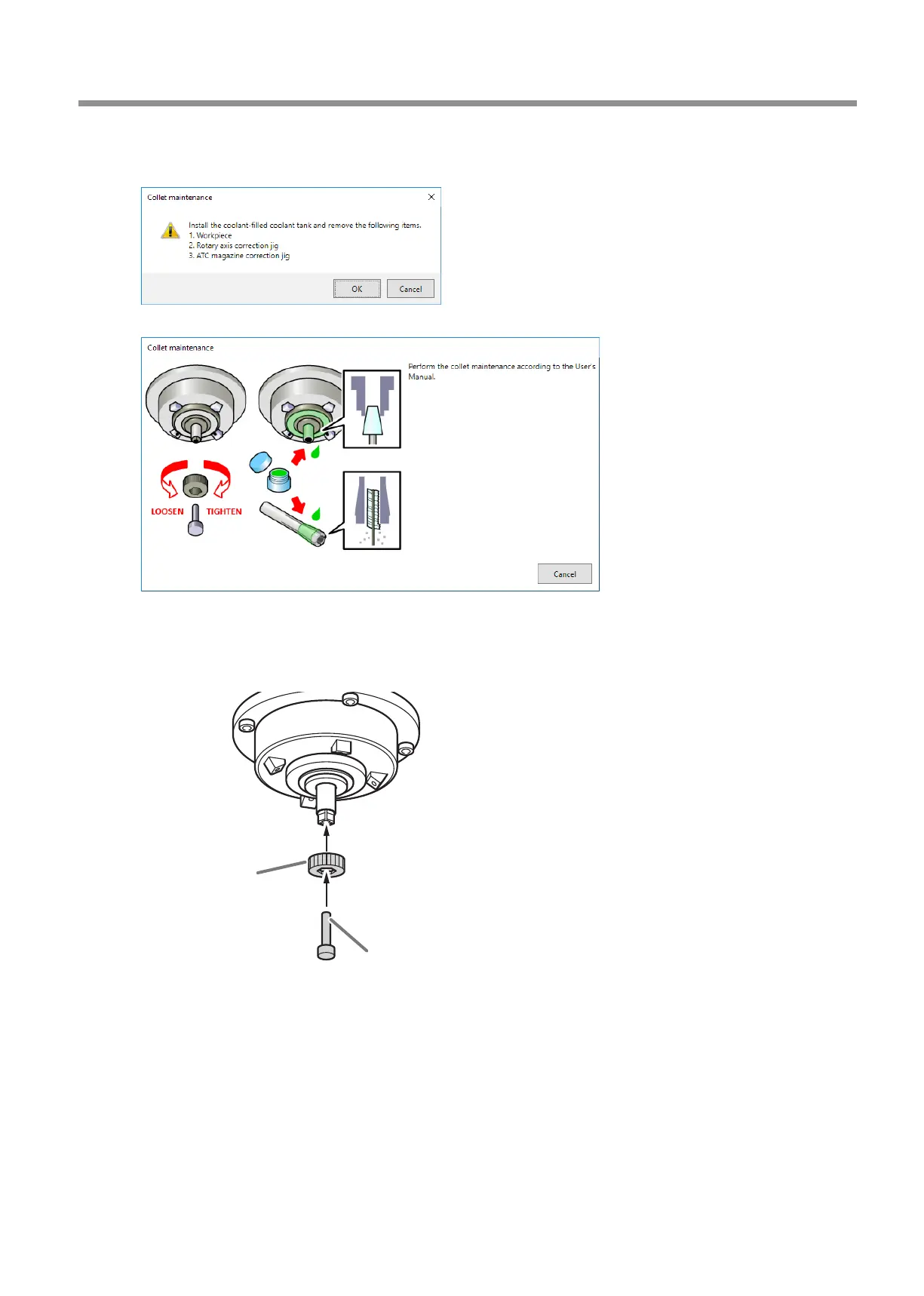

Check that the workpiece, rotary axis correction jig, and magazine correction jig have been removed,
and then click [OK].
The following window is displayed automatically.
H
Open the front cover.
I
Press the collet replacement jig against the collet, and then insert the collet tap.
Align the hexagonal tip of the collet and the hexagonal portion of the collet replacement jig.
Collet replacement jig
Collet tap
To Next Page
