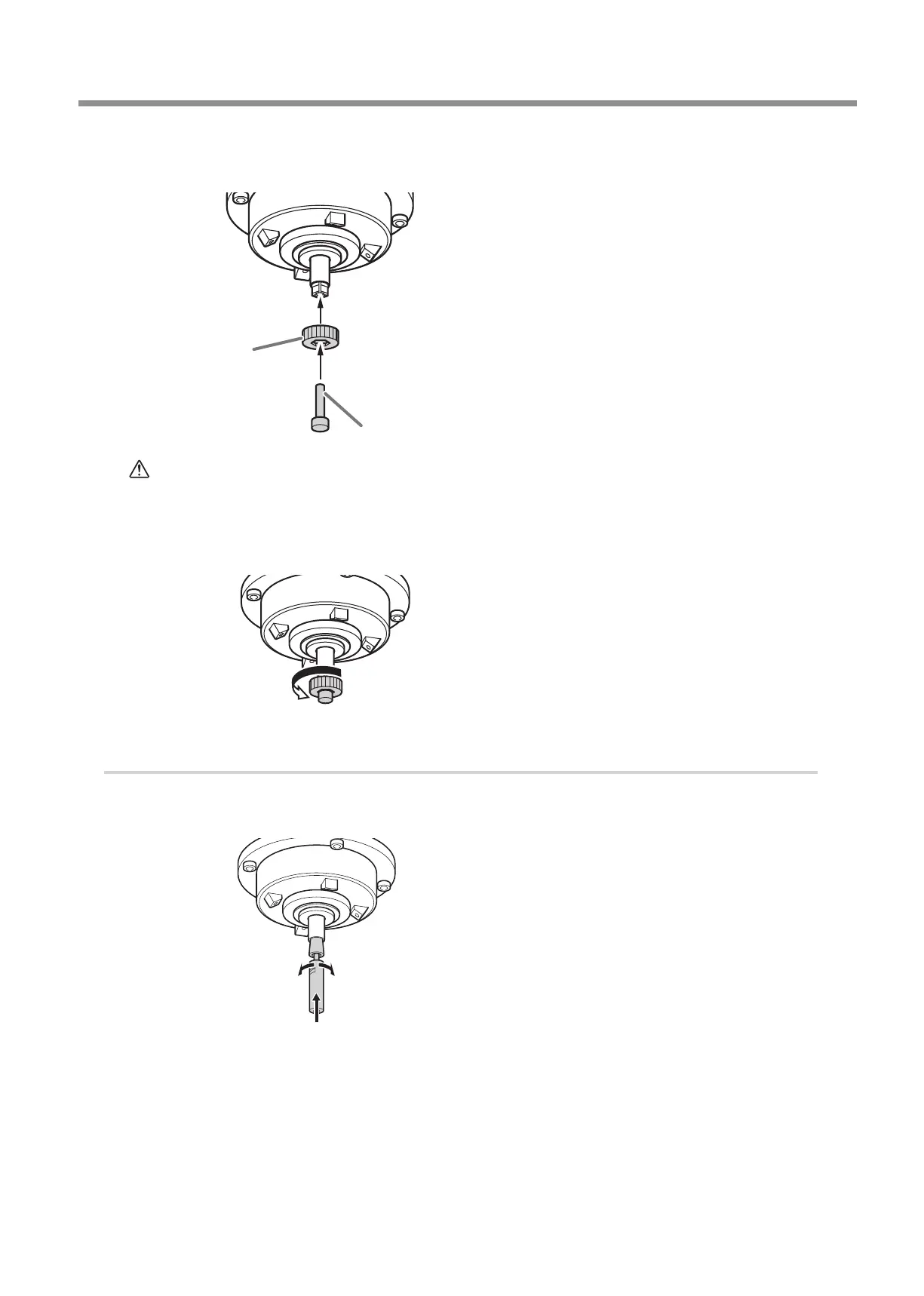

Press the collet replacement jig against the collet, and then insert the collet tap.
Align the hexagonal tip of the collet and the hexagonal portion of the collet replacement jig.
Collet replacement jig
Collet tap
CAUTION
Rotate the collet replacement jig with the collet tap inserted.
If the collet replacement jig is rotated without the collet tap inserted, the collet may be damaged.
H
While gently pressing the collet tap up into the hole, rotate the collet replacement jig in the direction
indicated in the gure.
Rotate the collet replacement jig until the collet naturally comes free.
2.
Attach the new collet.
A
Clean the inside of the spindle (where contact with the collet is made) with the taper cleaner.
Rotate the taper cleaner left and right as if you are brushing the inner portion of the spindle.
