2 Turn over 1 and align it with the position shown in the gure.
3 Check that the pin-type workpiece adapter has been mounted on the adapter base
without any gaps.
If the pin-type workpiece adapter wobbles, check the position in step 2 again.
D
Attach the adapter cap.

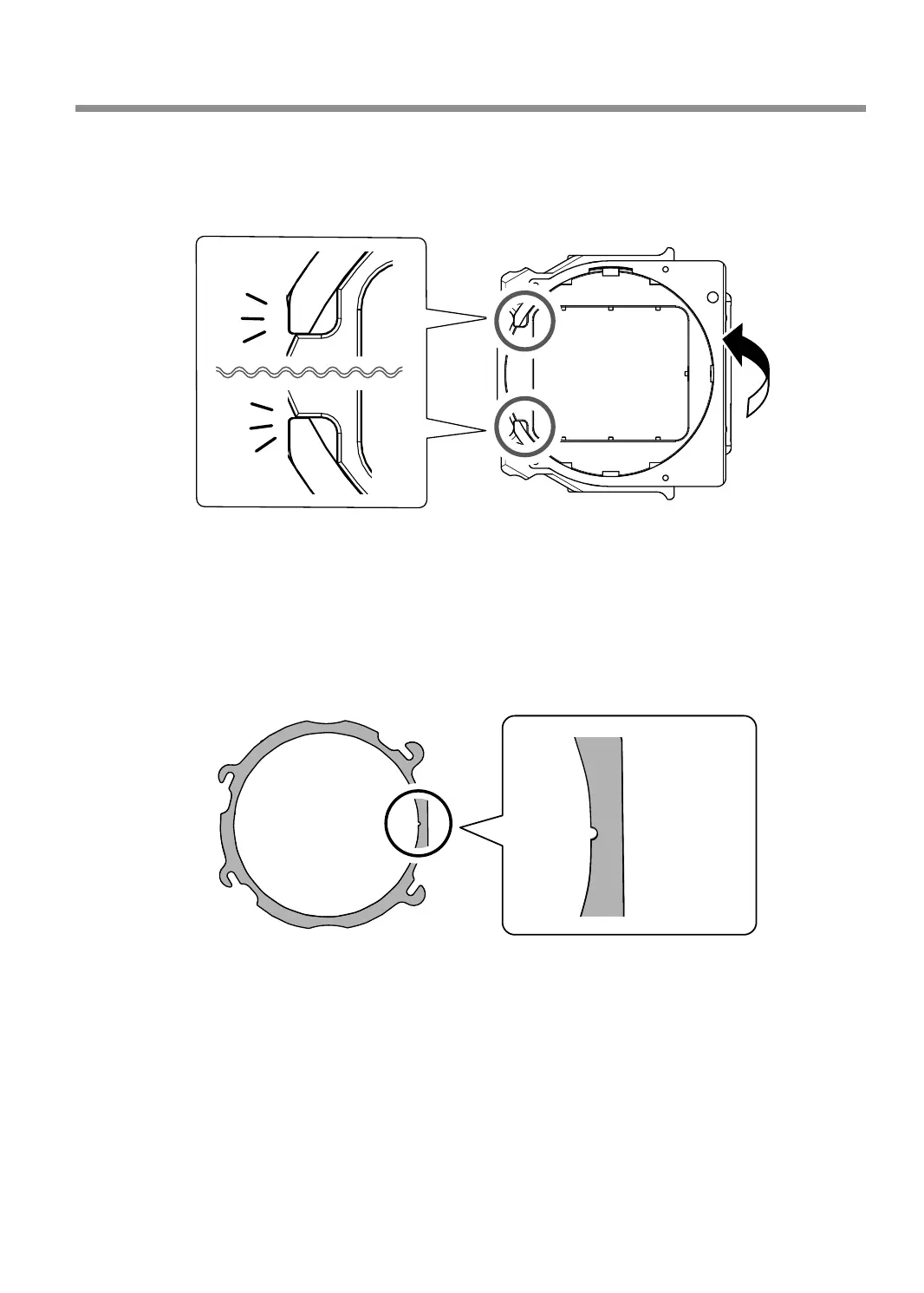

1 Orient the adapter cap removed in step
B
as shown in the following gure.
Align the
notched part on
the right side.
Starting Milling
39
Chapter 2 Milling
Align the recessed portion with the
protrusion.
