Remove the adapter cap.

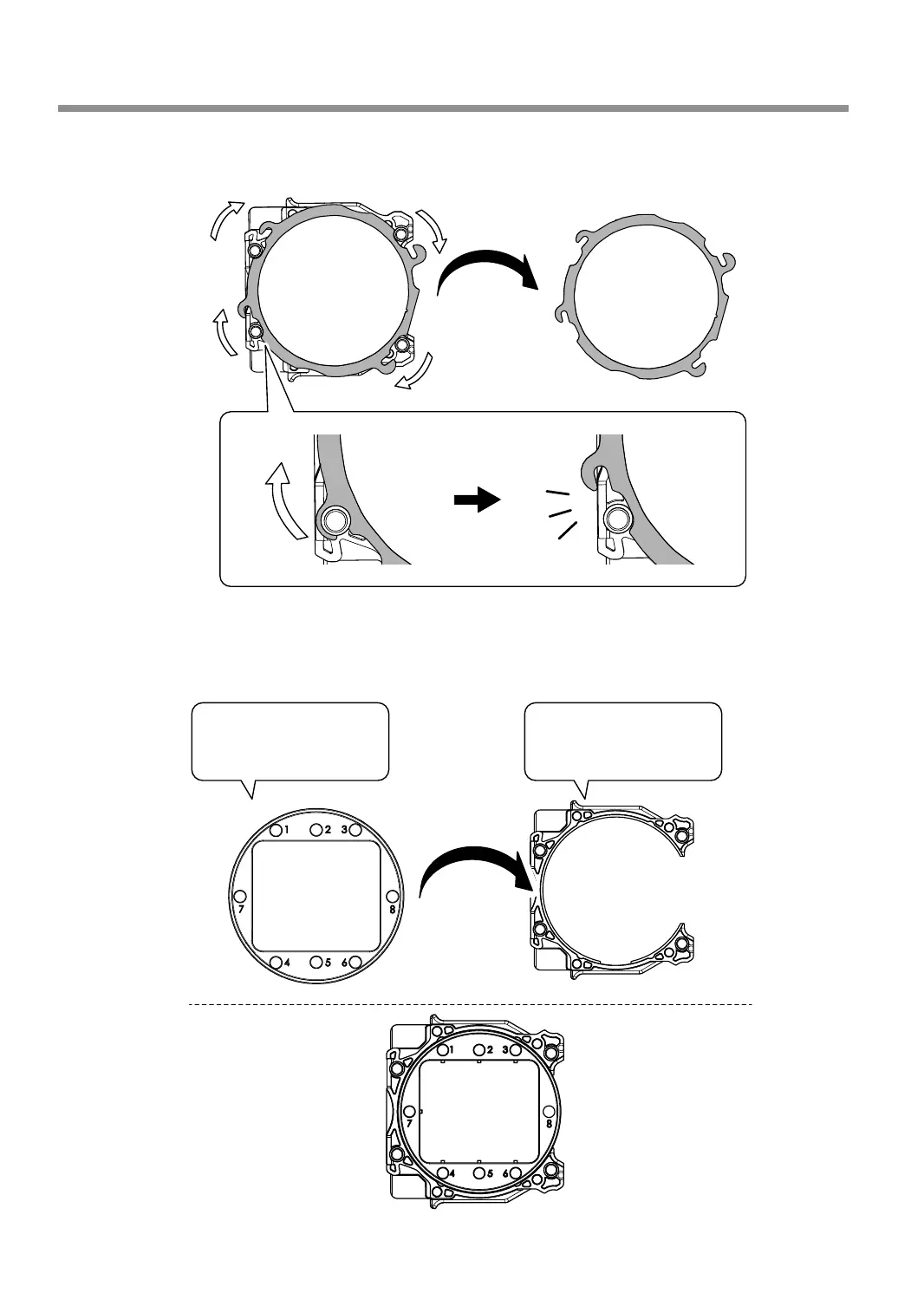

Turn the adapter cap in the direction of the arrows to remove it.
C
Mount the pin-type workpiece adapter on the adapter base.
1 Orient the pin-type workpiece adapter as shown in the following gure, and then set it
into the adapter base.
Starting Milling
38
Chapter 2 Milling
Pin-type workpiece adapter
Orient this part so that you can
read the numbers.
Adapter base
Orient this part so that it
looks like a "C."
To Next Page
