2.
Mount the workpiece on the pin-type workpiece adapter.

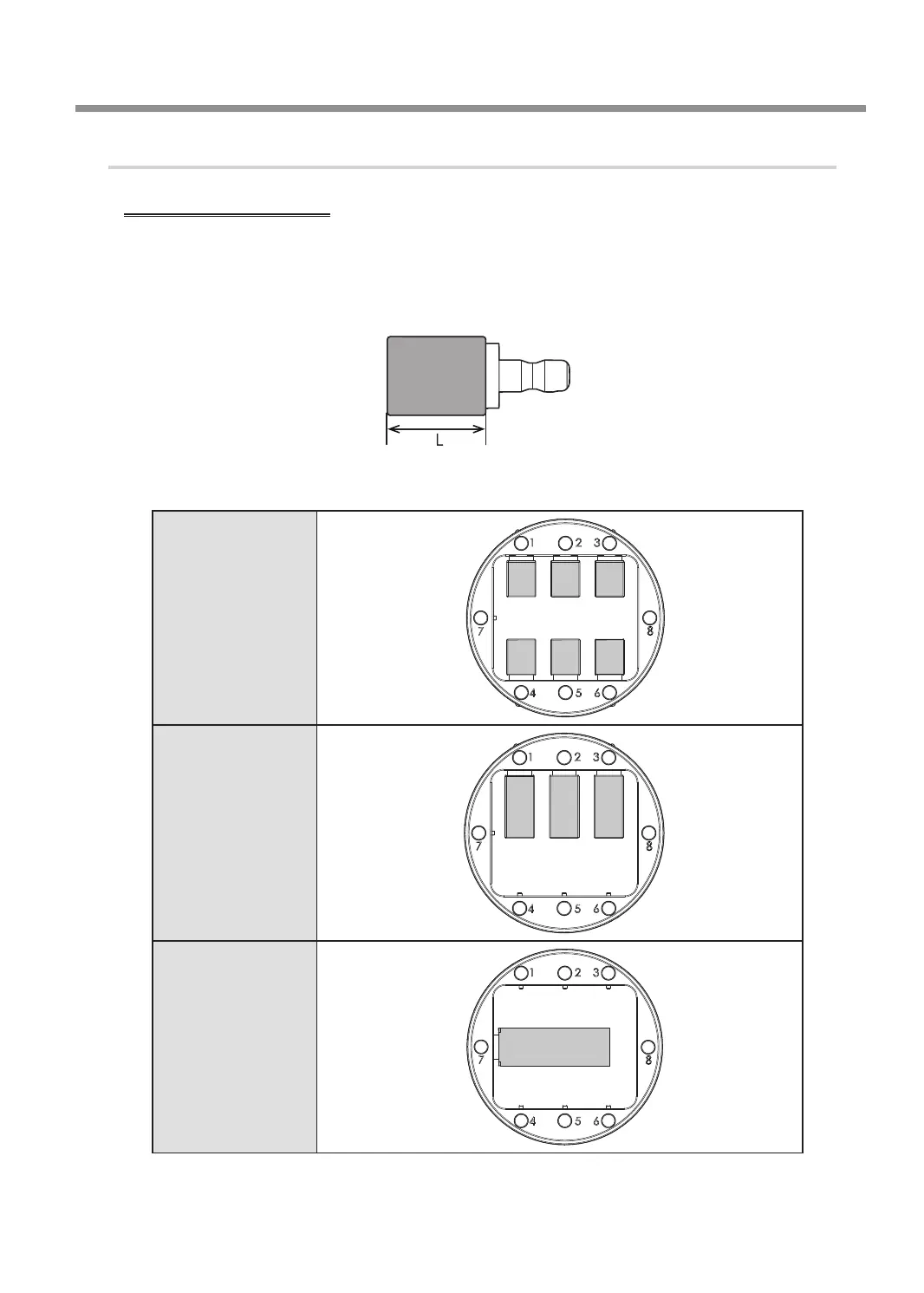

Mounting layout examples
The gure shows examples of the maximum number of workpieces that can be attached according to size. It also
shows the layouts of these workpieces. Workpiece sizes are limited by the number of workpieces mounted in
the machine, and the number of mountable workpieces is limited by the size of the workpieces mounted in the
machine.
L ≤ 20 mm
20 mm < L ≤ 50 mm
50 mm < L
