Components description | 8
AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM 115
TheactiveF/RfunctionLED"9"andtheactivecontinuousoilfunctionLED"8",flashwhentherelatedfunction
isbeingused.
WARNING
The F/R roller and the N button do not need the deadman enable to operate
To enable the F/R roller (forward / backward) is necessary to maintain the movement of the selector lever
in N.
The controls given by the movement selector lever will have priority over those of the joystick.
CAUTION
The deadman joystick function prevents any accidental movements of the boom.
The Joystick is with mechanical "deadman" sensor: to enable its operation it is necessary to hold down the
deadman button "2" on the handle of the joystick itself for the duration of the operation.
Without pressing the Deadman button, all joystick functions are disabled.
WARNING
Before operating the boom, make sure that the area around the machine is clear.
Make sure that the loads to be lifted are within the machine's capacity.

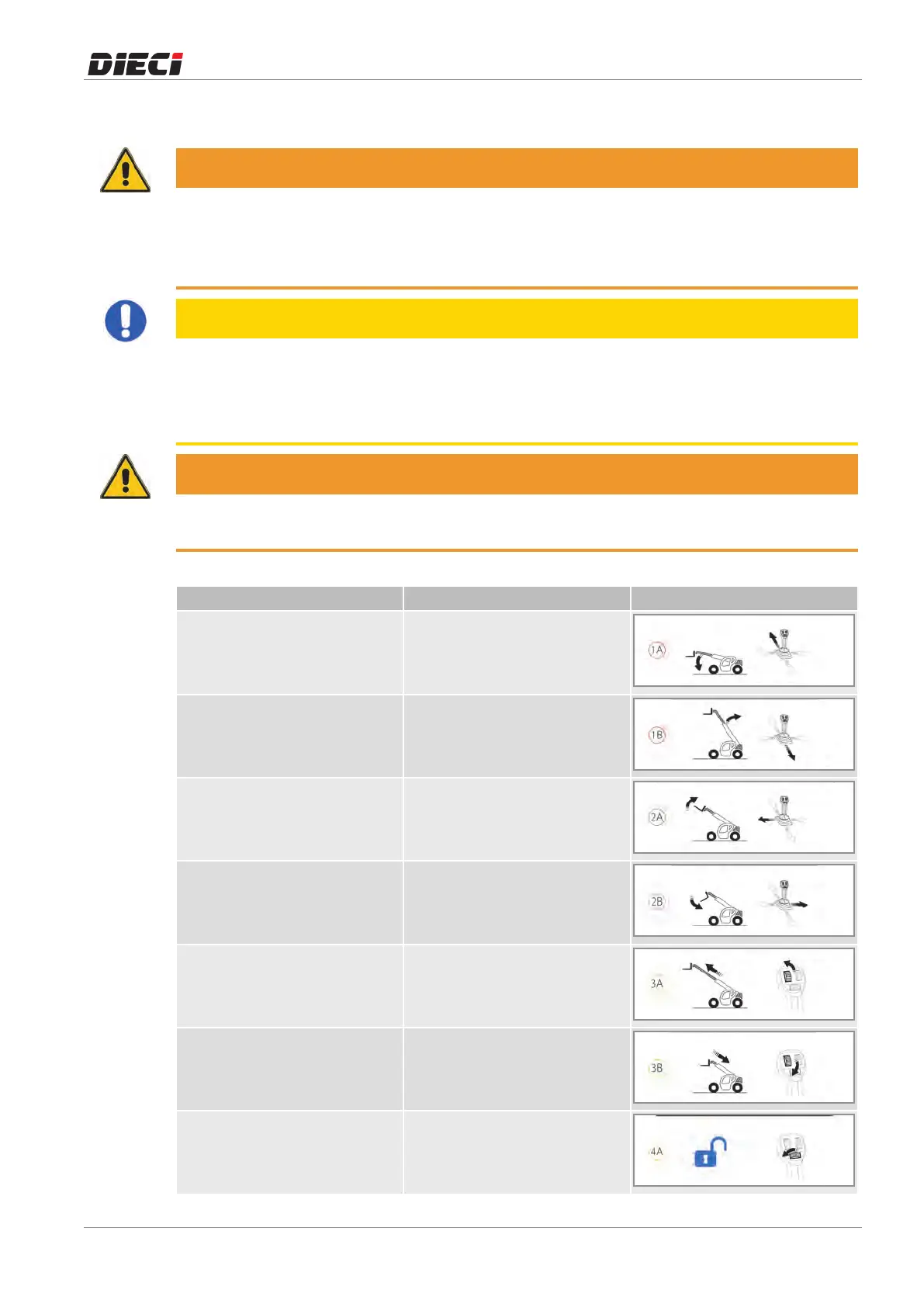

Themovementsthatarepossibleusingthejoystickare:
CONTROL MOVEMENT
Gripforwards Boomdown
Gripbackwards Boomup
Griptotheleft Tiltupwards
Griptotheright Tiltdownwards
Extension/retractionrollerforwards Boomextension
Extension/retraction roller
backwards
Boomretraction
Servicesrollerforwards Oil to the hydraulic coupler
selected(colorblueorsign“+”)
