Components description | 8
AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM 133
Knowingthearea,thefollowingwillbeknown:
– the vertical and horizontal distance to which it will be
possibletohandletheload
– theboomextensionandanglevaluesatwhichitispossible
tooperate.

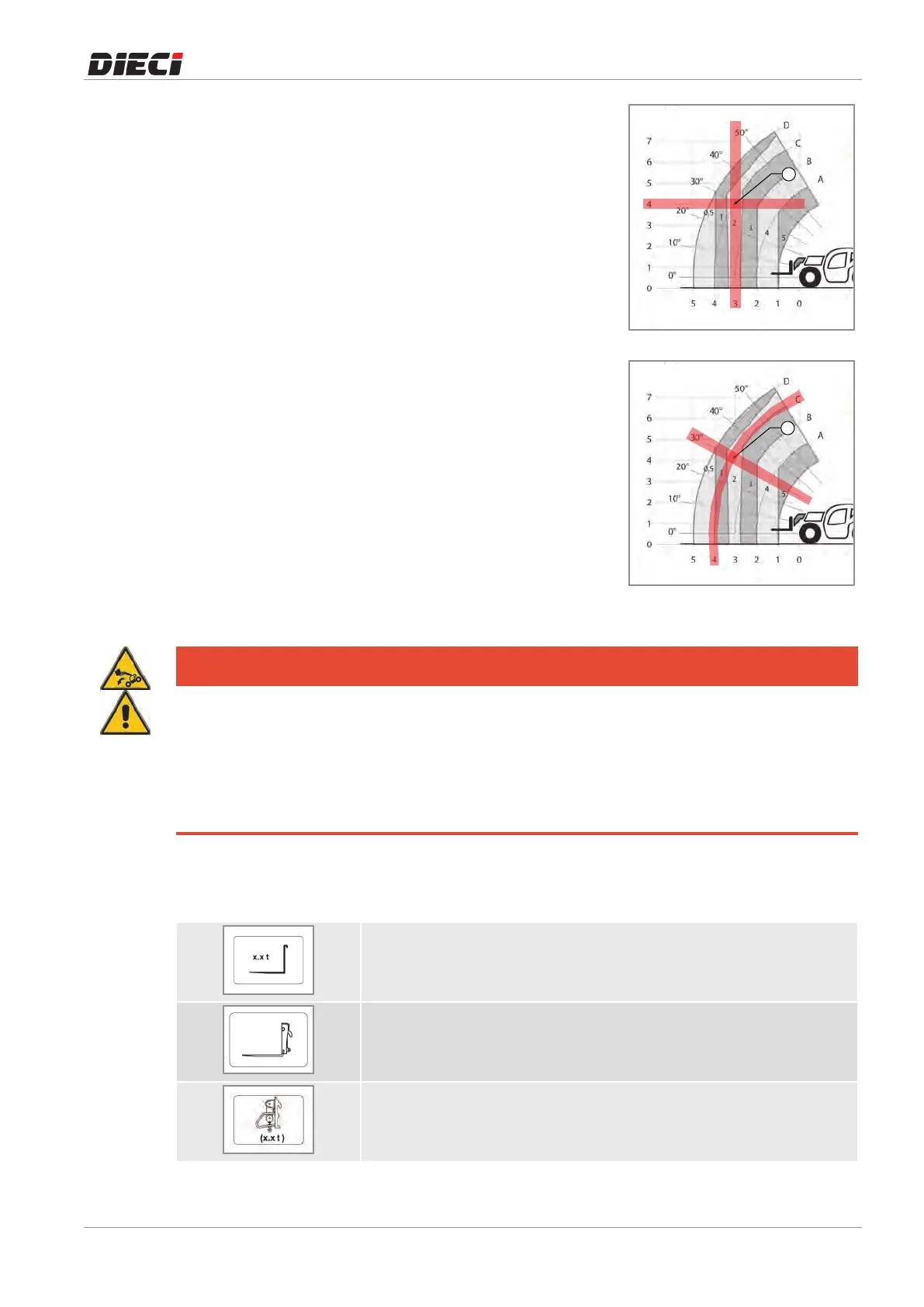

Inordertoknowtheverticalandhorizontaldistancetowhichit
will be possible to handle the load, use the horizontal and
verticallinesthatcrossthereferencearea;forexample,itwillbe
possibletocarrytheloadatadistanceof3mfromthemachine
and4minheightremaininginsafetyconditions(position“2”,fig.
1504652).
2
150465-2
To avoid operating in conditions of tipping danger, use the
boom angle and extension indications. For example, we could
operatewiththeboomextendedtoletterCatanangleof30°
(position“3”,fig.1504653).
3
150465-3
DANGER
Taking the load beyond the permissible area, we would enter in danger conditions of
tipping over and the anti-tipping device, locking all the movements considered
aggravating to the stability of the vehicle and of the load.
Use the capacity diagrams for each load handling to determine the working area.
It is possible to start operating only under safety conditions and if within the predetermined safe work
area.
8.18.1.3 Equipment legend for capacity diagrams
Forkstorque(capacity)
ForksSpreader/Translator
Winch(Capacity)
