Dot Hill Systems 4524 - Cabling Connections between a 2 U Controller Enclosure and One 2 U Drive Enclosure; Cabling Connections between a 2 U Controller Enclosure and One 4 U Drive Enclosure; Cabling Connections between a 4 U Controller Enclosure and a 4 U Drive Enclosure; Cabling Connections between a 4 U Controller Enclosure and a 2 U Drive Enclosure

42 Installing the enclosures
4004 Series controller enclosure cabled to a supported drive enclosure

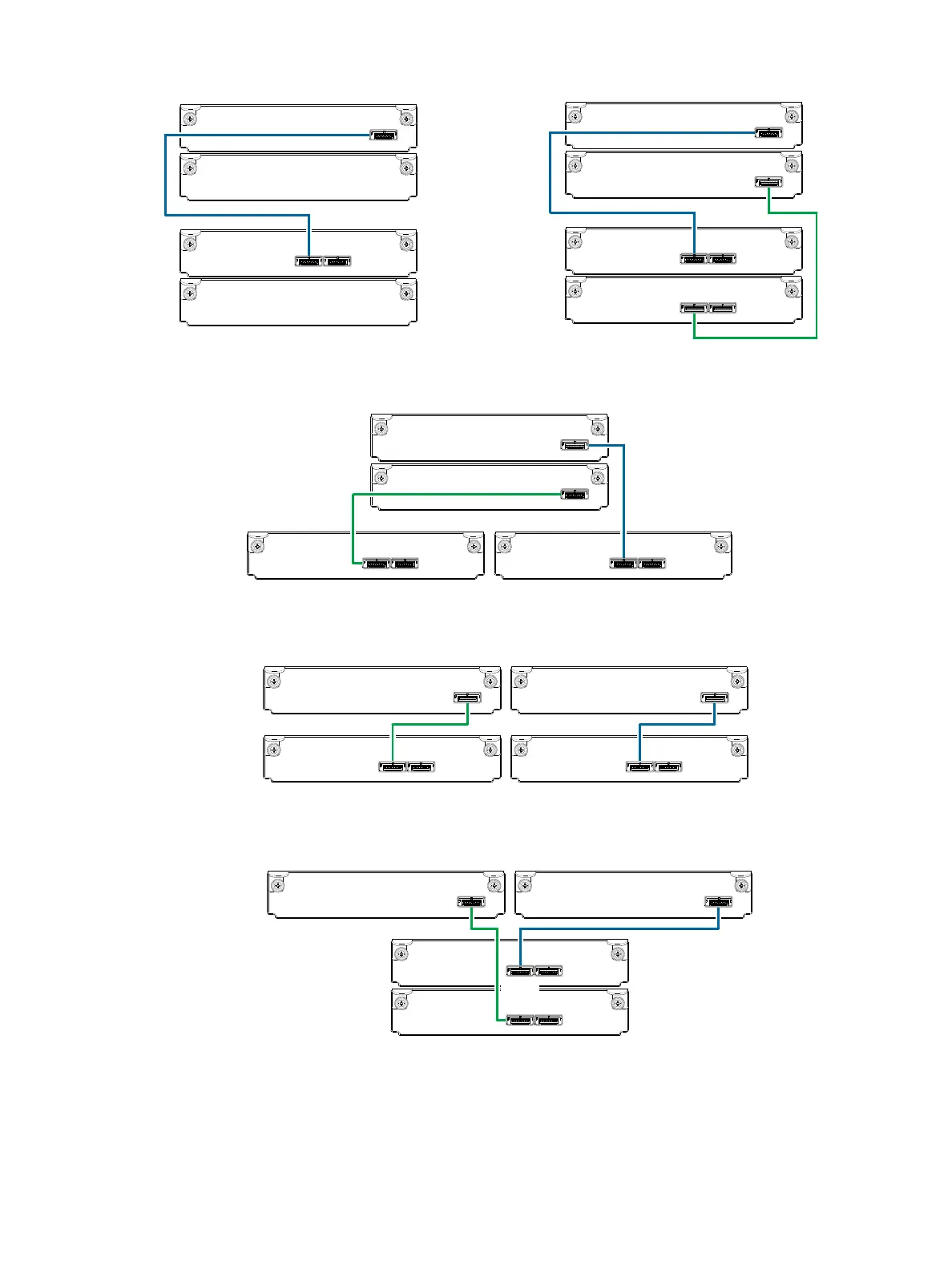

Figure 34 Cabling connections between a 2U controller enclosure and one 2U drive enclosure
Figure 35 Cabling connections between a 2U controller enclosure and one 4U drive enclosure
Figure 36 Cabling connections between a 4U controller enclosure and a 4U drive enclosure
Figure 37 Cabling connections between a 4U controller enclosure and a 2U drive enclosure
Controller
enclosure
0
Drive
enclosure
1
In Out
0B
0A
1A
1B
Controller A
IOM blank
Enclosures equipped with single IOM
In Out
In Out
0B
0A
1A
1B
Controller A
Controller B
Enclosures equipped with dual IOMs
IOM blank
1B
In Out
In
Out
0B
0A
1A
Controller A
Controller B
Enclosures equipped with dual IOMs
Controller
enclosure
0
Drive
enclosure
1
Controller
enclosure
0
Drive
enclosure
In Out In Out
0B
0A
1A
1B
Controller A
Controller B
1
Enclosures equipped with dual IOMs
Controller
enclosure
0
Drive
enclosure
In Out
Out
0B
0A
1A
1B
Controller A
Controller B
1
In
Enclosures equipped with dual IOMs
