Mototelaio
Frame
sezione / section
H 6
19
A
B
C
D
E
F
G
H
L
M
N
P
edizione/edition 03-03

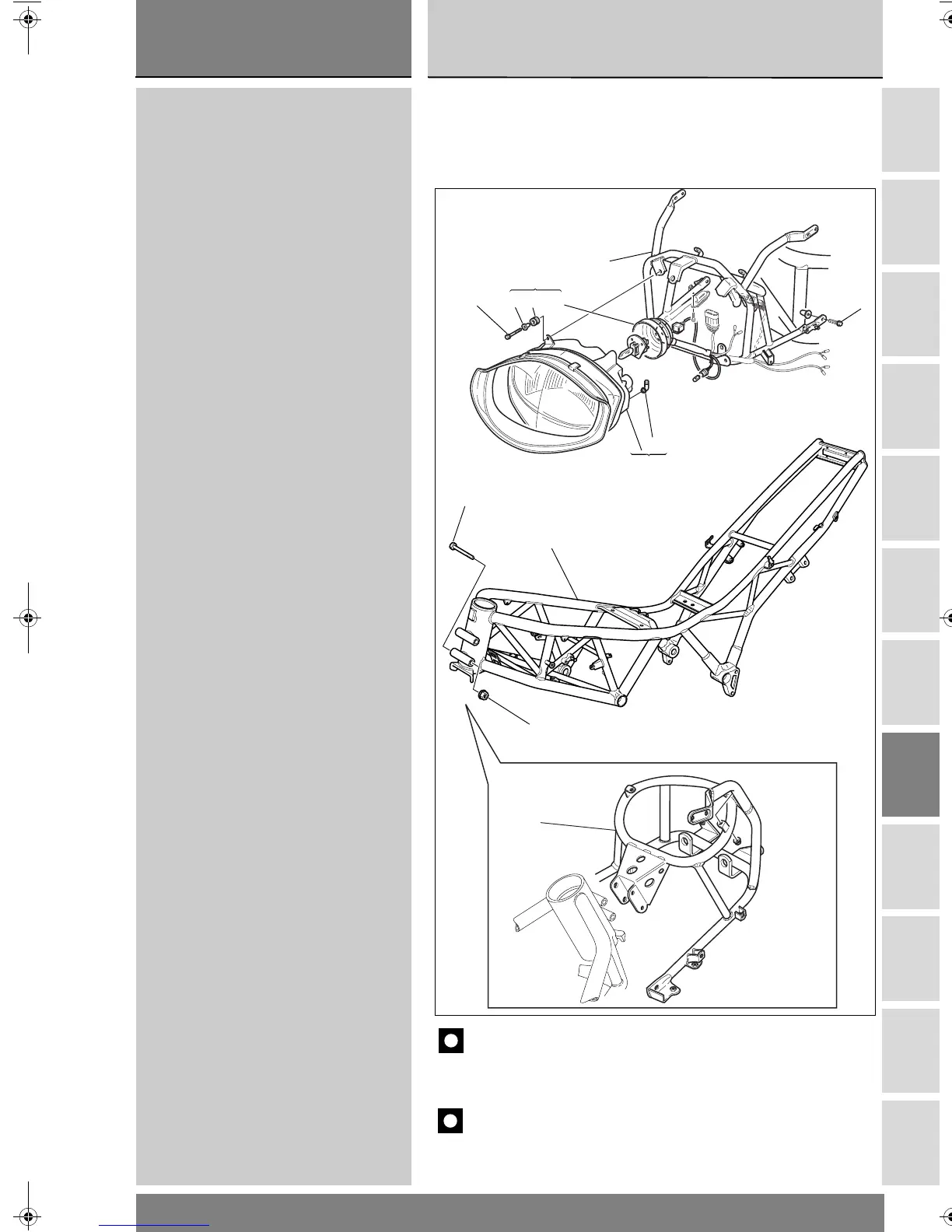

6 - CONTROLLO TELAIO
1 Telaio
2 Supporto fanale
3 Fanale completo
4 Pipetta in gomma
5Vite
6 Distanziale
7 Gommino antivibrante
8 Cuffia fanale
9Vite
10 Vite
11 Dado
1
2
11
3
3
4
2
5678
9
10
6 - FRAME INSPECTION
1Frame
2 Headlight support
3 Complete headlight
4 Rubber plug
5Screw
6 Spacer
7 Vibration damping pad
8 Light cover
9Screw
10 Screw
11 Nut
Importante
I riferimenti in grassetto all’interno di questo capitolo indicano che i
particolari richiamati non sono presenti nelle immagini a fianco del testo, ma
devono essere ricercati nella presente tavola esplosa.
Caution
Bold reference numbers in this section identify parts shown in this
exploded view diagram. These parts do not appear in the figures near the
text.
