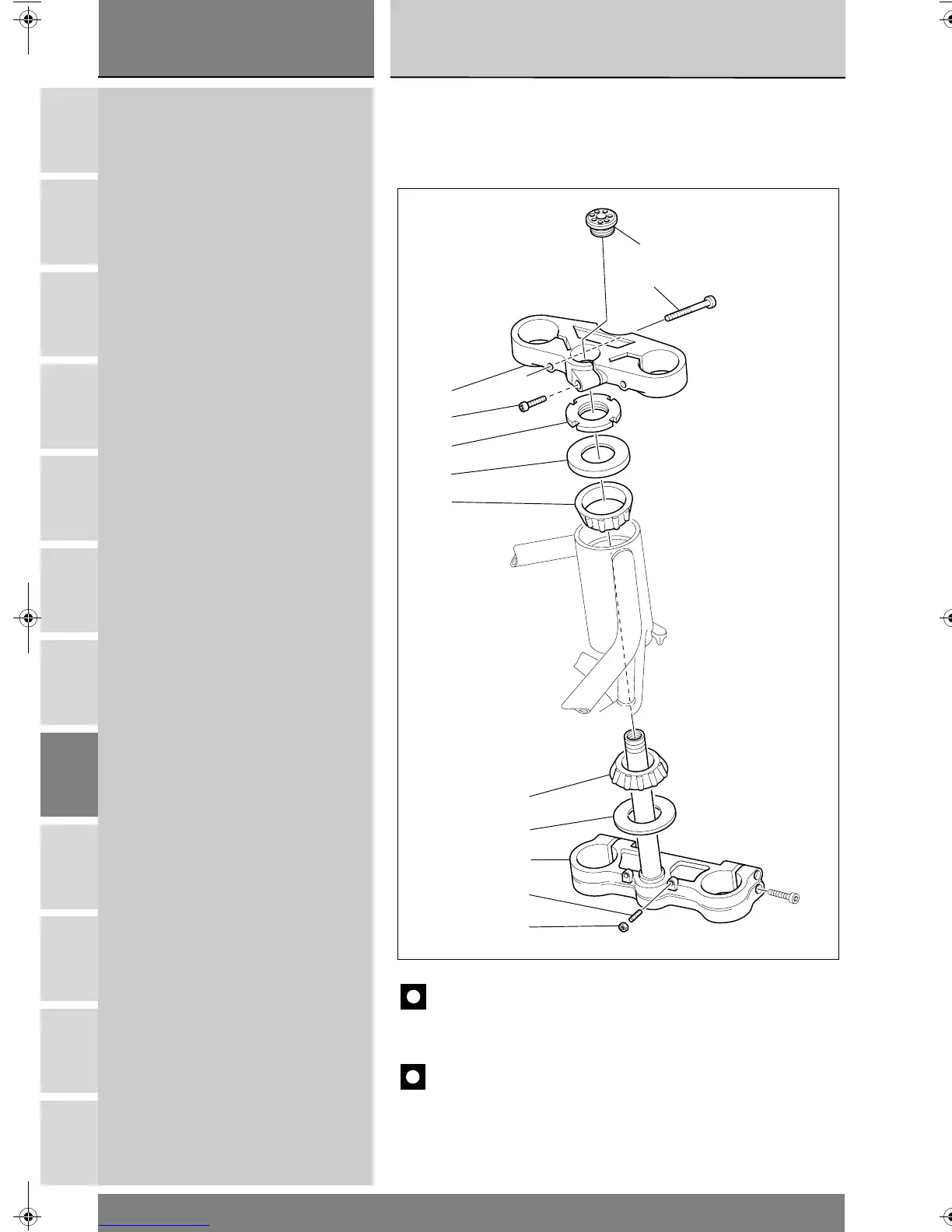

2 - STERZO
1Vite
2 Testa di sterzo
3 Tappo
4 Ghiera
5 Cuscinetto
6 Cuscinetto
7 Rondella speciale
8 Rosetta
9 Base di sterzo
10 Vite speciale
11 Dado
12 Vite
2
1
4
7
5
6
8
9
10
11
3
12
2 - STEERING
1 Screw
2 Steering head
3Cap
4 Ring nut
5Bearing
6 Bearing
7 Special washer
8 Washer
9 Bottom yoke
10 Special screw
11 Nut
12 Screw
Importante
I riferimenti in grassetto all’interno di questo capitolo indicano che i
particolari richiamati non sono presenti nelle immagini a fianco del testo, ma
devono essere ricercati nella presente tavola esplosa.
Caution
Bold reference numbers in this section identify parts shown in this
exploded view diagram. These parts do not appear in the figures near the
text.
