Maintenance
Operating Instructions 581 - 01.0 - 05/2016126

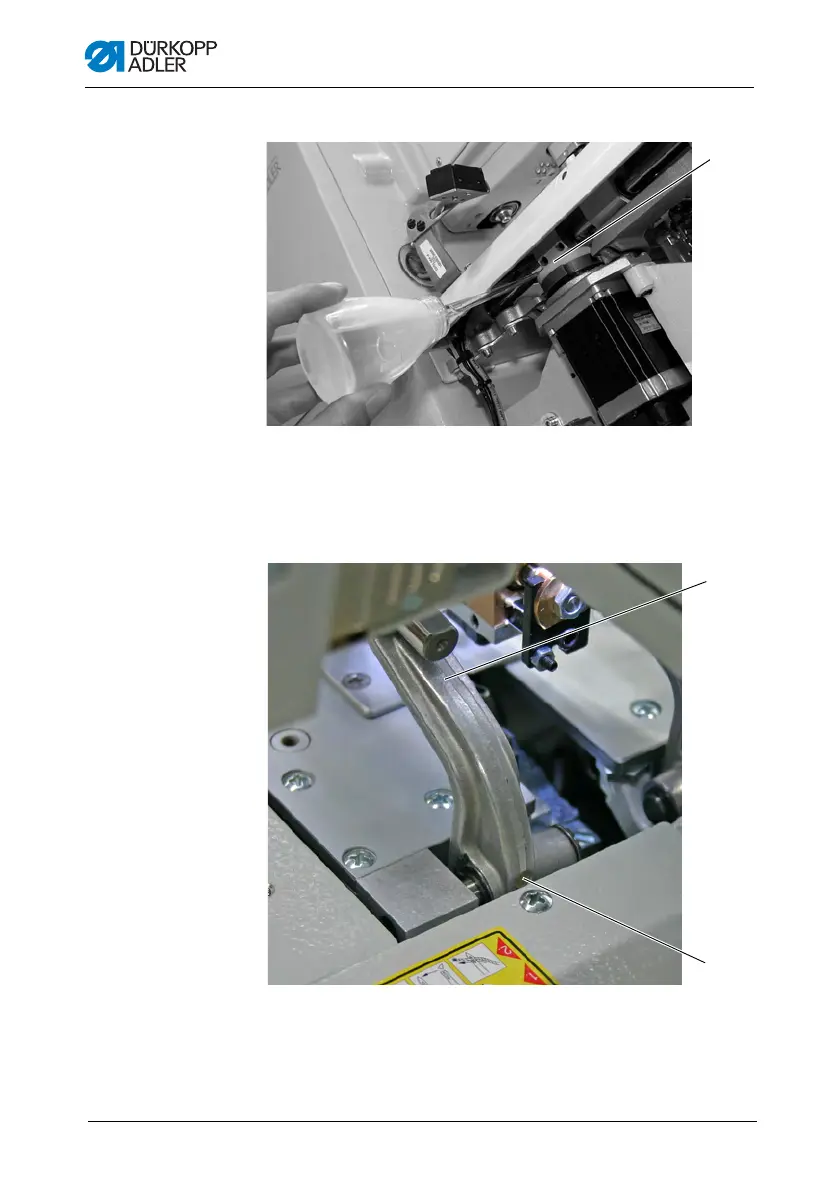

Fig. 75: Lubricating (2)
2. Lubricate the felt at the cam plate (2).
Fig. 76: Lubricating (3)
3. Lubricate the felts (3) of the clamping arms (4).
(2) - Cam disk
(3) - Felt (4) - Clamping arm
