Operation
Operating Instructions 581 - 01.0 - 05/2016 37
4.10 Removing and fitting clamping plates
Removing clamping plates

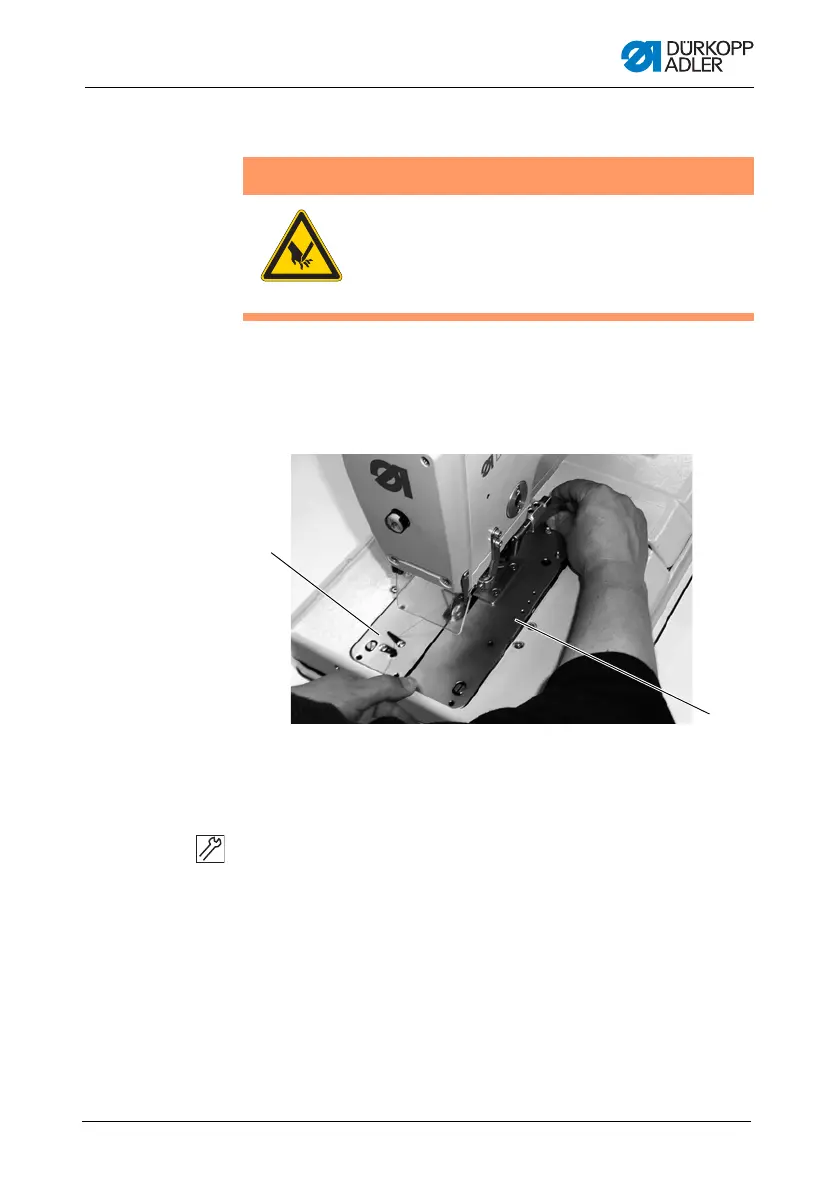

Fig. 25: Removing clamping plates
To remove the clamping plates:
1. Slightly raise the right clamping plate (2) at the back and pull
it backwards.
2. Remove the clamping plate (2) sideways to the right.
3. Slightly raise the left clamping plate (1) at the back and pull
it b
ackwards.
4. Remove the clamping plate (1) sideways to the left.
WARNING
Risk of injury from sharp parts!
Punctures possible.
Remove and fit the clamping plates when the
mach
ine is switched off or in threading mode.
(1) - Clamping plate, left (2) - Clamping plate, right
