DURKOPP ADLER 581 - Subclass with Multiflex

Maintenance
Operating Instructions 581 - 01.0 - 05/2016132
6.4.2 Subclass with Multiflex
Changing the cutting block

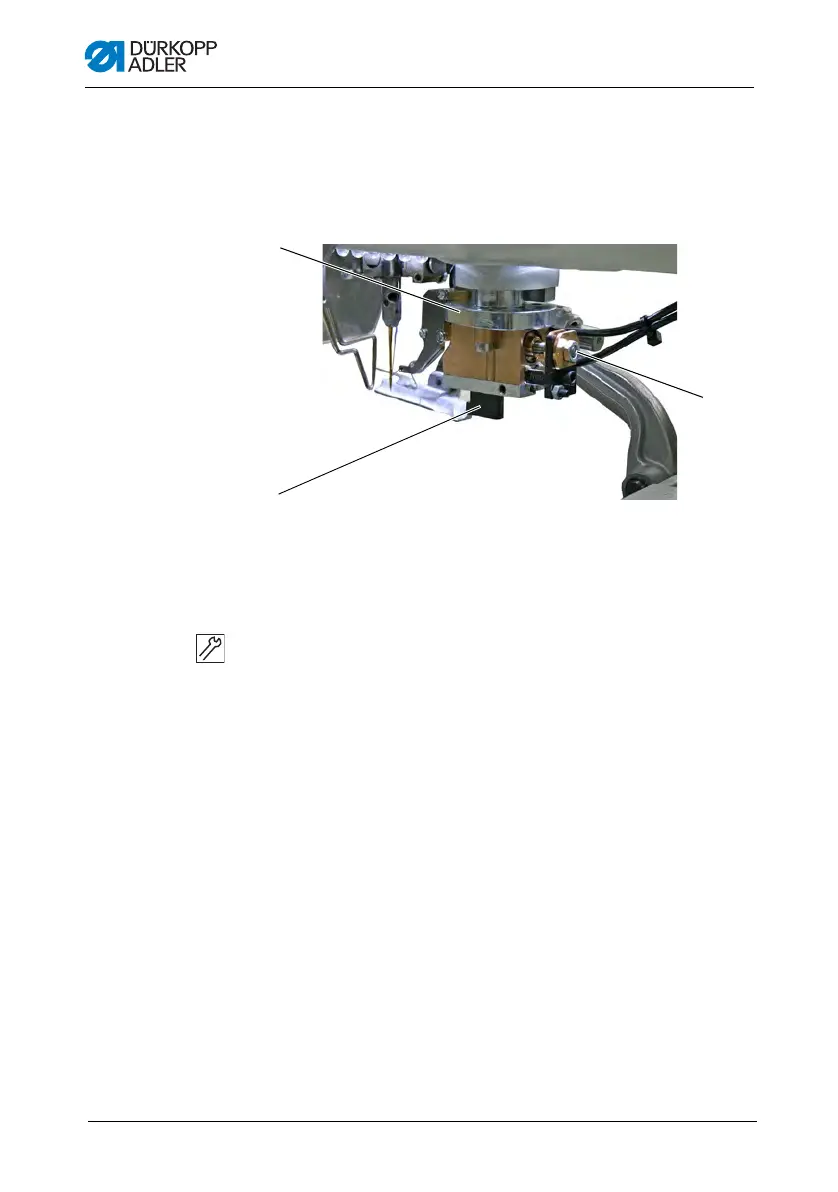

Fig. 81: Changing the cutting block (multiflex)
To replace the cutting block:
1. Remove compressed air supply hose ( p. 146).
2. Press the cutting block holder (1) down carefully with a screw-
driver.
3. Loosen the screw (3).
4. Pull the cutting block (2) out to the left.
5. Push the new cutting block (2) into the guide and tighten the
scr
ew (3).
6. Reconnect the compressed air hose.
When the compressed air is connected ( p. 146), the cutting
block holder automatically moves back up.
(1) - Cutting block holder
(2) - Cutting block
(3) - Screw
③
①
②
