7.6 Assembling the reel stand

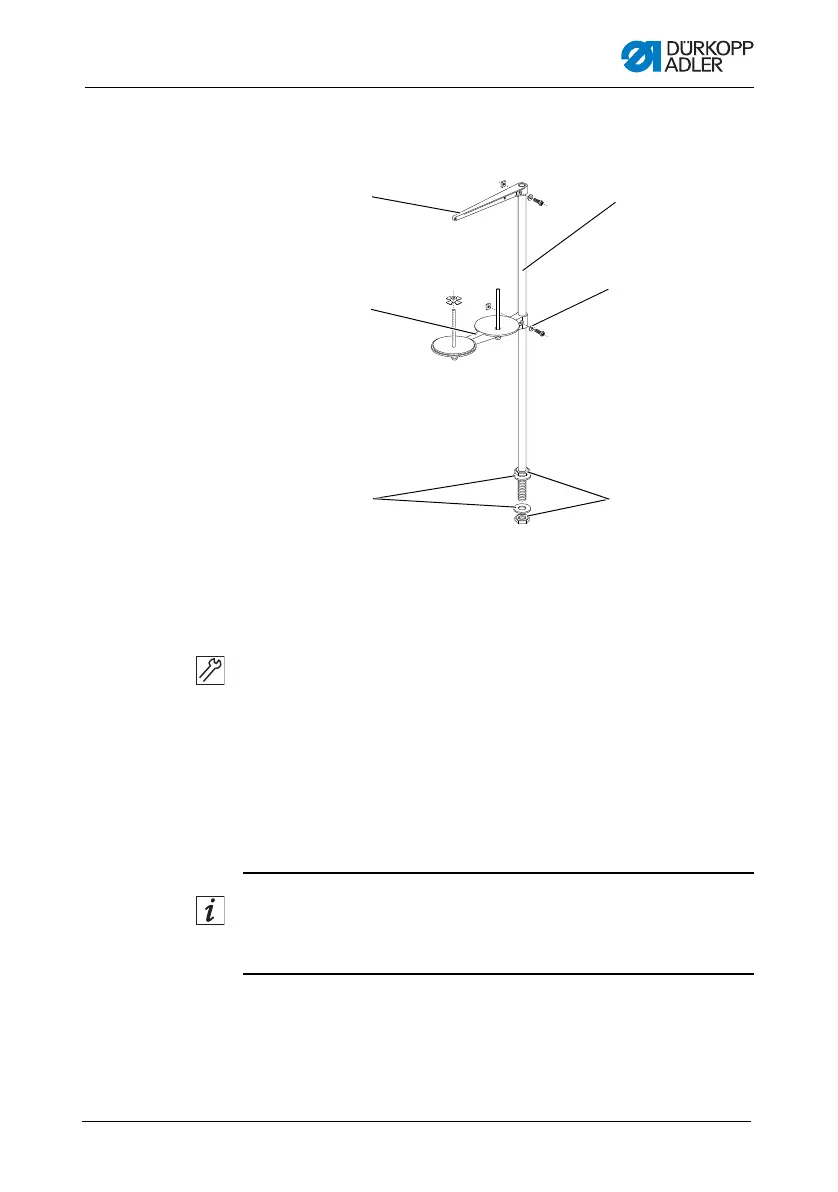

Fig. 87: Assembling the reel stand
To assemble the reel stand:
1. Insert the reel stand (6) into the hole of the tabletop and secure
with nut
s (4) and washers (3).
2. Assemble the thread reel holder (2).
3. Assemble the thread guide (1).
4. Align the thread reel holder (2) and thread guide (1) so that
th
read reel holder and thread guide are parallel to one another.
Information
You must set the centering piece to suit the type of thread reel.
Incorrect settings can result in sewing disruptions.
(1) - Thread guide
(2) - Thread reel holder
(3) - Washers
(4) - Nuts
(5) - Washer
(6) - Reel stand
