Setup
Operating Instructions 581 - 01.0 - 05/2016 137

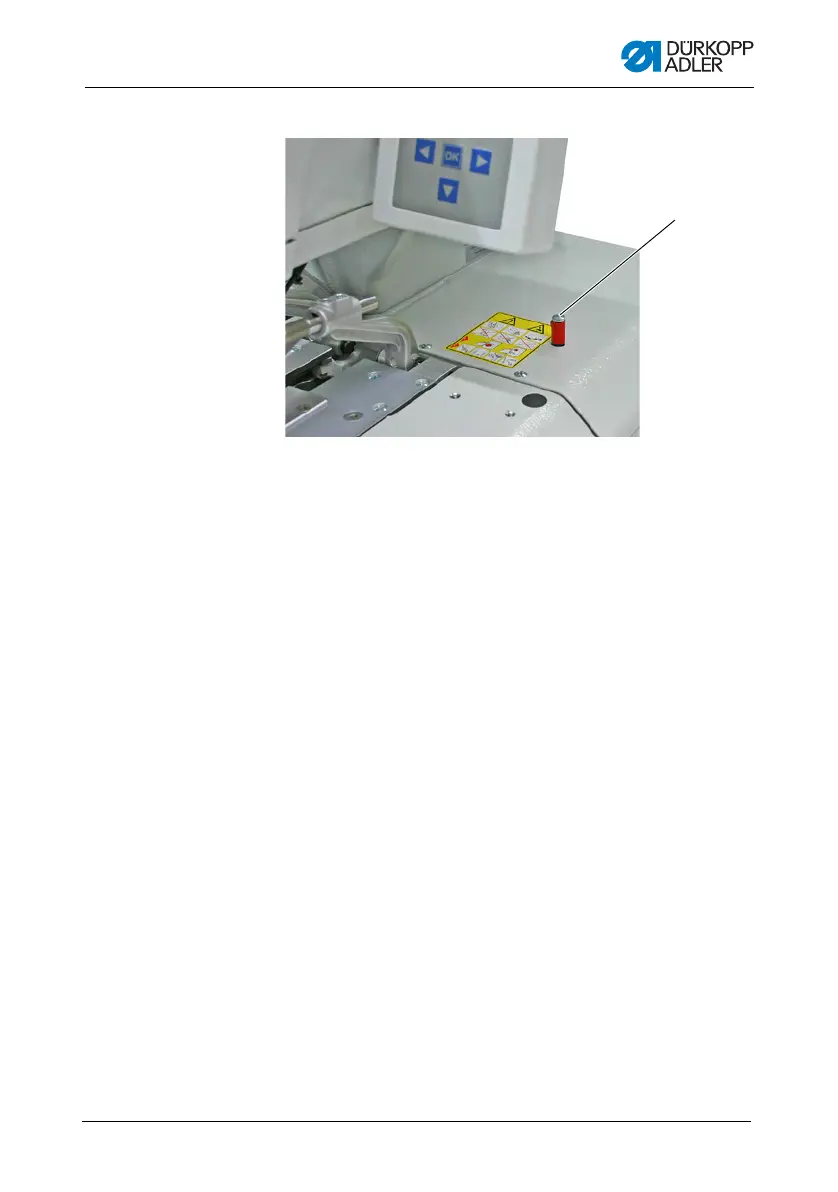

Fig. 85: Removing the transport lock of the machine table
4. Remove the screw (3).
7.3 Assembling the stand
It you ordered the stand matching the machine, use the ring bolt
to insert the machine ( p. 138).
If you would like to use a different stand, you must perform the
fol
lowing work independently:
• Assemble the main switch (Additio
nal Instructions Connecting
the control box at the main switch)
• Assemble the tabletop ( p. 137)
• Assemble the compressed air maintenance unit ( p. 147)
7.4 Assembling the tabletop
If you want to make your own tabletop, use the drawing ( p. 185)
as a template for the dimensions. The tabletop should be approx.
40 m
m thick.
(3) - Screw
