Note:
Video printer(SONY UP-X898MD) and DVD drive(LITEON eBAU108) can be mounted to the
ultrasound system by attaching to the bottom of the storage tray(as shown in figure 3-4) with the use
of an optional metal frame.

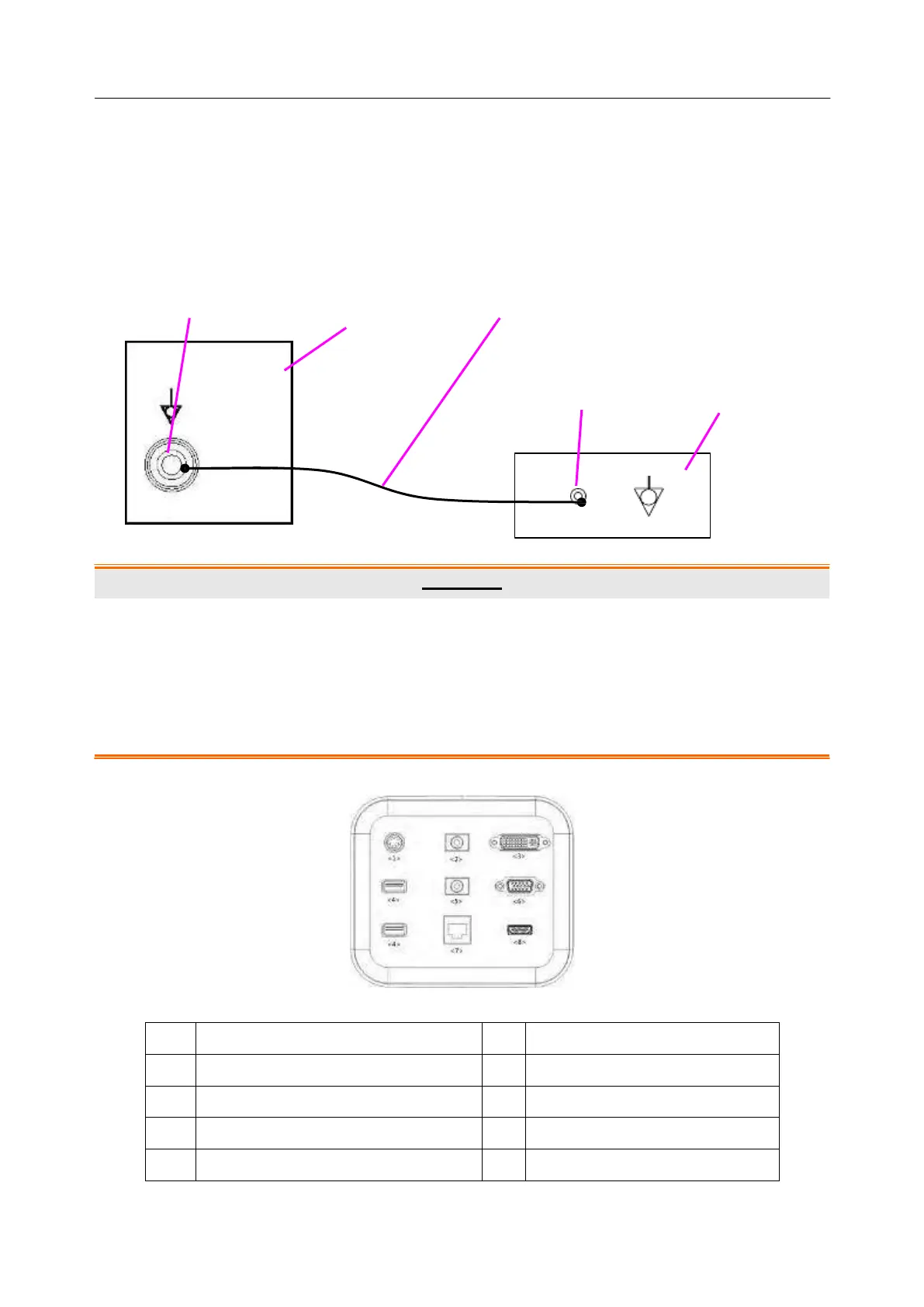

Equipotential Connection
The equipotential terminal is used for balancing the protective earth potentials between the ultrasound
system and other electrical devices. Perform the equipotential connection as the following illustration.
1. When you connect another device to the ultrasound system, a potential equalization conductor
should be used to connect each of the equipotential terminals. Otherwise, electric shock may
result.
2. Any device connected to the ultrasound system must meet the requirements of the applicable
IEC/EN60601 series safety standards, and/or the system configuration must meet the
requirements of the IEC/EN60601-1.
I/O Ports on the Rear Panel
Figure 3-5 I/O ports
No.
Description
No.
Description
1
S-Video output port
2
Audio output port
3
DVI port
4
USB port
5
Microphone port
6
VGA port
7
Network Port
8
HDMI port
Table 3-6 I/O ports description
Equipotential terminal
Rear panel
Potential equalization conductor
Equipotential terminal Another device
WARNING
