Acclarix LX9 Series Diagnostic Ultrasound System User Manual
There are two image modes: Volume imaging mode and multi-slice imaging mode. Figure 5-3 shows
Volume Imaging Mode in quad screen with a Baby Face volume rendering.
Quadrant A shows a slice through the data that mimics the original ultrasound image.
Quadrant B is orthogonal to A, as if the transducer had been rotated 90 degrees.
Quadrant C is orthogonal to A and B, showing a slice that is parallel to the transducer face.
The icon at the bottom-right shows the position of each slice with respect to the full 3D data set.

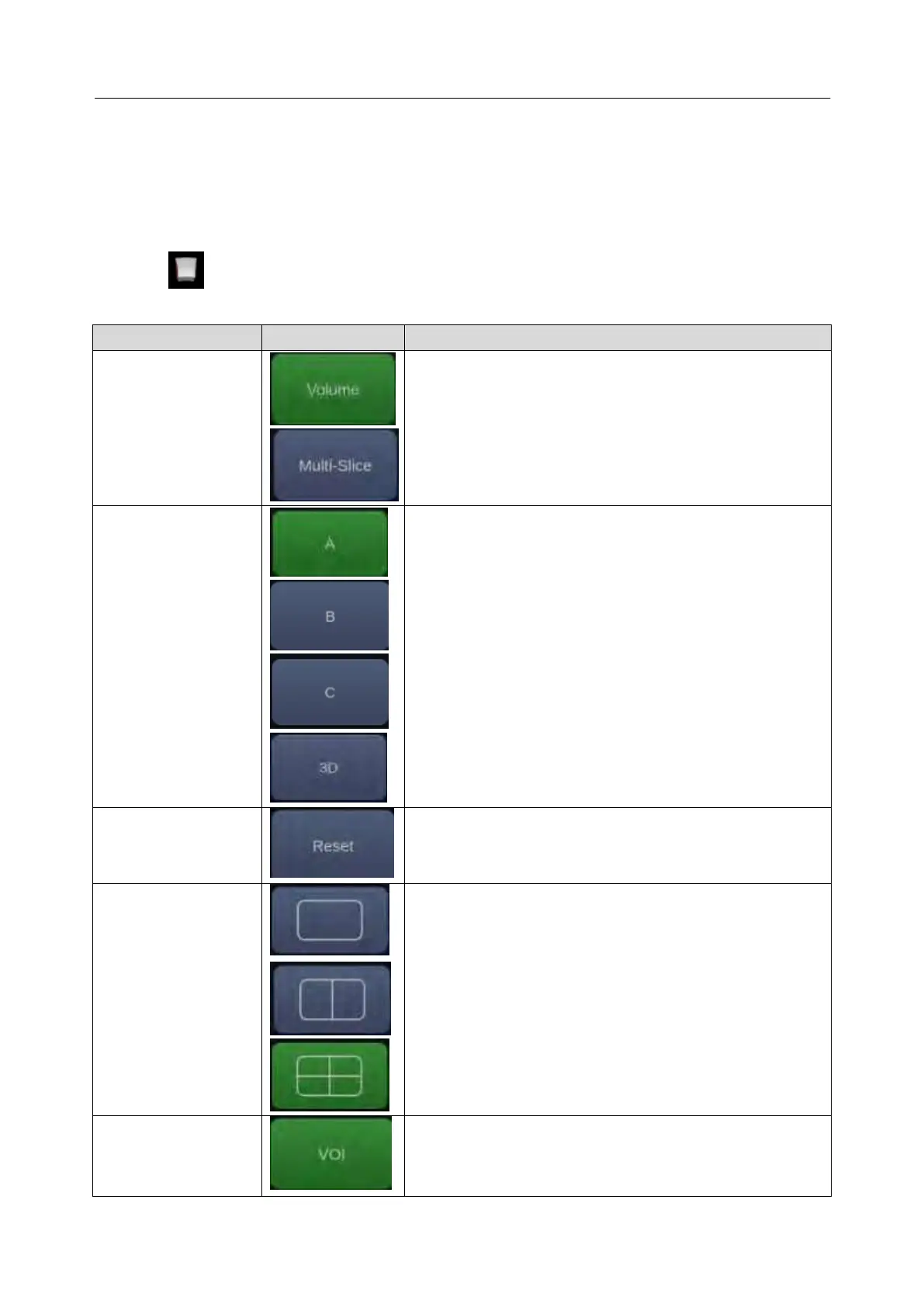

The following table shows the touch screen controls that are available in Volume Imaging Mode
These two radio buttons toggle between the Volume
display and the Multi-Slice display.
These four radio buttons select which quadrant is the
focus of the navigation/panning controls. A/B/C are
three orthogonal slices through the volume, while „3D‟ is
the rendered image.
Reset the operation of pan, rotate and zoom to the initial
condition.
These three radio buttons switch the display to show 1,
2, or 4 images at once. Single shows the 3D image, dual
shows the A slice and 3D image, Quad shows three MPR
slices and 3D image.
Press to activate the function of adjusting VOI or clip
plane. Use the trackball to adjust and press <Set> to
switch between VOI and clip plane.
