Adjust the Gamma of 3D image.
Table 5-8 Volume imaging Mode Touch Screen
Image area and touch screen controls in multi-slice imaging mode:

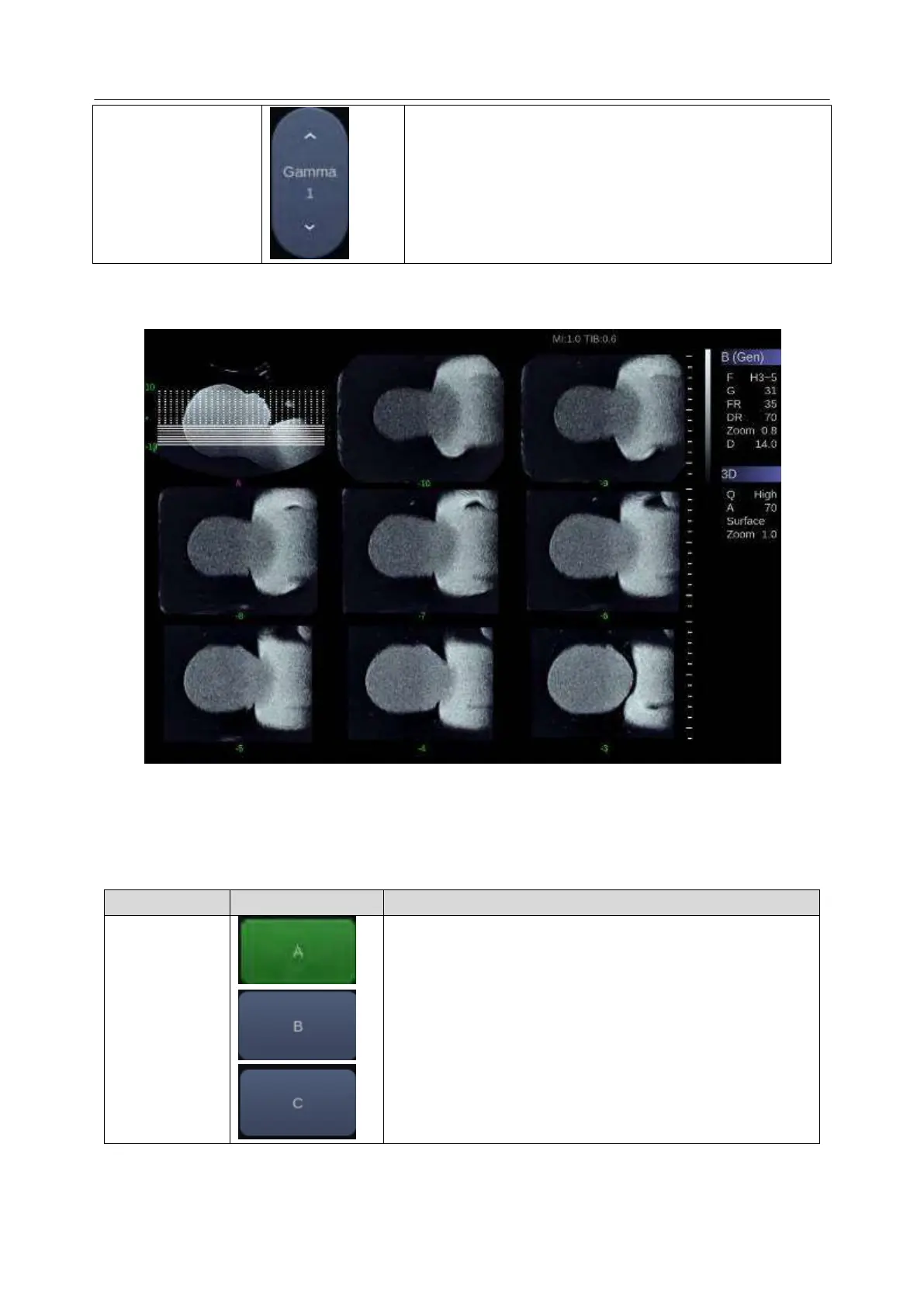

Figure 5-4 Multi-slice Imaging Mode
In figure 5-4, the first image shows the basis slice, other images are orthogonal to the basis slice and
parallel to each other. Lines on the basis slice indicate the locations of the parallel slices. If there are
more slices than images then the un-displayed slices are shown with a dotted line. A number below
each parallel slice shows the slice location in the basis slice, with 0 being the middle slice.
These three radio buttons determine which slice is the
required parallel slice. These three choices are the same
as on the Volume display in quad mode.
