C
HAPTER
14
| Basic Administration Protocols
Link Layer Discovery Protocol
– 442 –
Additional information displayed by an end-point device which advertises
LLDP-MED TLVs is shown in the following figure.

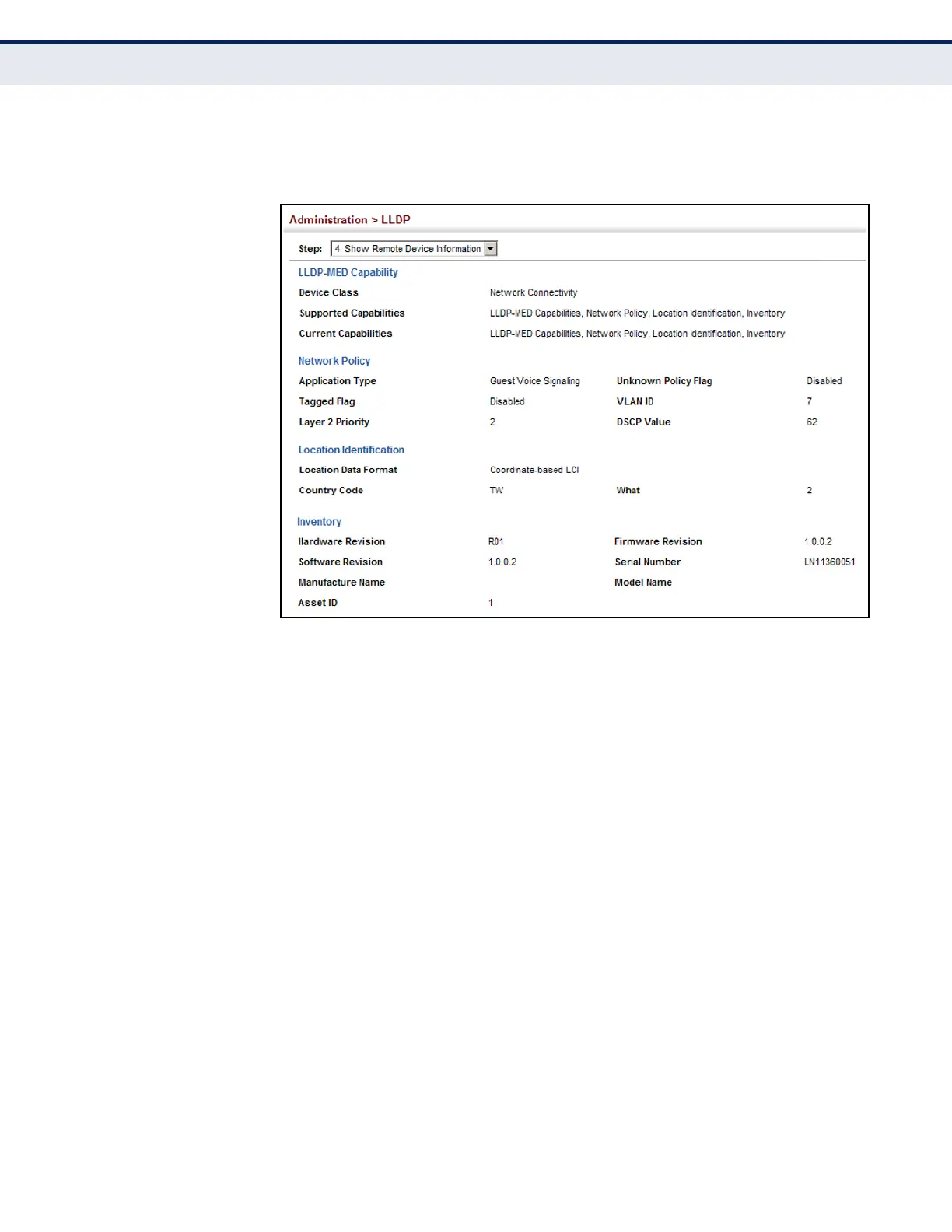

Figure 241: Displaying Remote Device Information for LLDP (End Node)
DISPLAYING
DEVICE STATISTICS
Use the Administration > LLDP (Show Device Statistics) page to display
statistics for LLDP-capable devices attached to the switch, and for LLDP
protocol messages transmitted or received on all local interfaces.
CLI REFERENCES
◆ "show lldp info statistics" on page 1309
PARAMETERS
These parameters are displayed:
General Statistics on Remote Devices
◆ Neighbor Entries List Last Updated – The time the LLDP neighbor
entry list was last updated.
◆ New Neighbor Entries Count – The number of LLDP neighbors for
which the remote TTL has not yet expired.
◆ Neighbor Entries Deleted Count – The number of LLDP neighbors
which have been removed from the LLDP remote systems MIB for any
reason.
◆ Neighbor Entries Dropped Count – The number of times which the
remote database on this switch dropped an LLDPDU because of
insufficient resources.
