C
HAPTER
14
| Basic Administration Protocols
Switch Clustering
– 484 –
WEB INTERFACE
To configure a switch cluster:
1. Click Administration, Cluster.
2. Select Configure Global from the Step list.
3. Set the required attributes for a Commander or a managed candidate.
4. Click Apply

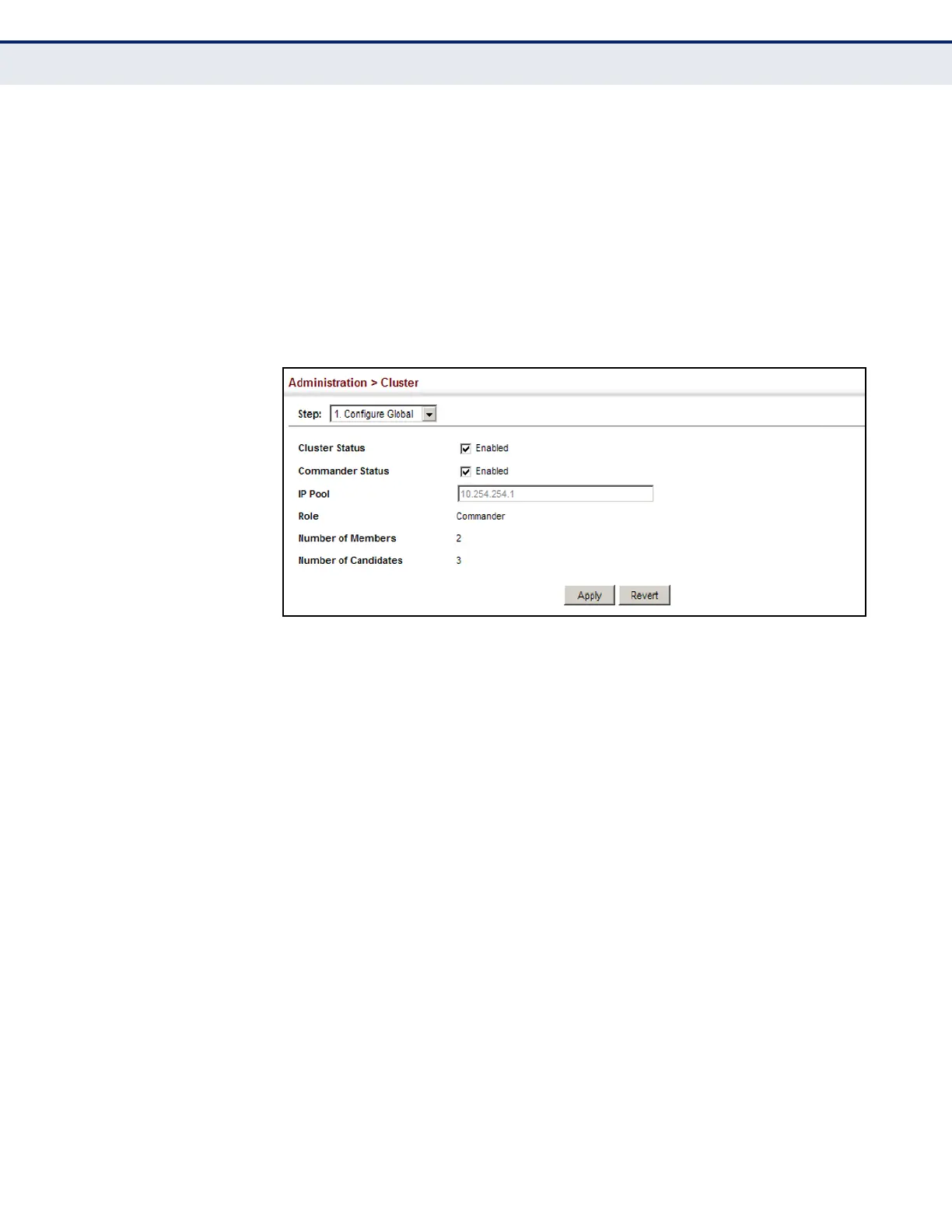

Figure 277: Configuring a Switch Cluster
CLUSTER MEMBER
CONFIGURATION
Use the Administration > Cluster (Configure Member - Add) page to add
Candidate switches to the cluster as Members.
CLI REFERENCES
â—† "Switch Clustering" on page 765
PARAMETERS
These parameters are displayed:
◆ Member ID – Specify a Member ID number for the selected Candidate
switch. (Range: 1-36)
◆ MAC Address – Select a discovered switch MAC address from the
Candidate Table, or enter a specific MAC address of a known switch.
