| Basic Administration Protocols
Ethernet Ring Protection Switching
– 506 –
◆ RPL – If node is connected to the RPL, this shows by which interface.
WEB INTERFACE
To create an ERPS ring:
1. Click Administration, ERPS.
2. Select Configure Domain from the Step list.
3. Select Add from the Action list.
4. Enter a name and optional identifier for the ring.
5. Click Apply.

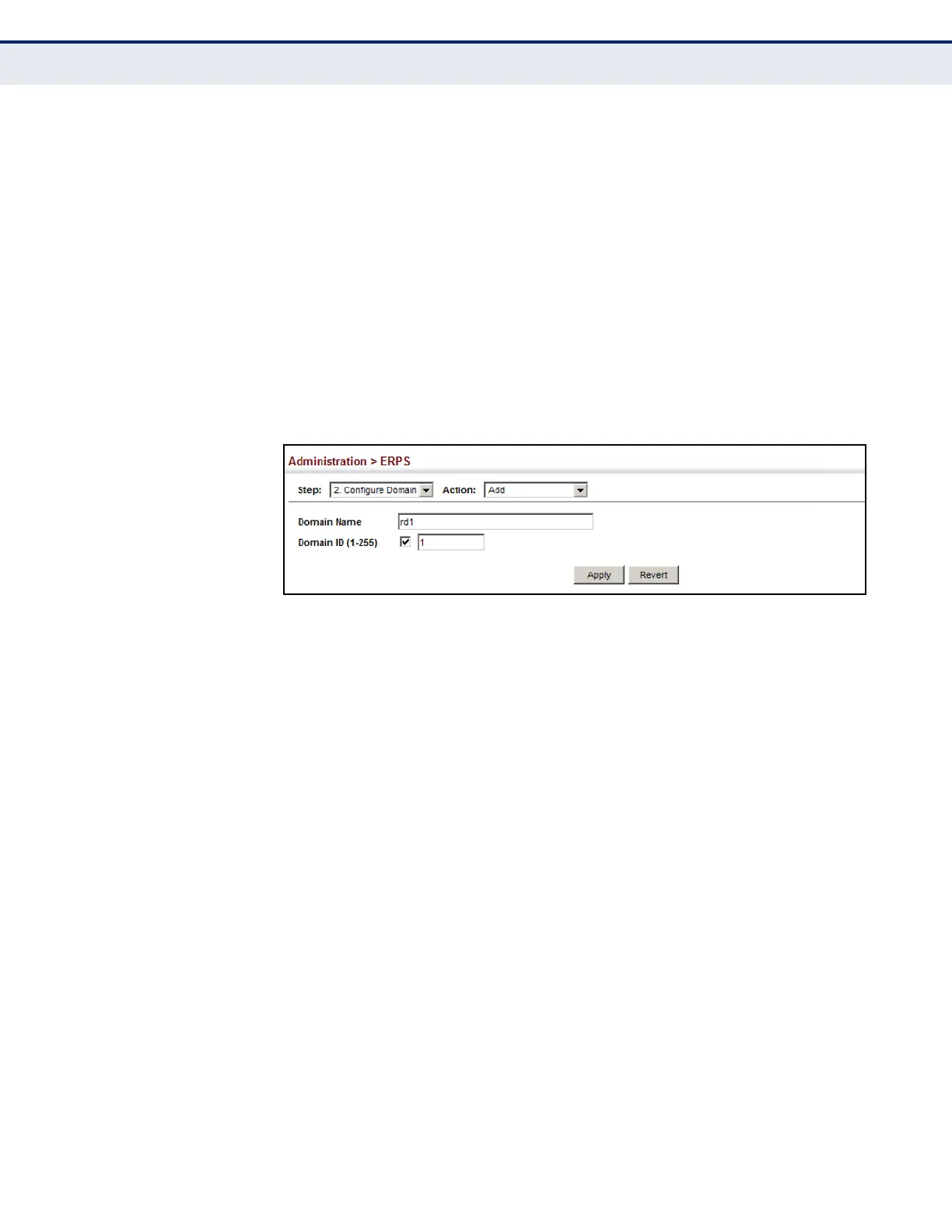

Figure 287: Creating an ERPS Ring
To configure the ERPS parameters for a ring:
1. Click Administration, ERPS.
2. Select Configure Domain from the Step list.
3. Select Configure Details from the Action list.
4. Configure the ERPS parameters for this node. Note that spanning tree
protocol cannot be configured on the ring ports, nor can these ports be
members of a static or dynamic trunk. And the control VLAN must be
unique for each ring. Adjust the protocol timers as required. The RPL
owner must be set on one of the rings. And the administrative status
enabled once all of the other settings have been entered.
5. Click Apply.
