C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 523 –
WEB INTERFACE
To create a maintenance domain:
1. Click Administration, CFM.
2. Select Configure MD from the Step list.
3. Select Add from the Action list.
4. Specify the maintenance domains and authorized maintenance levels
(thereby setting the hierarchical relationship with other domains).
5. Specify the manner in which MIPs can be created within each domain.
6. Click Apply.

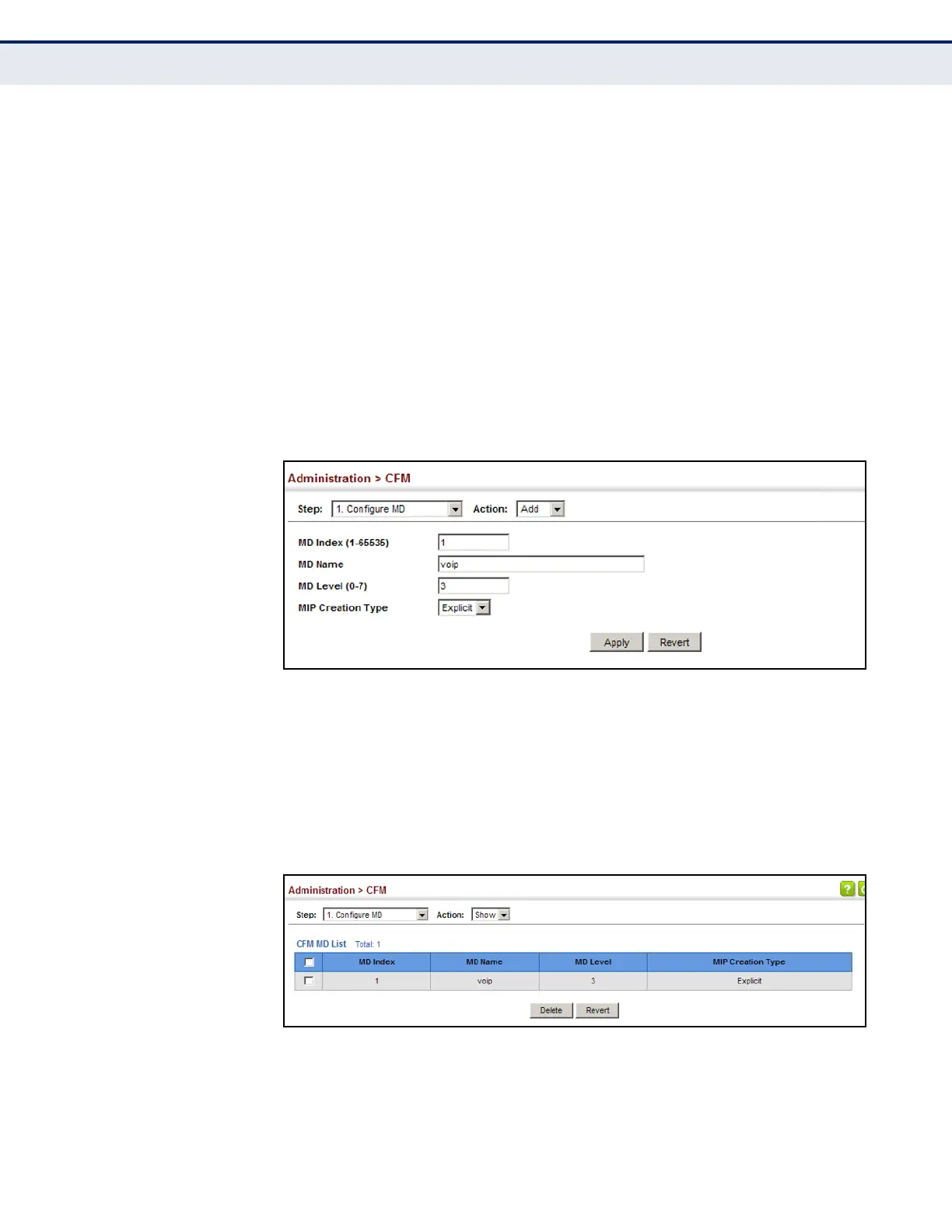

Figure 295: Configuring Maintenance Domains
To show the configured maintenance domains:
1. Click Administration, CFM.
2. Select Configure MD from the Step list.
3. Select Show from the Action list.
Figure 296: Showing Maintenance Domains
