M588-08-880 Issue D
Page 104 © Edwards Limited 2017. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Digital pressure measurements

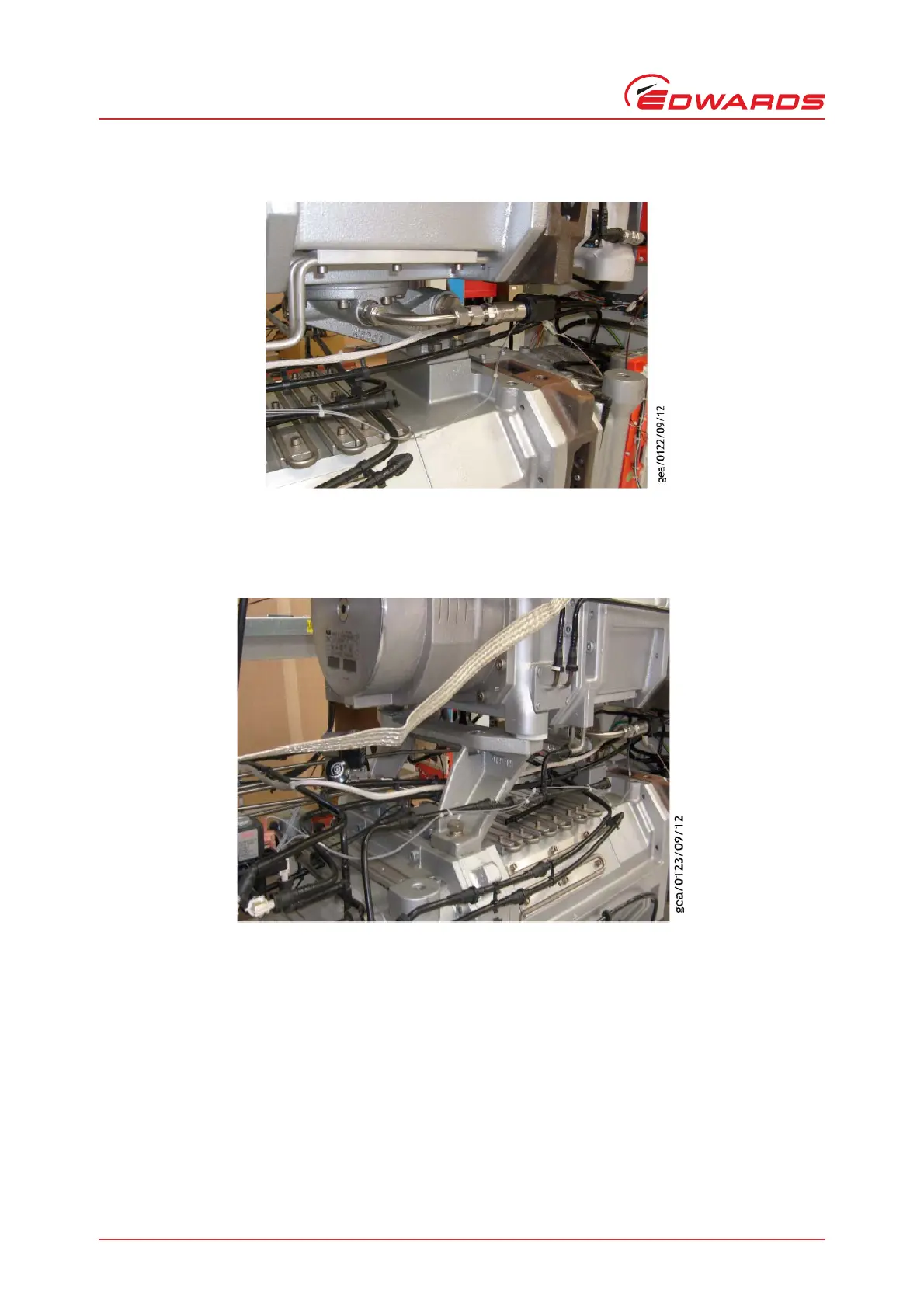

Figure 81 - Internal position of pressure transducer
7. Route the cable inside the GXS enclosure as shown in Figure 82. Use the cable ties to attach the cable to the
water pipes.
Figure 82 - Correct routing of the accessory cable
