Exhaust silencer mounting assembly

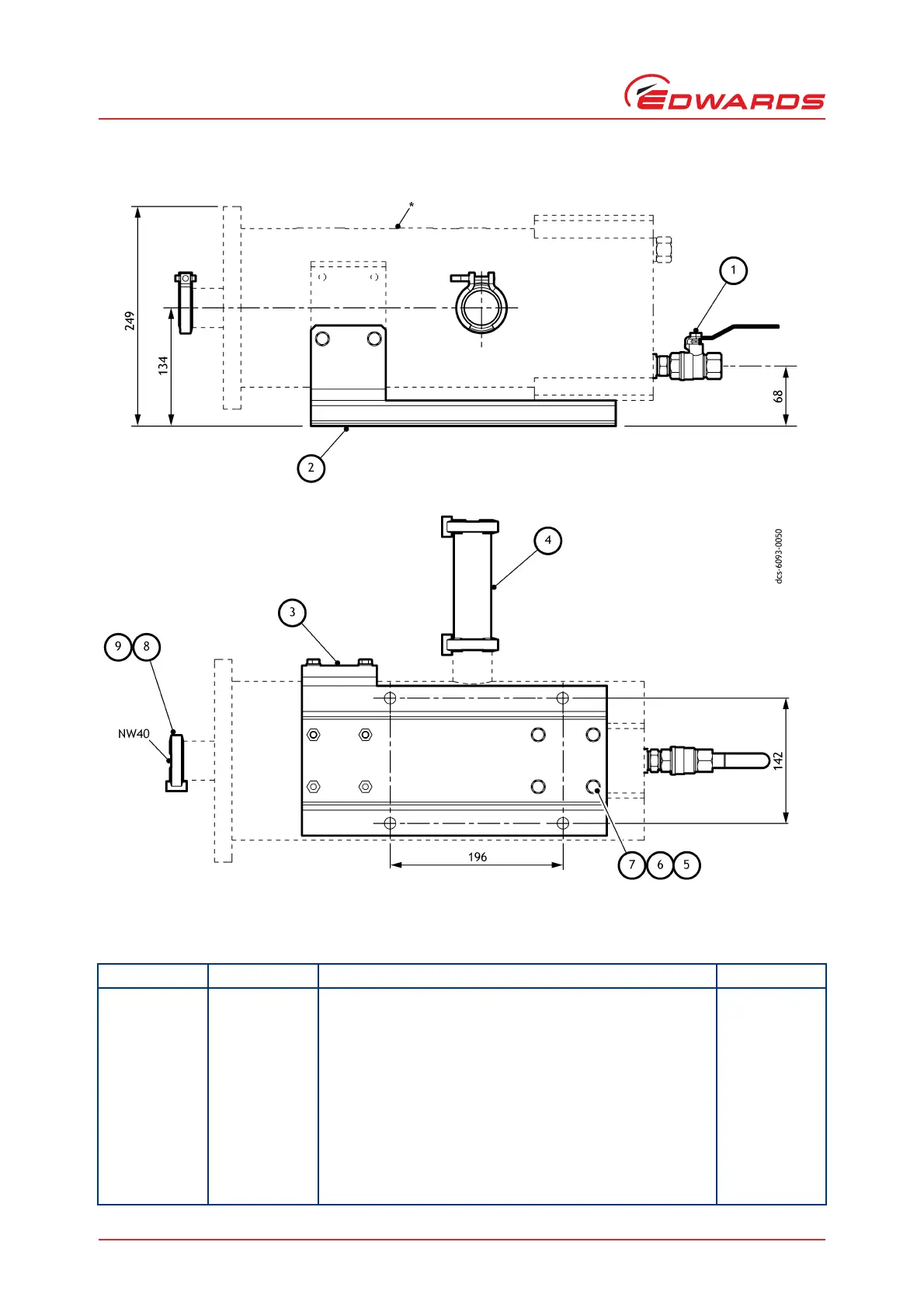

Figure 53 - M58808151 rear silencer horizontal mount - 100 ctr
* Silencer supplied separately.
Table 52 - M58808151 rear silencer horizontal mount - 100 ctr check list
Item QTY Description Check
1 1 Drain valve assembly 
2 1 Silencer support - horizontal rear 100 ctr 
3 1 Silencer support side bracket - horizontal rear 100 ctr 
4 1 NW40 full nipple - stainless steel 
5 4 M8 spring washer - stainless steel 
6 8 M8 washer normal - stainless steel 
7 8 M8 x 20 hex head screw - stainless steel 
8 3 NW32/40 clamping ring 
9 3 NW40 trapped O-ring - Viton 9830 / PTFE 
