Comm Setup

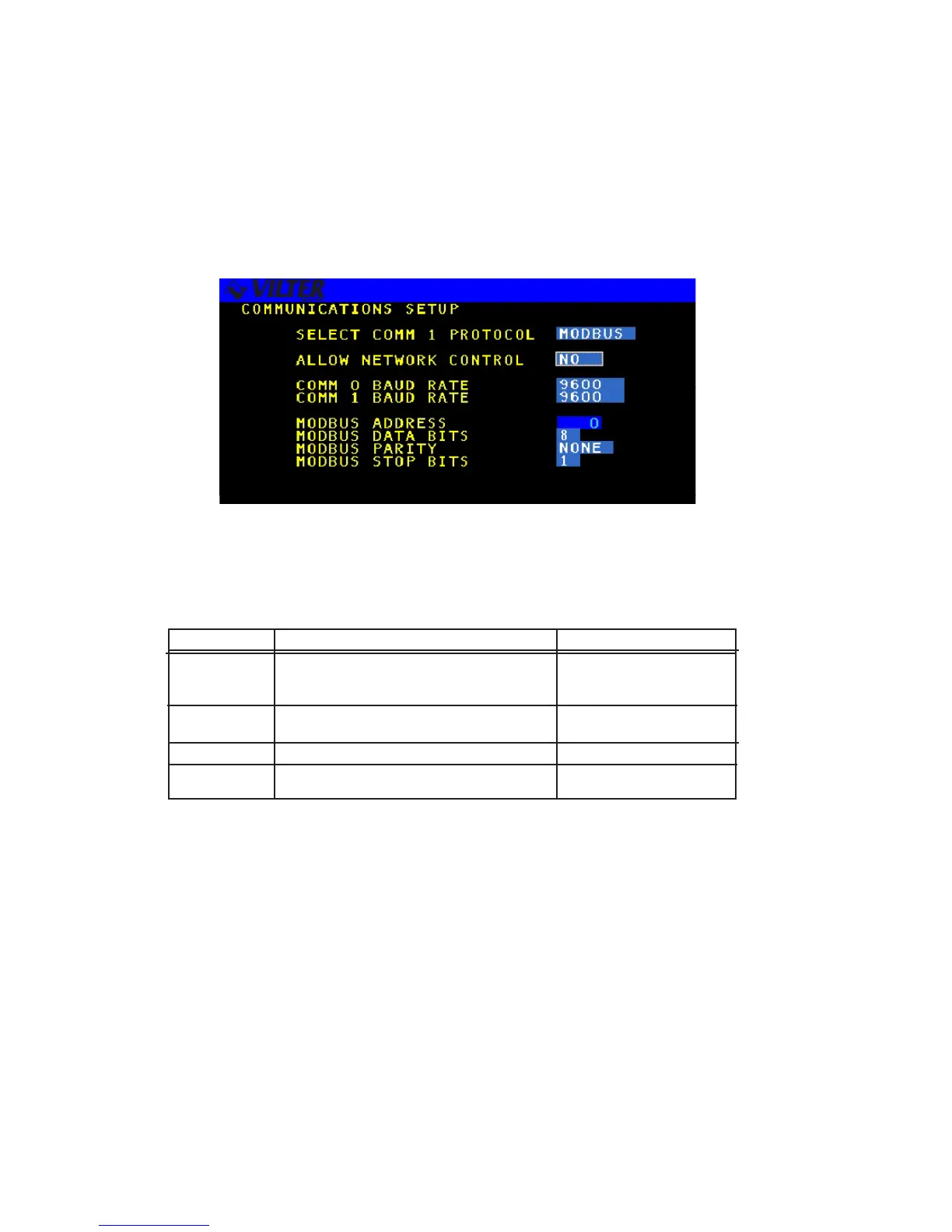

The following screen is a sample COMMUNICATIONS SET-UP screen for Modbus Commu-
nications.
The following table list the data entry fields and a description of their purpose.
TERM DEFINITION RANGE
BAUD RATE Selects the baud rate for Modbus 2400/4800/ 9600/ 19200
serial communications.
DATA BITS Selects the number of Databits used for 7/8
communications.
PARITY Sets the Parity used for communications. None/Odd/ Even
STOP BITS Sets the number of Stop Bits to be used 1/2
for communication.
Communications Screen
Communications Definitions
