152
Status Message Description
The status message is a read-only message containing analog, discrete, alarm and state data.
NOTE: Some data in the status message may not apply to your particular compressor, depending on
optional equipment and features.
The Status Message includes the following types of data:
• 16-bit analog input parameters from sensors
• 16-bit derived or computed parameters
• Discrete input and output data in packed bit format
• Alarm data in packed bit format
• Compressor mode and state data

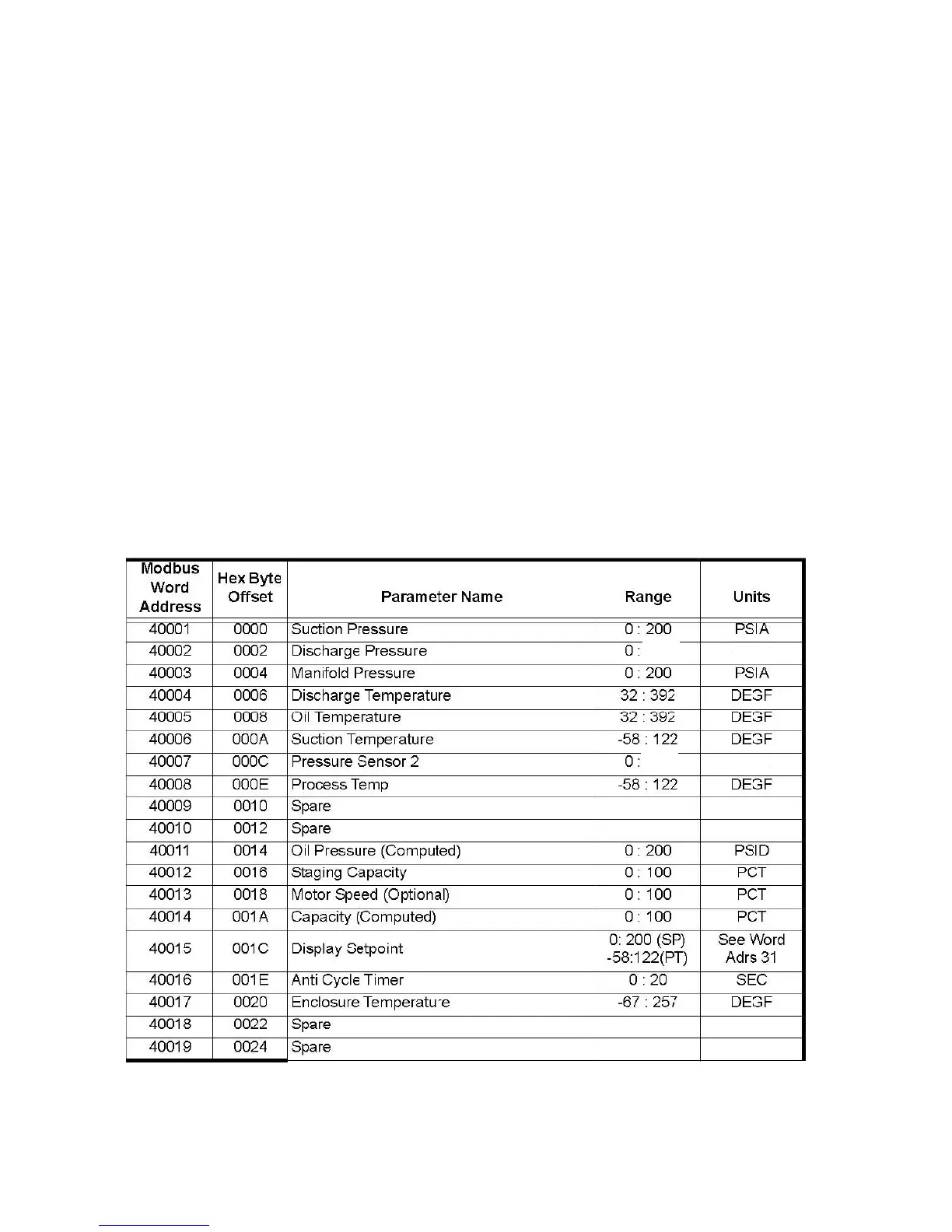

Analog Inputs and Computed Parameters
414.5
414.5
PSIA
PSIA
