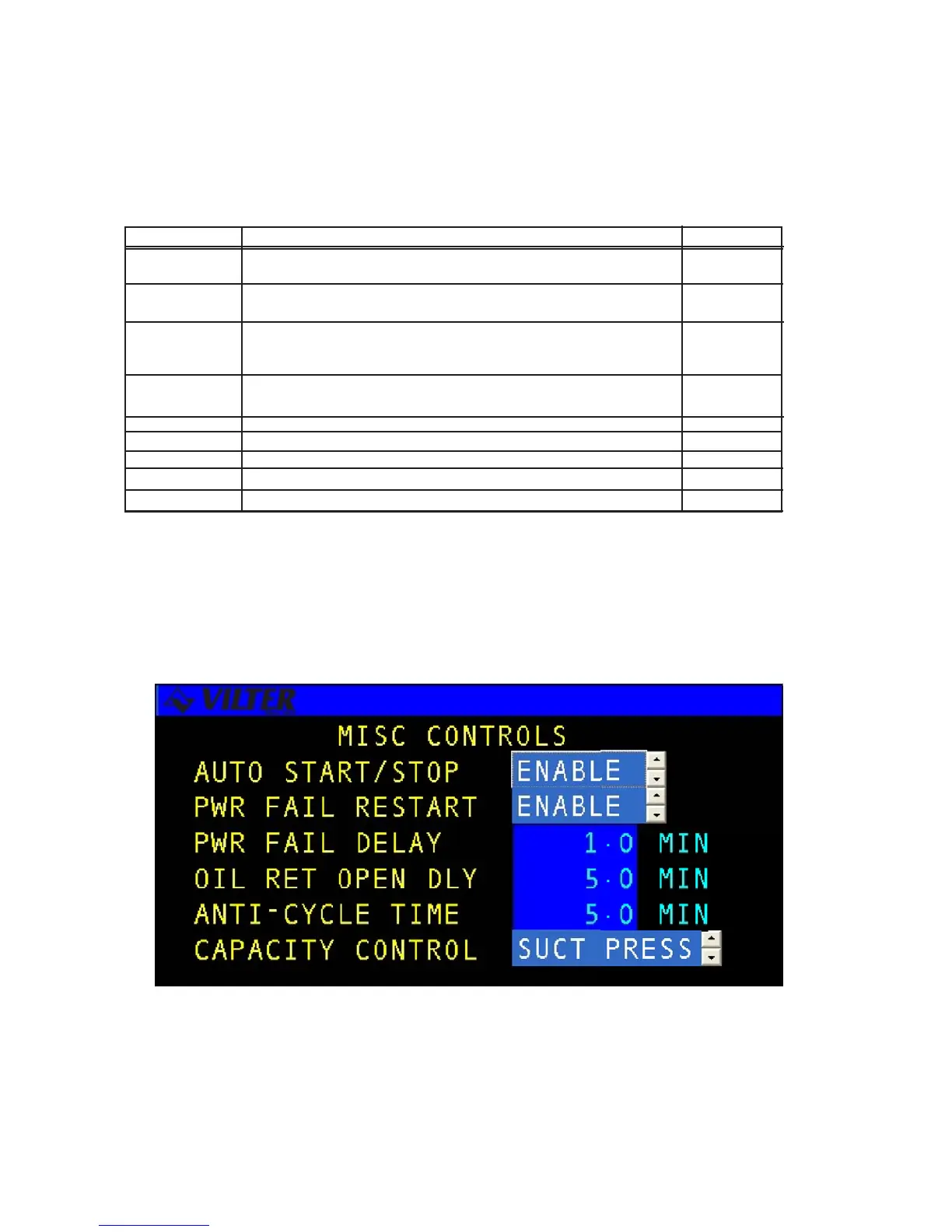

The following table lists the data entry and information fields on the screen and a description of their purposes.
TERM DEFINITION RANGE
NORMAL Adjusts the sensitivity of the time proportional control routine.
BANDWIDTH 0 - 20 DEG
CONTROL The capacity will not be adjusted if the Process Temperature is within
DEADBAND the control deadband. 0 - 20 DEG
NORMAL The Normal Stage Delay Timer starts when the Suction Pressure
STAGE DELAY exceeds the Control Deadband. When it expires, a stage will be added
or removed as appropriate 1 - 999 SEC
FAST STAGE The Fast Stage Delay Timer starts when the Suction
DELAY Pressure exceeds the Normal Bandwidth. 1 - 999 SEC
SETPOINT The current control setpoint group and value (reference). N/A
PROCESS TEMP The current Process Temperature value (reference) N/A
CAPACITY The current Capacity (reference) N/A
RECIP MODE The current compressor mode (reference). N/A
RECIP STATE The current compressor state (reference). N/A
MISC Control
The MISCELLANEOUS CONTROL screen provides setpoints and controls for various system parameters.
Process Temp Control Setpoints Definitions
Miscellaneous Control Screen
