Active Group

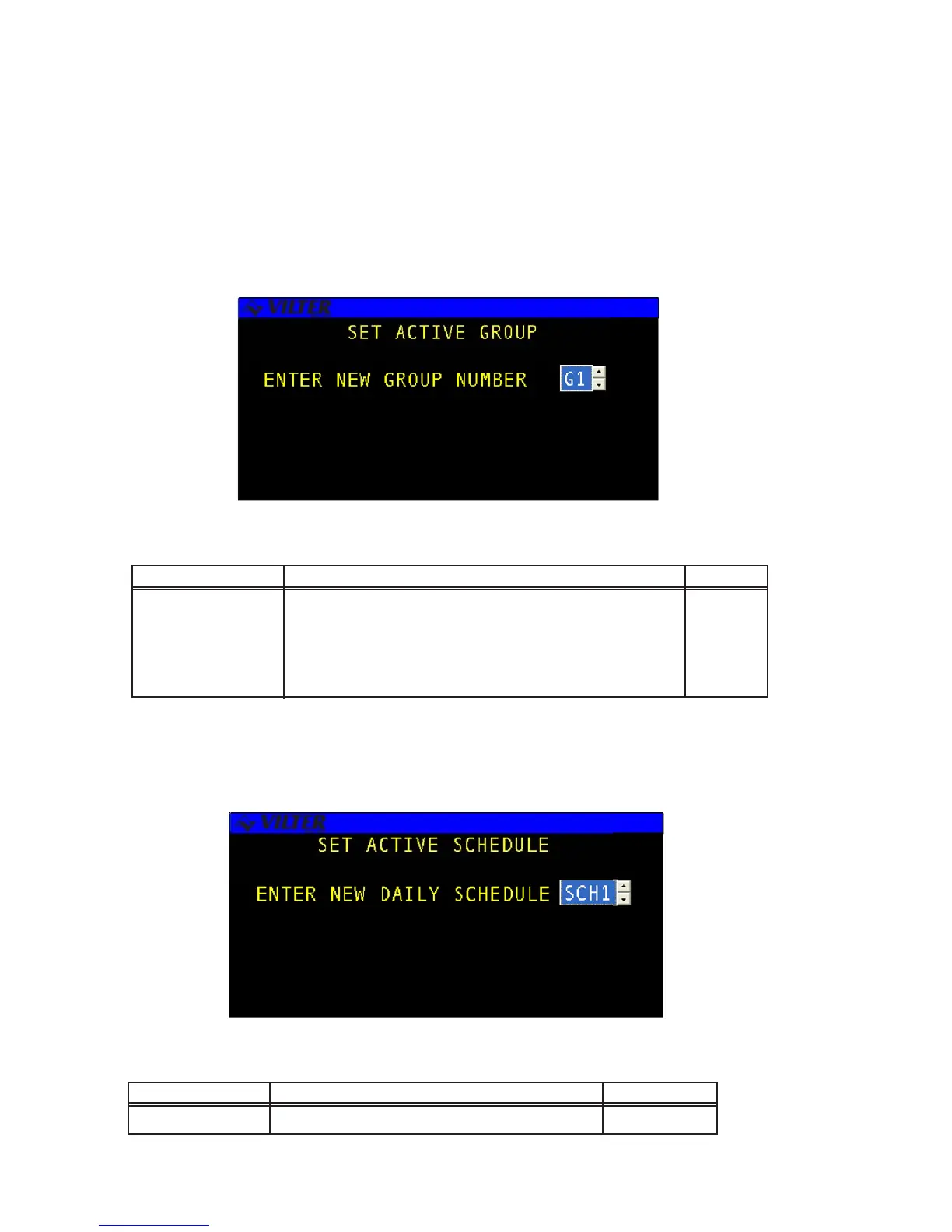

The ACTIVE GROUP screen allows the user to select the current active group. This setting will be active
until a scheduling change or the operator modifies it. An example of the screen is shown below.
The following table lists the data entry fields and a description of their purposes.
TERM DEFINITION RANGE
GROUP NUMBER The active suction pressure control group for the system.
If Suction Pressure control is enabled, G1G4 correspond to
Suction Pressure control groups S1-S4. If Process
Temperature control is enabled, G1-G4 correspond to Process
Temperature control groups P1-P4. G1-G4
Active Schedule
The ACTIVE SCHEDULE screen allows the user to change the current active daily schedule. This setting
will be active until a scheduling change or the user modifies it. An example of the screen is shown below.
The following table lists the data entry fields and a description of their purposes.
TERM DEFINITION RANGE
DAILY SCHEDULE The current daily schedule used by the system. SCH1 - SCH7
Active Group Screen
Active Group Definitions
Active Schedule Screen
Active Schedule Definitions
