ero electronic MKP - Current Transformer Input; Current Transformer Input Wiring

10
3) The minimum active period to perform this measurement is
equal to 120 ms.
4) The input impedance is equal to 20 Ω.
14
15
Load
Current
transformer
D) CURRENT TRANSFORMER INPUTD) CURRENT TRANSFORMER INPUT
D) CURRENT TRANSFORMER INPUTD) CURRENT TRANSFORMER INPUT
D) CURRENT TRANSFORMER INPUT

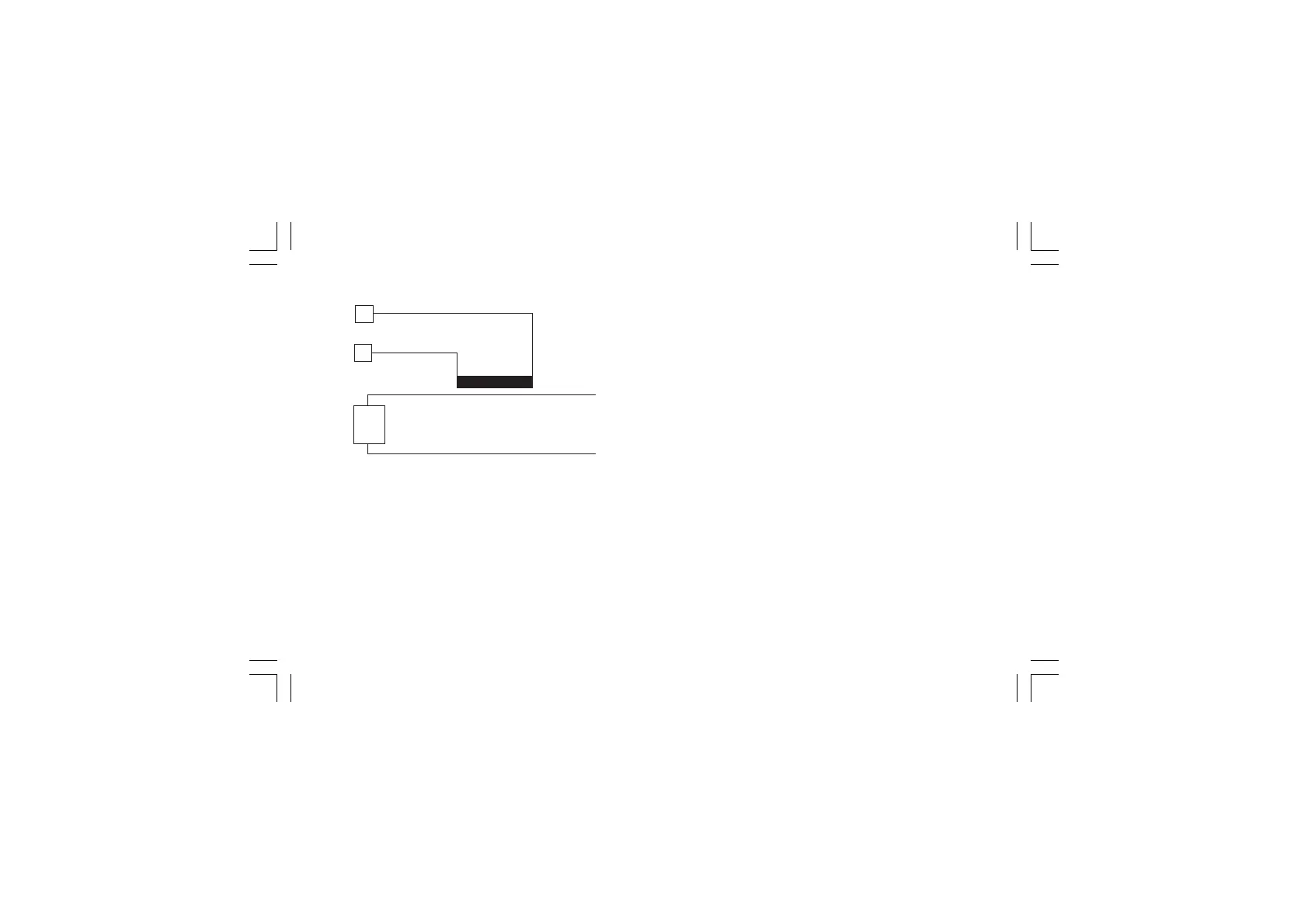

Fig. 10 CURRENT TRANSFORMER INPUT WIRING
This input allows you to measure and display the current
running in the load, driven by a time proportional control output,
during the ON and OFF periods of the output cycle time. By this
feature it is also available the "Output failure detection" function
(see page 110).
NOTESNOTES
NOTESNOTES
NOTES:
1) This input is
not isolated not isolated
not isolated not isolated
not isolated from measuring input.
2) Do not run current transformer input wiring together with AC
power cables.
