CONFIGURATION GROUP 6 [C.Ixx]CONFIGURATION GROUP 6 [C.Ixx]
CONFIGURATION GROUP 6 [C.Ixx]CONFIGURATION GROUP 6 [C.Ixx]
CONFIGURATION GROUP 6 [C.Ixx]
OTHER CONFIGURATION PARAMETERS

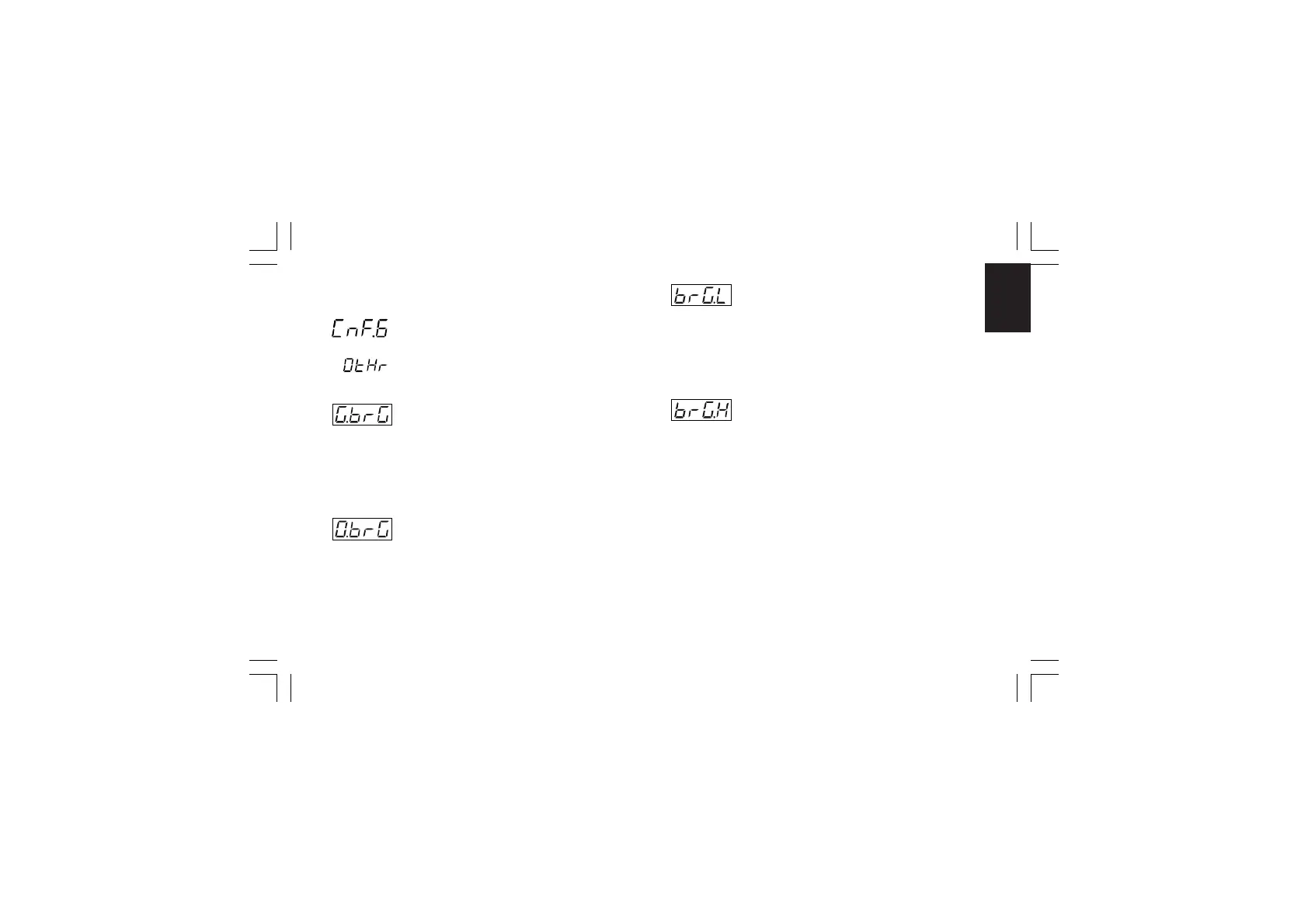

- Green bargraph function - [C.I01]- Green bargraph function - [C.I01]
- Green bargraph function - [C.I01]- Green bargraph function - [C.I01]
- Green bargraph function - [C.I01]
This parameter will be available for MKP models only.
Range:Pr.Ur =the green bargraph will show the process
variable value.
DEV. =the green bargraph will show the deviation
(measured value minus set point).
- Orange bargraph function - [C.I02]- Orange bargraph function - [C.I02]
- Orange bargraph function - [C.I02]- Orange bargraph function - [C.I02]
- Orange bargraph function - [C.I02]
This parameter will be available for MKP models only.
Range:OP.SP= On bargraph is shown the operative set point
value.
P.Out.= On bargraph is shown the process output
value.
- Bargraph initial scale value - [C.I03]- Bargraph initial scale value - [C.I03]
- Bargraph initial scale value - [C.I03]- Bargraph initial scale value - [C.I03]
- Bargraph initial scale value - [C.I03]
This parameter will be available only for MKP models when
“G.brG” [C.I01] is equal to “Pr.Ur” and/or “O.brG” [C.I02] is
equal to “OP.SP”.
Range: From “ñ.In.L” ("Read-out initial scale value" [C.d05]) to
“ñ.In.H” ("Read-out full scale value [C.d06])
- Bargraph full scale value - [C.I04]- Bargraph full scale value - [C.I04]
- Bargraph full scale value - [C.I04]- Bargraph full scale value - [C.I04]
- Bargraph full scale value - [C.I04]
This parameter will be available only for MKP models when
“G.brG” [C.I01] is equal to “Pr.Ur” and/or “O.brG” [C.I02] is
equal to “OP.SP”.
Range: From “ñ.In.L” ("Read-out initial scale value" [C.d05]) to
“ñ.In.H” ("Read-out full scale value [C.d06])
