Gr. 4Gr. 4

Gr. 4

- Hysteresis (for ON/OFF control) of the first- Hysteresis (for ON/OFF control) of the first

- Hysteresis (for ON/OFF control) of the first

PID group - [r.d10]PID group - [r.d10]

PID group - [r.d10]

This parameter is available when Pb [r.d01]=0 (On/OFF control

action) and the instrument is in programmer mode.

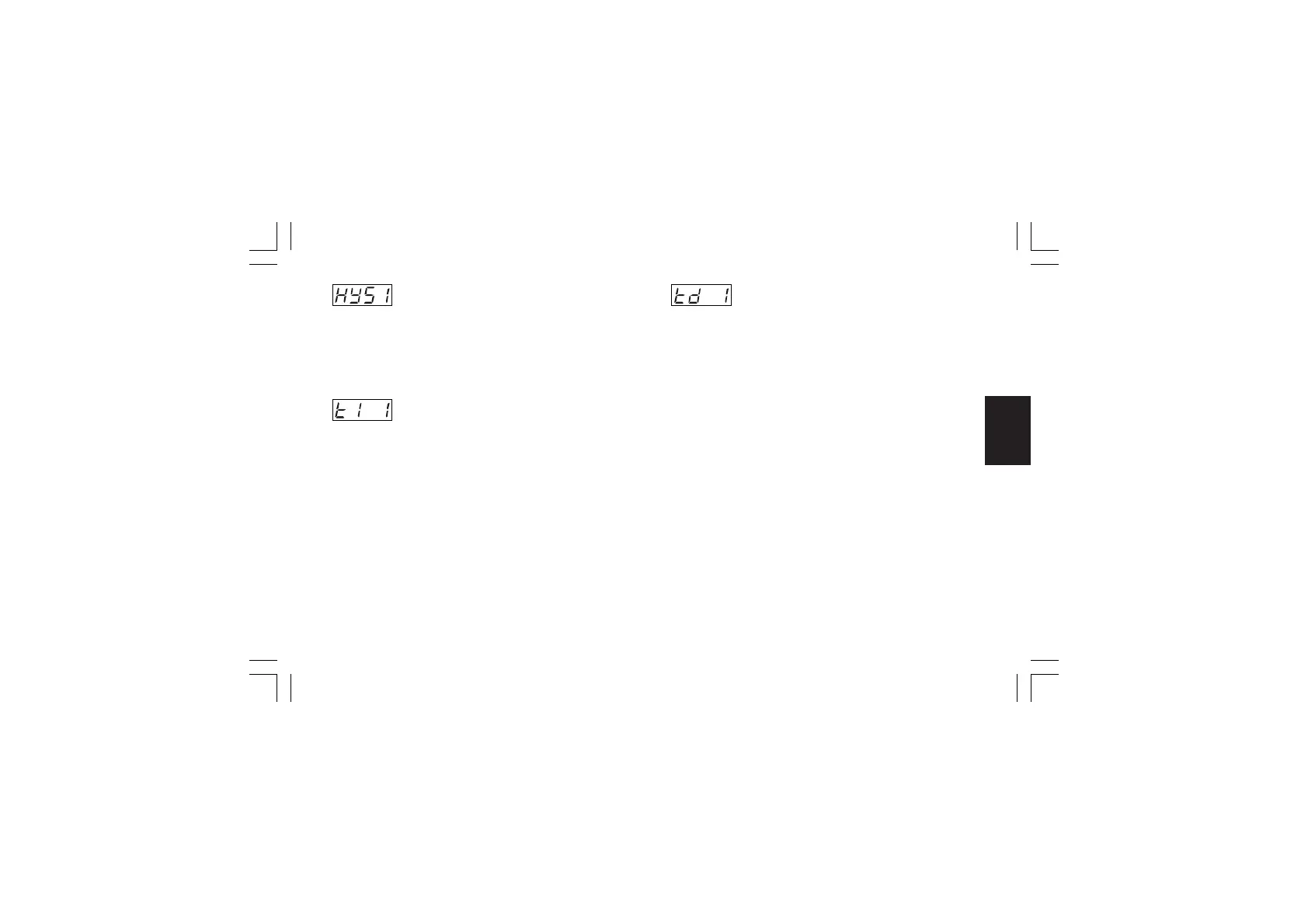

Lower display: HYS x where x is the number of the selected

PID group.

Range: from 0.1% to 10.0% of the input span.

- Integral time of the first PID group - [r.d11]- Integral time of the first PID group - [r.d11]

- Integral time of the first PID group - [r.d11]

This parameter is available when at least one control output is

configured, Pb [r.d01] is different from 0 and the instrument is

in programmer mode..

Lower display: ti x where x is the number of the selected PID

group.

Range: from 00.01 to 20.00 mm.ss

Above this value the display blanks and the integral

action is excluded

NOTENOTE

NOTE: When device is working with SMART algorithm the “ti”

value will be limited as selected by “ti.Hi” [r.M04] and “ti.Lo”

[r.M03].

- Derivative time of the first PID group - [r.d12]- Derivative time of the first PID group - [r.d12]

- Derivative time of the first PID group - [r.d12]

This parameter is available when at least one control output is

configured, “Cn.tP” [C.G02] is equal to “Pid”, "Pb" [r.d01] is

different from 0 and the instrument is in programmer mode.

Lower display: td x where x is the number of the selected PID

group.

Range: From 00.00 to 10.00 mm.ss

NOTESNOTES

NOTES:

1) When device is working with SMART algorithm and “Cn.tP”

[C.G02] is equal to “Pid”, the “td” value will be equal to a

quarter of “ti” value.

2) When “Cn.tP” [C.G02] is equal to “Pi”, the derivative action is

excluded

XKP-1-D1.pmd 25/05/2006, 11.2881
