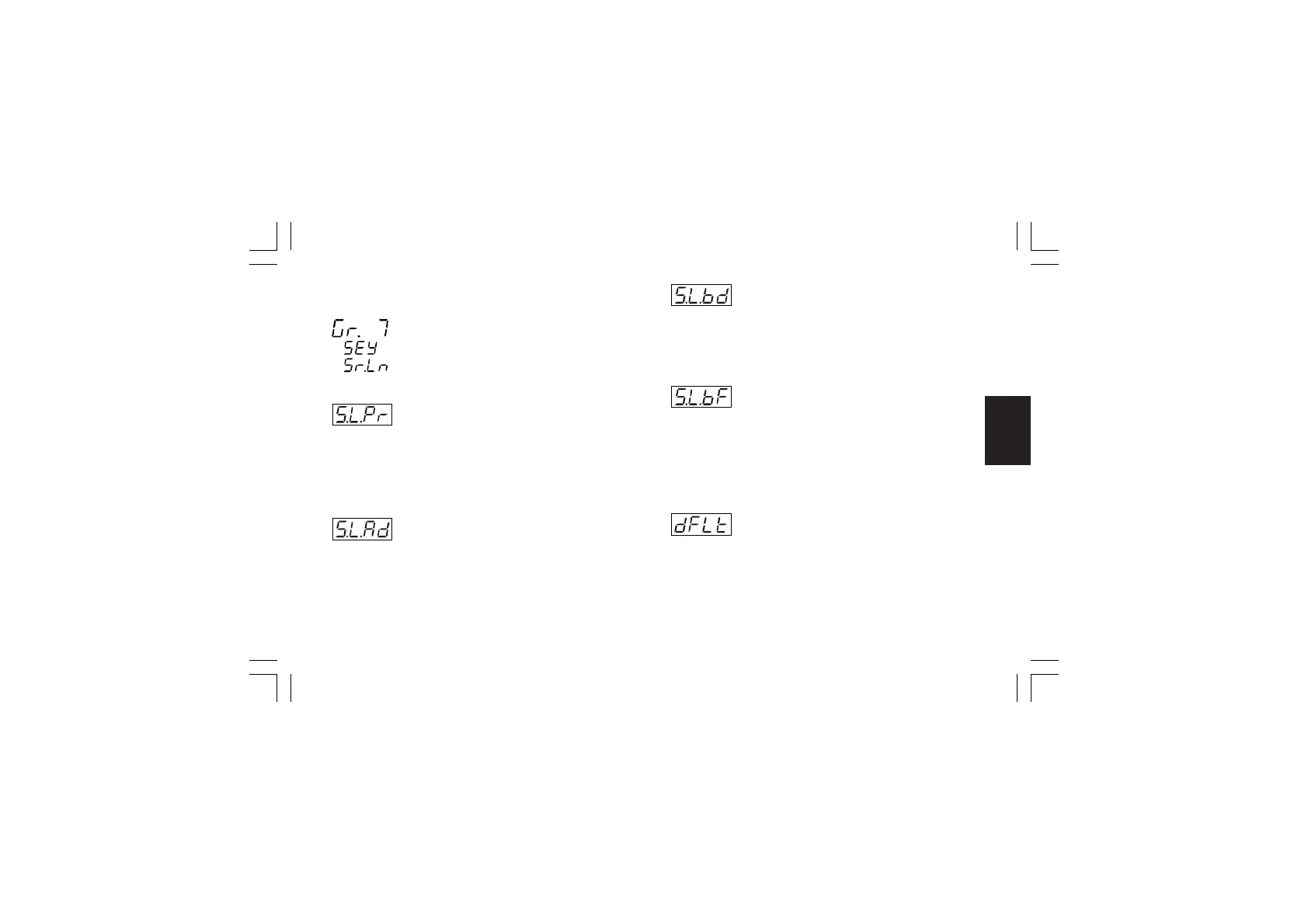

SERIAL LINK PARAMETER
- Serial interface protocol - [r.G01]- Serial interface protocol - [r.G01]
- Serial interface protocol - [r.G01]- Serial interface protocol - [r.G01]
- Serial interface protocol - [r.G01]
Range:OFF = No serial interface
ñbUS = Modbus
jbUS = Jbus
NOTENOTE
NOTENOTE
NOTE: When serial interface circuit is not mounted, the middle
display will show “no.Pr”
- Serial link device address - [r.G02]- Serial link device address - [r.G02]
- Serial link device address - [r.G02]- Serial link device address - [r.G02]
- Serial link device address - [r.G02]
This parameter is available only when “S.L.Pr” [r.G01] is
different from "OFF".
Range: from 1 to 255
- Serial link baud rate - [r.G03]- Serial link baud rate - [r.G03]
- Serial link baud rate - [r.G03]- Serial link baud rate - [r.G03]
- Serial link baud rate - [r.G03]
This parameter is available only when “S.L.Pr” [r.G01] is
different from "OFF".
Range: from 600 to 19200 baud (19200 baud is shown, on
display, as 19.20)
- Serial link byte format - [r.G04]- Serial link byte format - [r.G04]
- Serial link byte format - [r.G04]- Serial link byte format - [r.G04]
- Serial link byte format - [r.G04]
This parameter is available only when “S.L.Pr” [r.G01] is
different from "OFF".
Range:8 = 8 bits without parity
8E = 8 bits + even parity
8O = 8 bits + odd parity
- Group 7 default data loading - [r.G05]- Group 7 default data loading - [r.G05]
- Group 7 default data loading - [r.G05]- Group 7 default data loading - [r.G05]
- Group 7 default data loading - [r.G05]
Range: OFF = No loading data
ON = Loading data
