35
CnF. 1CnF. 1
CnF. 1CnF. 1
CnF. 1

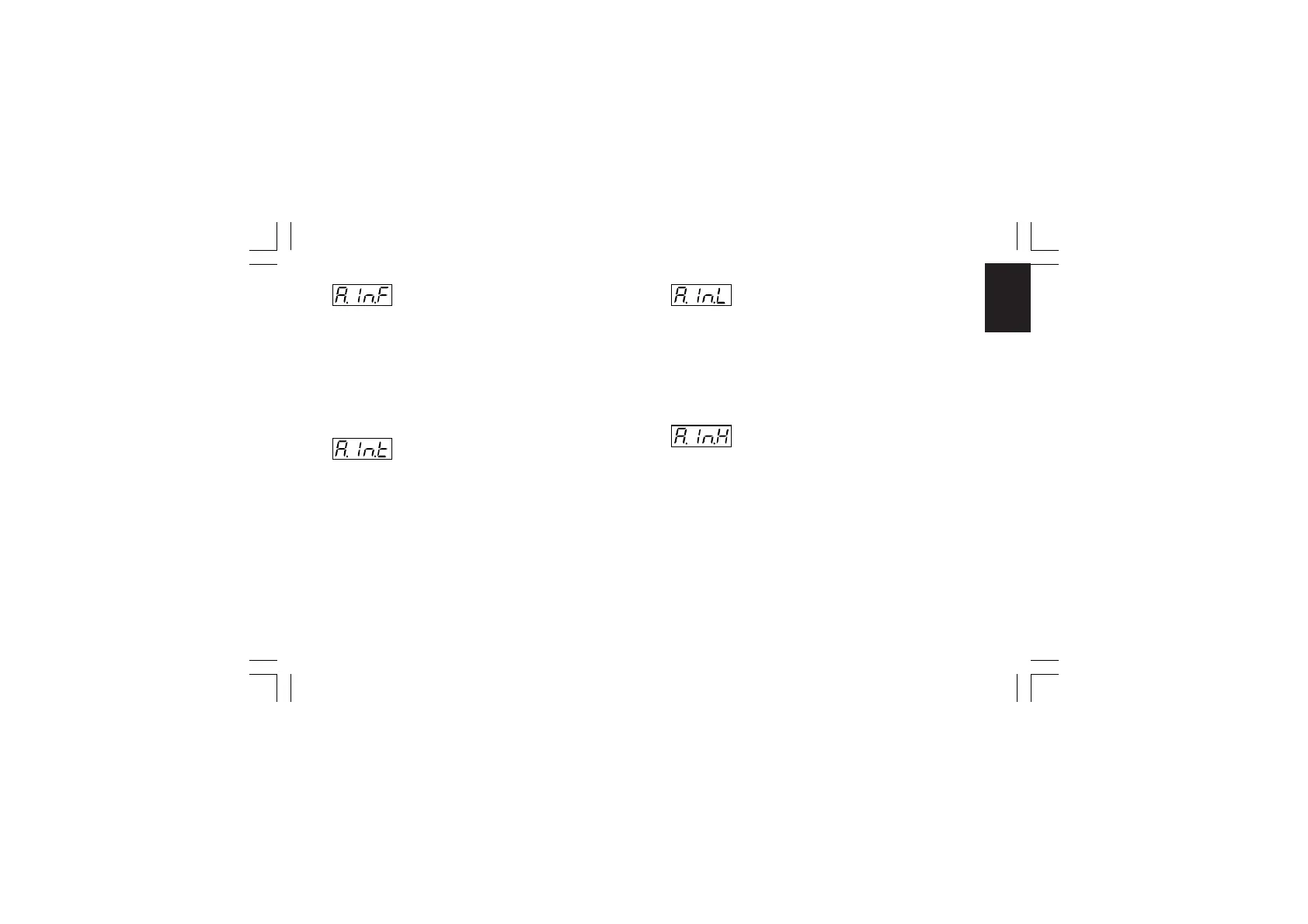

- Auxiliary input function - [C.d09]- Auxiliary input function - [C.d09]
- Auxiliary input function - [C.d09]- Auxiliary input function - [C.d09]
- Auxiliary input function - [C.d09]
Range: nonE = Input not used
bIAS = Input used as bias for local set point
NOTESNOTES
NOTESNOTES
NOTES:
1) When auxiliary input option is not mounted the middle
display will show “no.Pr” (not present).
2) When "bIAS" is selected, the instrument adds to the local set
point the value measured by the auxiliary input and scaled
by "A.In.L" [C.d11] and "A.In.H" [C.d12] parameters.
- Auxiliary input type- Auxiliary input type
- Auxiliary input type- Auxiliary input type
- Auxiliary input type
- [C.d10]- [C.d10]
- [C.d10]- [C.d10]
- [C.d10]
This parameter will be skipped when the auxiliary input option
is not mounted or "A.In.F" (auxiliary input function [C.d09]) is
equal to "nonE".
Range: 0-20 = 0−20 mA
4-20 = 4−20 mA
0- 5 = 0− 5 V
1- 5 = 1− 5 V
0-10 = 0−10 V
2-10 = 2−10 V
- Initial scale read-out of the auxiliary input- Initial scale read-out of the auxiliary input
- Initial scale read-out of the auxiliary input- Initial scale read-out of the auxiliary input
- Initial scale read-out of the auxiliary input
- [C.d11]- [C.d11]
- [C.d11]- [C.d11]
- [C.d11]
This parameter is available only when auxiliary input is
configured
Range: from -1999 to 9999
NOTENOTE
NOTENOTE
NOTE: the decimal point will be automatically positioned as
selected for the main input.
- Full scale read-out of the auxiliary input- Full scale read-out of the auxiliary input
- Full scale read-out of the auxiliary input- Full scale read-out of the auxiliary input
- Full scale read-out of the auxiliary input
- [C.d12]- [C.d12]
- [C.d12]- [C.d12]
- [C.d12]
This parameter is available only when auxiliary input is
configured.
Range: from -1999 to 9999
NOTENOTE
NOTENOTE
NOTE: the decimal point will be automatically positioned as
selected for the main input.
XKP-1-D1.pmd 25/05/2006, 11.2835
